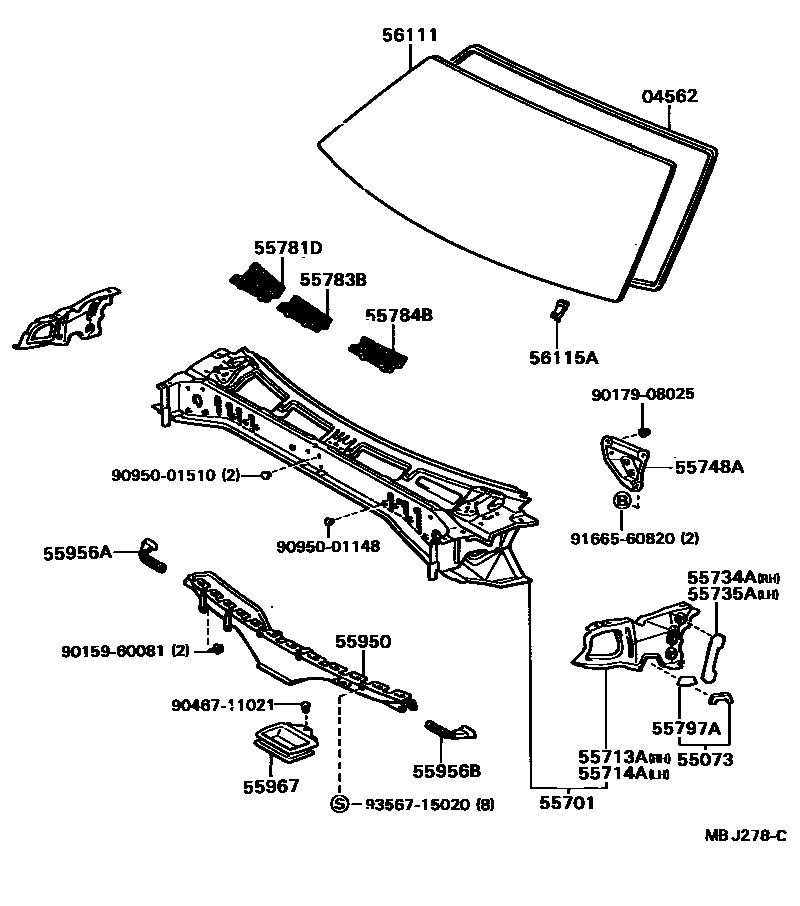

COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55701PANEL SUB-ASSY, COWL
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55734APLATE, WATER GUARD, RH
55735APLATE, WATER GUARD, LH
55748ABRACE, COWL TOP INNER TO PILLAR
55797ASEAL, COWL WATER EXTRACT
55950NOZZLE ASSY, DEFROSTER
55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2
55967NOZZLE, DEFROSTER, LOWER
9015960081
main90159-60081
9017908025
main90179-08025
9046711021
main90467-11021
9095001148
main90950-01148
9095001510
main90950-01510
9166560820
main91665-60820
9356715020
main93567-15020
25 parts on this diagram · 1 diagram in section
