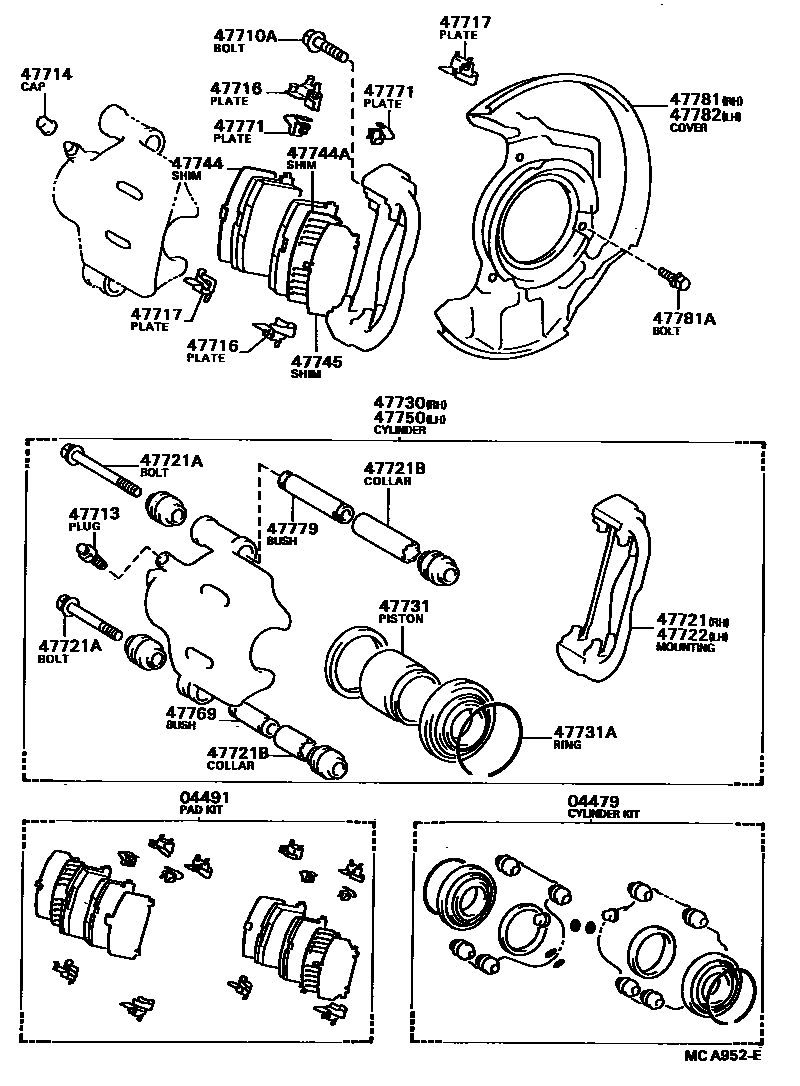

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20070iST160198508-198708

main04479-20080iAT160,ST162198508-198708

main04479-32030iST165198610-198708

04491PAD KIT, DISC BRAKE, FRONT

main04491-20180iST160198508-198708

sub04491-20181

main04491-20201iAT160,ST162198508-198612

sub04491-20202

main04491-20202iAT160,ST162198612-198708

sub04491-20203

main04491-20260iST165198610-198708

sub04491-20261

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAT160,ST16#198508-198708

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040iAT160,ST162198508-198708

main47547-20010iST160,165198508-198708

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAT160,ST16#198508-198708

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20050iST160198508-198708

sub47716-20111

main47716-32010iAT160,ST162198508-198708

sub47716-32031

main47716-32040iST165198610-198708

sub47716-32041

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20030iST160198508-198708

sub47717-20061

main47717-32010iAT160,ST162198508-198708

sub47717-32031

main47717-32040iST165198610-198708

sub47717-32041

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20090iST160198508-198708

main47721-20120iAT160,ST162198508-198708

main47721-20140iST165198610-198708

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iST160198508-198708

main90119-09004iST160198508-198708

main90119-09007iAT160,ST162198508-198708

main90119-09008iAT160,ST162198508-198708

main90119-10014iST165198610-198708

main90119-10249iST165198610-198708

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004iST160198508-198708

L=12

main90387-15005iST160198508-198708

L=32

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20090iST160198508-198708

main47721-20120iAT160,ST162198508-198708

main47721-20140iST165198610-198708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20190iST160198508-198708

main47730-20220iAT160,ST162198508-198708

main47730-20240iST165198610-198708

47731PISTON, FRONT DISC BRAKE

main47731-20090iST160198508-198708

main47731-20100iAT160,ST162198508-198708

main47731-32040iST165198610-198708

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iAT160,ST160,162198508-198708

main90522-66001iST165198610-198708

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20050iST160198508-198708

main47744-20060iAT160,ST162198508-198708

sub47744-32010

main47744-32040iST165198610-198708

sub47744-32041

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-17010iAT160,ST162198612-198708

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-20050iST160198508-198708

main47744-20060iAT160,ST162198508-198612

sub47744-32010

main47744-32040iST165198508-198708

sub47744-32041

main47745-17020iAT160,ST162198612-198708

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20180iST160198508-198708

main47750-20210iAT160,ST162198508-198708

main47750-20230iST165198610-198708

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-20010iST160198508-198708

main47769-32010iAT160,ST162198508-198708

main47769-40010iST165198610-198708

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-20030iST160198508-198708

sub47771-32010

main47771-32010iAT160,ST162,165198508-198708

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-20010iST160198508-198708

main47779-32010iAT160,ST162198508-198708

main47779-40010iST165198610-198708

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-32010iST165198610-198703

sub47703-32011

main47703-32011iST165198703-198708

sub47703-32040

main47781-20140iST160198508-198708

main47781-20150iAT160,ST162198508-198708

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iAT160,ST16#198508-198708

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-32010iST165198610-198703

sub47704-32011

main47704-32011iST165198703-198708

sub47704-32040

main47782-20140iST160198508-198708

main47782-20150iAT160,ST162198508-198708

24 parts on this diagram · 2 diagrams in section
