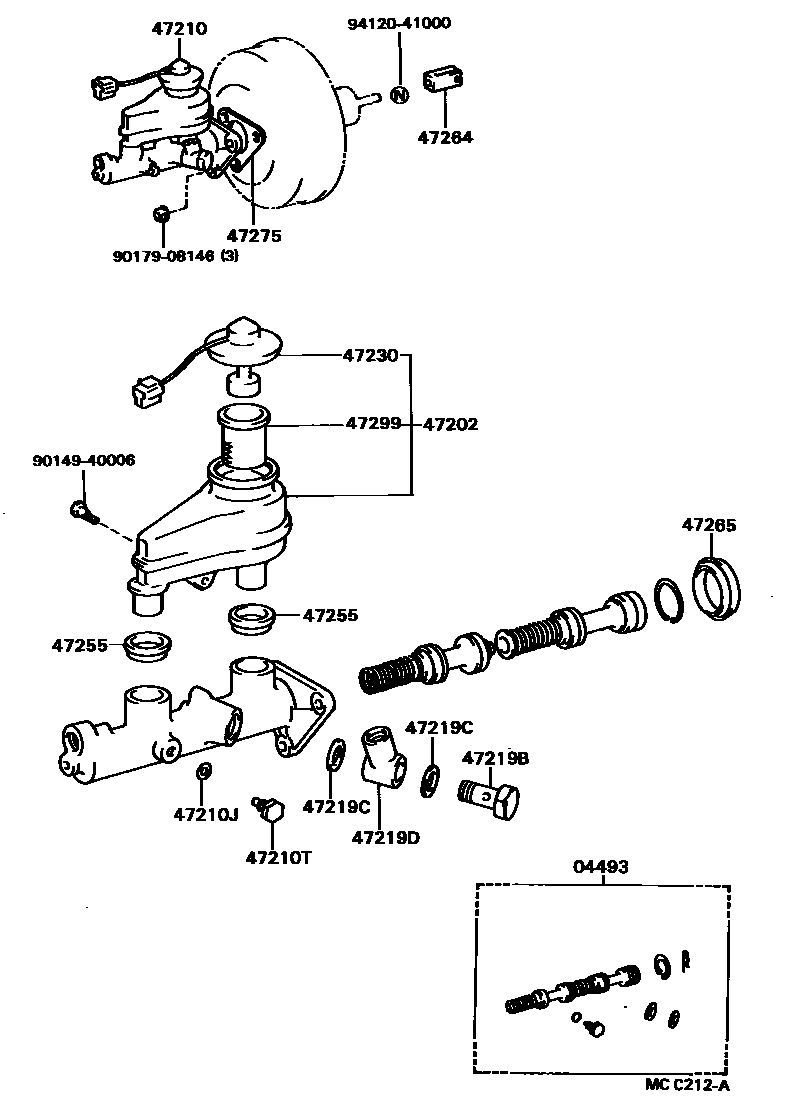

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-20130iAT160,ST160,162198508-198708

main04493-32040iST165198610-198708

sub04493-33030

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20270iAT160,ST160,162198508-198708

main47202-20320iST165198610-198708

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-20380iAT160,ST160,162198508-198708

main47201-20430iST165198610-198708

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAT160,ST16#198508-198708

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAT160,ST16#198508-198708

47219BBOLT, UNION(FOR FLUID OUTLET REAR SIDE)

main90401-10023iAT160,ST16#198508-198708

47219CGASKET(FOR FLUID OUTLET UNION BOLT REAR SIDE)

main90430-10074iAT160,ST16#198508-198708

47219DUNION(FOR FLUID OUTLET REAR SIDE)

main90405-10073iAT160,ST16#198508-198708

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12070iAT160,ST16#198508-198708

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iAT160,ST160,162198508-198708

main47255-16010iST165198610-198708

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iAT160,ST160,162198508-198708

main47264-20040iST165198610-198708

47265BOOT, MASTER CYLINDER

main47265-20050iAT160,ST16#198508-198708

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iAT160,ST16#198508-198708

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iAT160,ST16#198508-198708

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

17 parts on this diagram · 1 diagram in section
