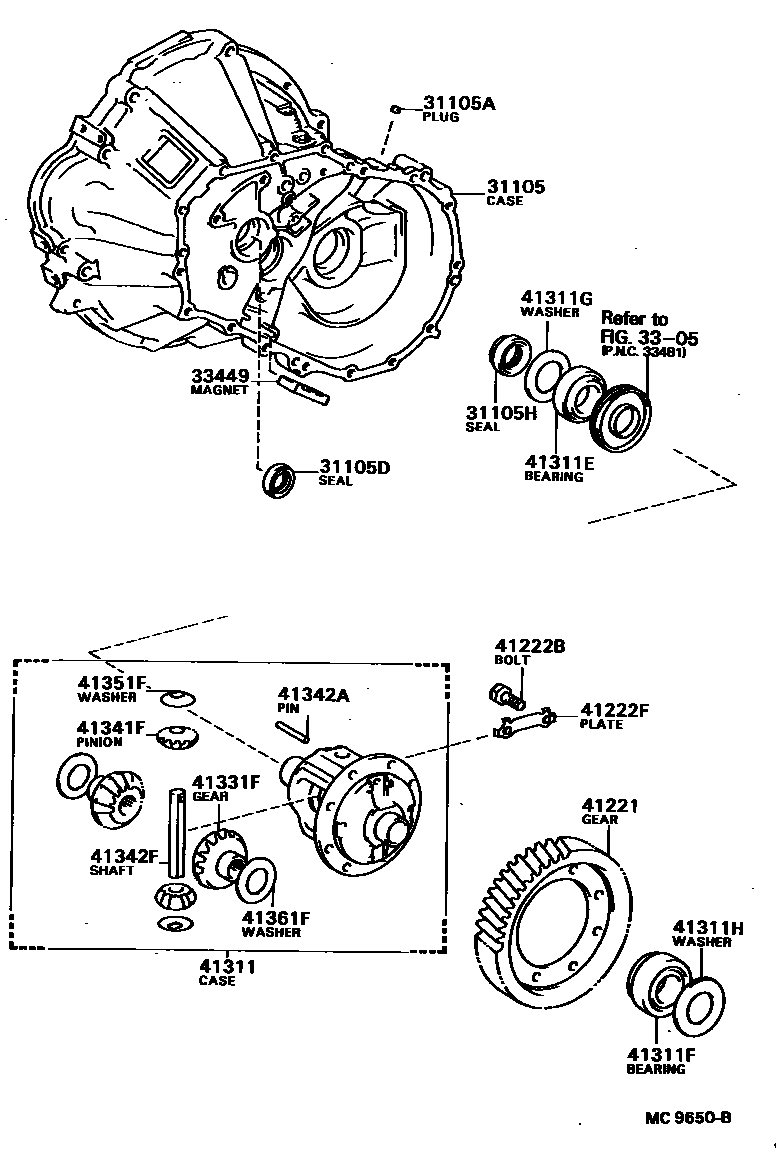

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-32013iST16#..5F198508-198601

sub31105-32040

sub11355-63021

sub11355-64032

sub11356-63030

sub11356-64010

sub91621-60610

sub91651-61022

main31105-32014iST160,162..5F198601-198708

sub31105-32051

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

main31115-12020iAT160..5F198508-198608

sub31115-12021

sub33134-12021

sub90560-48001

main31115-12021iAT160..5F198608-198701

sub31115-12040

sub11355-15060

sub11355-55012

sub11361-16020

sub16264-16011

sub16268-15050

sub16268-15060

sub16268-16070

sub16278-16060

sub16322-15030

sub16322-16011

sub90105-10051

sub91611-61025

main31115-12040iAT160..5F198701-198708

sub31115-16040

sub33125-12011

main31115-20011iST165198610-198703

sub31115-20012

main31115-20012iST165198703-198708

sub31115-20013

sub90407-16017

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iAT160..5F198508-198708

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iAT160..5F198508-198708

INPUT SHAFT

sub90311-25028

main90311-30002iST160,162..5F198508-198708

INPUT SHAFT

sub90311-30006

main90311-30006iST165198610-198708

sub90311-30017

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-34007iAT160..5F198508-198708

DRIVE SHAFT

sub90311-34016

main90311-35014iST160,162..5F198508-198708

DRIVE SHAFT

sub90311-35026

3305

33449MAGNET, TRANSMISSION

main33449-12010iAT160..5F198508-198708

sub33449-12020

main33449-20010iST165198610-198708

main33449-32010iST160,162..5F198508-198708

sub33449-32020

41221GEAR, FRONT DIFFERENTIAL RING

main41221-17010iAT160..5F198508-198708

sub41221-12340

main41221-20220iST162..5F198508-198708

main41221-20230iAT160..4FC198508-198708

main41221-20240iST165198610-198708

main41221-32030iST160198508-198708

main41221-32040iST162..4FC198508-198708

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iST160,162198508-198708

main90101-11353iAT160198508-198708

main90105-12134iST165198610-198708

sub90105-12150

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-12040iAT160..5F198508-198708

main41222-12050iAT160..4FC198508-198708

main41222-32010iST160,162198508-198708

41311CASE, FRONT DIFFERENTIAL

main41301-12040iAT160..5F198508-198708

sub41301-12041

sub90105-11040

main41301-12060iAT160..4FC198508-198603

sub41301-12090

main41301-12090iAT160..4FC198603-198608

sub41301-17020

main41301-17020iAT160..4FC198608-198708

sub41301-17021

main41301-32010iST160,162..5F198508-198708

sub41301-32060

sub33481-32060

sub33481-32070

main41301-32020iST160,162..4FC198508-198708

sub41301-32H00

sub90564-49001

sub90564-49002

sub90564-49003

sub90564-49004

sub90564-49005

sub90564-49006

sub90564-49007

sub90564-49008

sub90564-49009

sub90564-49010

sub90564-49011

sub90564-49012

sub90564-49013

sub90564-49014

sub90564-49015

sub90564-49016

sub90564-49017

sub90564-49018

sub90564-49019

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iAT160198608-198708

main90366-40016iST160,162198508-198708

main90366-57001iST165198610-198708

main90368-38006iAT160198508-198608

sub90368-38002

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40023iST160,162..5F198508-198708

sub90366-40064

main90366-44001iST160,162..4FC198508-198708

main90366-50014iST165198610-198708

main90368-38010iAT160198508-198708

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41010iAT160..4FC198508-198708

main90201-41045iAT160..5F198508-198708

sub90201-41012

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41024iAT160..4FC198508-198708

main90201-41025iAT160..4FC198508-198708

main90201-41026iAT160..4FC198508-198708

main90201-41027iAT160..4FC198508-198708

main90201-41028iAT160..4FC198508-198708

main90201-41029iAT160..4FC198508-198708

main90201-41030iAT160..4FC198508-198708

main90201-41031iAT160..4FC198508-198708

main90201-41032iAT160..4FC198508-198708

main90201-41033iAT160..4FC198508-198708

main90201-41034iAT160..4FC198508-198708

main90201-41035iAT160..4FC198508-198708

main90201-41036iAT160..4FC198508-198708

main90201-41039iAT160..4FC198508-198708

main90201-41040iAT160..4FC198508-198708

main90201-41041iAT160..4FC198508-198708

main90201-41042iAT160..4FC198508-198708

main90201-41043iAT160..4FC198508-198708

main90201-41044iAT160..4FC198508-198708

main90201-41046iAT160..5F198508-198708

sub90564-41014

main90201-41047iAT160..5F198508-198708

sub90564-41015

main90201-41048iAT160..5F198508-198708

sub90564-41016

main90201-41049iAT160..5F198508-198708

sub90564-41017

main90201-41050iAT160..5F198508-198708

sub90564-41018

main90201-41051iAT160..5F198508-198708

sub90564-41019

main90201-41052iAT160..5F198508-198708

sub90564-41020

main90201-41053iAT160..5F198508-198708

sub90564-41021

main90201-41054iAT160..5F198508-198708

sub90564-41022

main90201-41055iAT160..5F198508-198708

sub90564-41023

main90201-41056iAT160..5F198508-198708

sub90564-41024

main90201-41057iAT160..5F198508-198708

sub90564-41025

main90201-41058iAT160..5F198508-198708

sub90564-41026

main90201-41059iAT160..5F198508-198708

sub90564-41027

main90201-41060iAT160..5F198508-198708

sub90564-41028

main90201-41061iAT160..5F198508-198708

sub90564-41029

main90201-41062iAT160..5F198508-198708

sub90564-41030

main90201-41063iAT160..5F198508-198708

sub90564-41031

main90201-41064iAT160..5F198508-198708

sub90564-41032

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011iAT160198508-198708

main41331-20020iST165198610-198708

main41331-32010iST160,162198508-198708

41341FPINION, FRONT DIFFERENTIAL

main41341-12030iAT160198508-198708

main41341-30011iST160,162198508-198708

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-05028iST165198610-198708

main90250-06058iAT160,ST160,162198508-198708

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12020iAT160198508-198708

sub41342-12140

main41342-20040iST165198610-198708

main41342-39025iST160,162198508-198708

sub41342-32010

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12020iAT160198508-198708

main41351-32010iST160,162198508-198708

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010iAT160..4FC198608-198708

main41361-17020iAT160..4FC198608-198708

main41361-17030iAT160..4FC198608-198708

main41361-17040iAT160..4FC198608-198708

main41361-17050iAT160..4FC198608-198708

main41361-17060iAT160..4FC198608-198708

main41361-20020iST165198610-198708

sub41361-12330

main41361-20030iST165198610-198708

sub41361-12340

main41361-20040iST165198610-198708

sub41361-12350

main41361-20050iST165198610-198708

sub41361-12360

main41361-20060iST165198610-198708

sub41361-12370

main41361-20070iST165198610-198708

sub41361-12380

main41361-20080iST165198610-198708

sub41361-12390

main41361-20090iST165198610-198708

sub41361-12400

main41361-20100iST165198610-198708

sub41361-12410

main41361-20110iST165198610-198708

sub41361-12420

main41361-22020iAT160..5F198508-198708

main41361-22030iST160,162198508-198708

main41361-22040iST160,162198508-198708

main41361-22140iST160,162198508-198708

main41361-22150iAT160..5F198508-198708

main41361-22160iAT160..5F198508-198708
