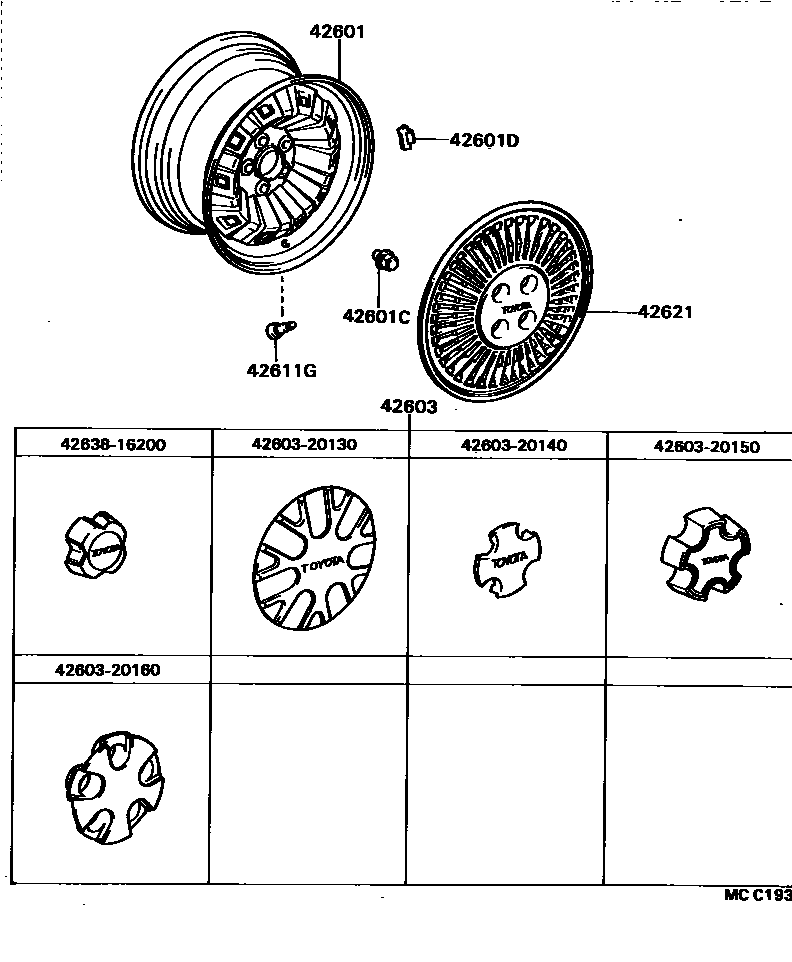

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-16170iST160..SV¥8,500198508-198708

sub42611-16171¥8,900

main42611-16200iST160¥6,700198508-198708

main42611-20300iST160..SX¥8,200198508-198708

main42611-20310iST160..ST¥8,100198508-198708

main42611-20320iST160..ST¥8,700198508-198708

main42611-20330iST160..ST,SX¥8,700198508-198708

main42611-20340iST160..SX¥29,300198508-198708

sub42611-20350¥29,300

main42611-20360iAT160,ST162¥11,200198508-198708

main42611-20370iAT160,ST162,165¥33,000198508-198708

main42611-20380iAT160,ST162,165¥8,200198508-198708

sub42611-20610¥8,200

main42611-20440iST165¥8,400198610-198708

42601CNUT, HUB (FOR AXLE)

main90942-01007iST160..ST¥230198508-198708

main90942-01021iAT160,ST162¥330198508-198708

main90942-01027iST160¥400198508-198610

BLACK

main90942-01033iAT160,ST162,165¥430198508-198708

W/ALUMI WHEEL

main90942-01045iST160..SX¥680198508-198612

W/ALUMI WHEEL

sub90942-01060¥680

main90942-01059iST160¥680198610-198708

BLACK

main90942-01060iST160..SX¥680198612-198708

W/ALUMI WHEEL

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iAT160,ST160,162¥110198508-198708

main90942-03020iAT160,ST160,162¥120198508-198708

main90942-03022iAT160,ST160,162¥160198508-198708

main90942-03025iAT160,ST160,162¥160198508-198708

main90942-03027iAT160,ST160,162¥280198508-198708

main90942-03029iAT160,ST160,162¥310198508-198708

main90942-03031iAT160,ST160,162¥320198508-198708

main90942-03041iAT160,ST160,162¥100198508-198708

main90942-03098iAT160,ST160,162¥110198508-198708

main90942-03099iAT160,ST160,162¥120198508-198708

main90942-03100iAT160,ST160,162¥130198508-198708

main90942-03101iAT160,ST160,162¥160198508-198708

main90942-03102iAT160,ST160,162¥280198508-198708

main90942-03108iAT160,ST160,162¥300198508-198708

main90942-03109iAT160,ST160,162¥310198508-198708

main90942-03146iAT160,ST16#..GT,GT4,SX¥200198508-198708

main90942-03147iAT160,ST16#..GT,GT4,SX¥210198508-198708

main90942-03148iAT160,ST16#..GT,GT4,SX¥210198508-198708

main90942-03149iAT160,ST16#..GT,GT4,SX¥220198508-198708

main90942-03150iAT160,ST16#..GT,GT4,SX¥220198508-198708

main90942-03151iAT160,ST16#..GT,GT4,SX¥230198508-198708

main90942-03152iAT160,ST16#..GT,GT4,SX¥230198508-198708

main90942-03153iAT160,ST16#..GT,GT4,SX¥240198508-198708

main90942-03154iAT160,ST16#..GT,GT4,SX¥240198508-198708

main90942-03155iAT160,ST16#..GT,GT4,SX¥440198508-198708

main90942-03156iAT160,ST16#..GT,GT4,SX¥440198508-198708

main90942-03157iAT160,ST16#..GT,GT4,SX¥470198508-198708

main90942-03158iAT160,ST16#..GT,GT4,SX¥470198508-198708

main90942-03159iAT160,ST16#..GT,GT4,SX¥480198508-198708

main90942-03160iAT160,ST16#..GT,GT4,SX¥480198508-198708

main90942-03161iAT160,ST160,162¥100198508-198708

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20130iST160..ST¥6,300198508-198708

main42603-20140iST160..SX¥1,820198508-198708

W/ALUMI WHEEL

main42603-20150iAT160,ST162¥4,620198508-198708

main42603-20160iAT160,ST162,165¥5,100198508-198708

W/ALUMI WHEEL

main42638-16200iST160..SV¥2,960198508-198708

sub42638-12290¥2,960

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAT160,ST16#¥390198508-198708

42621CAP, WHEEL

main42621-20240iST160..ST,SX¥8,100198508-198708

sub42621-20290¥6,600

4260320130ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20130¥6,300

4260320140ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20140¥1,820

4260320150ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20150¥4,620

4260320160ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20160¥5,100

4263816200

main42638-16200¥2,960

11 parts on this diagram · 2 diagrams in section
