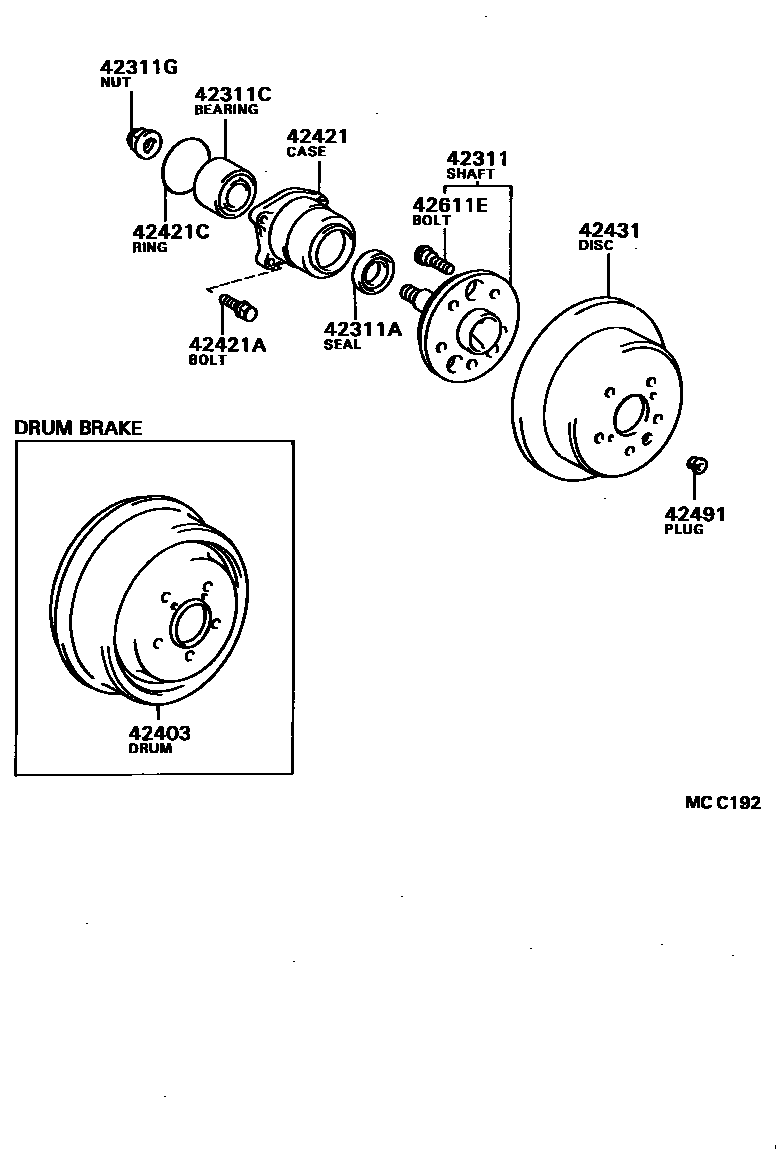

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311SHAFT, REAR AXLE

main42301-20050iST160198508-198708

sub42301-20080

main42301-20060iAT160,ST162198508-198708

sub42301-32031

main42301-20070iST165198610-198708

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42006iAT160,ST16#198508-198511

sub90311-42018

main90311-42018iAT160,ST160,162198511-198708

main90311-56007iST165198610-198708

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iAT160,ST160,162198508-198708

main90369-38003iST165198610-198708

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19002iST165198610-198708

main90179-20003iAT160,ST160,162198508-198708

42403DRUM SUB-ASSY, REAR BRAKE

main42431-20080iST160198508-198708

42421CASE, REAR AXLE BEARING

main42421-20020iAT160,ST160,162198508-198708

sub42409-20010

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124iAT160,ST160,162198508-198708

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003iAT160,ST160,162198508-198708

sub90301-63006

42431DISC, REAR

main42431-20090iAT160,ST162198508-198708

sub42431-20160

main42431-20100iST165198610-198708

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iAT160,ST162,165198508-198708

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iAT160,ST16#198508-198708

11 parts on this diagram · 3 diagrams in section
