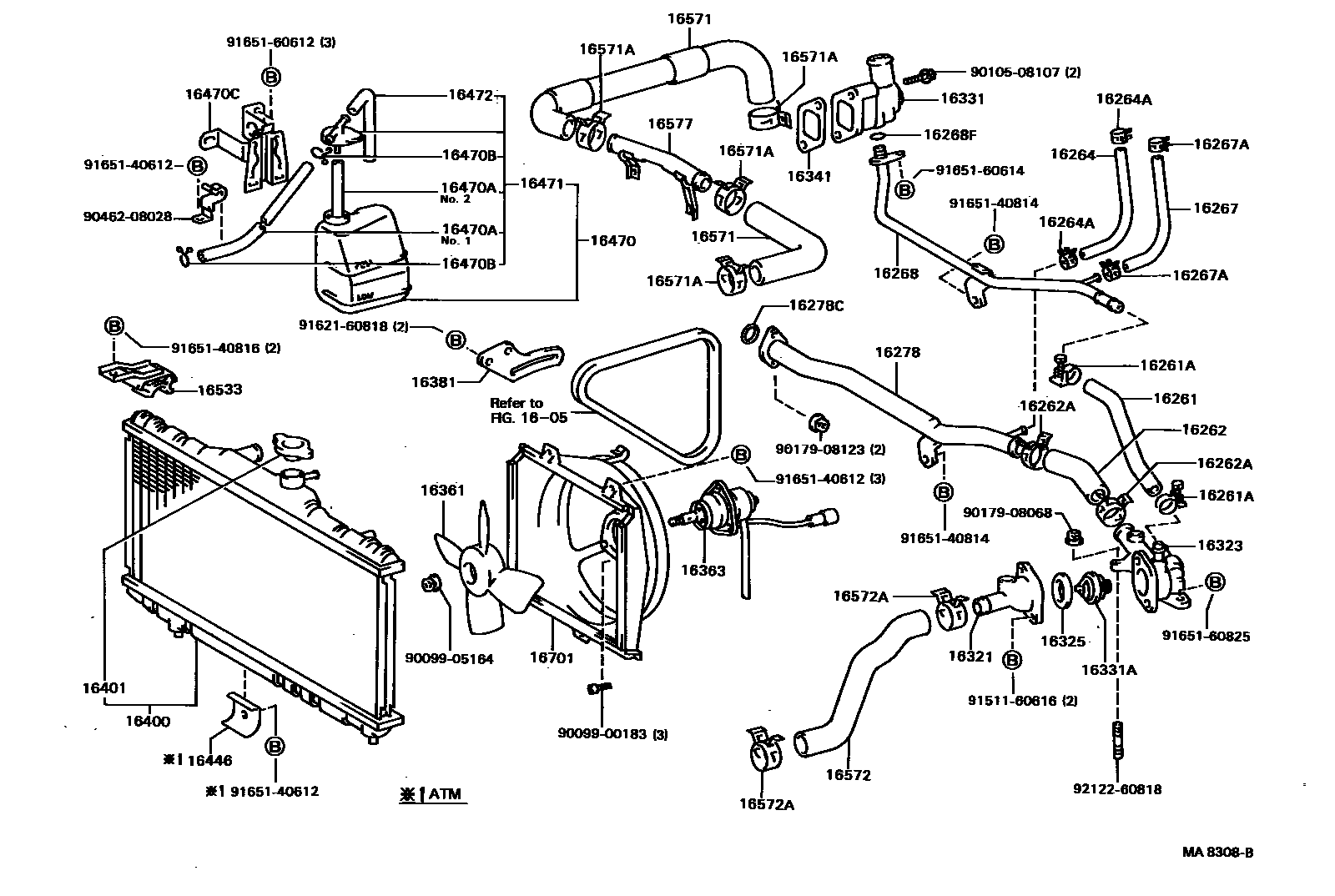

RADIATOR & WATER OUTLET
1605
16261HOSE, WATER BY-PASS
16262HOSE, WATER INLET
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51300
16268FRING, O(FOR WATER BY-PASS PIPE)
16278CRING, O(FOR WATER BY-PASS PIPE NO.2)
sub96761-24035
16321INLET, WATER
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
sub16381-16050
16401CAP SUB-ASSY, RADIATOR
16446INSULATOR, RADIATOR TANK
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
OUTLET SIDE
OUTLET SIDE
RADIATOR SIDE
16572HOSE, RADIATOR, OUTLET
16577PIPE, RADIATOR, NO.7
16701SHROUD SUB-ASSY, FAN
9009900183
main90099-00183
9009905164
main90099-05164
9010508107
main90105-08107
9017908068
main90179-08068
9017908123
main90179-08123
9046208028
main90462-08028
9151160616
main91511-60616
9162160818
main91621-60818
9165140612
main91651-40612
9165140814
main91651-40814
9165140816
main91651-40816
9165160612
main91651-60612
9165160614
main91651-60614
9165160825
main91651-60825
9212260818
main92122-60818
53 parts on this diagram · 6 diagrams in section
