13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-16020i198508-198708

sub13505-16021

main13505-63010i198508-198708

sub13505-63011

main13505-88360i198508-198708

sub13505-74030

13505ASPRING, TENSION(FOR IDLER)

main90506-18045i198508-198708

main90506-20039i198508-198708

main90507-20010i198508-198708

13505CPIN(FOR IDLER SPRING TENSION)

main90249-06006i198508-198708

13511CAMSHAFT

main13501-16010i198508-198708

main13501-63010i198508-198708

sub13501-63011

main13501-79015i198508-198708

main13501-88380i198610-198708

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05021i198508-198708

main90250-05121i198508-198708

13512CAMSHAFT, NO.2

main13502-16010i198508-198708

main13502-79015i198508-198708

main13502-88380i198610-198708

13523PPULLEY, CAMSHAFT TIMING

main13523-16010i198508-198708

main13523-63010i198508-198708

main13523-88360i198508-198708

sub13523-88301

13568BELT, TIMING

main13568-16010i198508-198708

sub13568-16020

main13568-63020i198508-198708

sub13568-63022

main13568-88361i198508-198708

sub13568-88381

main13568-88361i198708-198708

*54

sub13568-88381

main13568-88381i198610-198708

sub13568-88382

sub90506-18066

13711VALVE, INTAKE

main13711-16010i198508-198708

sub13711-16020

main13711-63010i198508-198708

main13711-88360i198508-198708

*53

sub13711-88361

main13711-88361i198508-198708

*54

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02057i198508-198708

sub90913-02094

main90913-02062i198508-198708

INTAKE SIDE

main90913-02066i198508-198708

EXHAUST SIDE

13711BSPRING, COMPRESSION(FOR INNER)

main90501-32016i198508-198708

*54

sub90501-32022

main90501-32022i198610-198708

main90501-33001i198508-198708

main90501-33003i198508-198708

*53

sub90501-32009

main90501-45014i198508-198708

13715VALVE, EXHAUST

main13715-16010i198508-198708

sub13715-16020

main13715-63011i198508-198708

main13715-88360i198508-198708

13734SEAT, VALVE SPRING

main13734-16010i198508-198708

main13734-88300i198508-198708

13741RETAINER, VALVE SPRING

main13741-16010i198508-198708

main13741-63010i198508-198708

main13741-88300i198508-198708

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i198508-198708

main90913-03021i198508-198708

13751LIFTER, VALVE

main13751-16010i198508-198708

main13751-88300i198610-198708

sub13751-16010

13753SHIM, VALVE ADJUSTING

main13753-16020i198508-198708

main13753-16040i198508-198708

main13753-16060i198508-198708

sub13753-16351

main13753-16080i198508-198708

sub13753-16371

main13753-16100i198508-198708

sub13753-16401

main13753-16120i198508-198708

sub13753-16421

main13753-16140i198508-198708

sub13753-16451

main13753-16160i198508-198708

sub13753-16471

main13753-16180i198508-198708

sub13753-16501

main13753-16200i198508-198708

sub13753-16521

main13753-16220i198508-198708

sub13753-16551

main13753-16240i198508-198708

sub13753-16571

main13753-16260i198508-198708

sub13753-16601

main13753-16280i198508-198708

sub13753-16621

main13753-16300i198508-198708

sub13753-16651

main13753-16320i198508-198708

main13753-16340i198508-198708

main90072-72760i198508-198708

sub13753-16660

main90072-72762i198508-198708

sub13753-16670

main90072-72764i198508-198708

sub13753-16680

main90072-72766i198508-198708

sub13753-16690

main90072-72768i198508-198708

sub13753-16700

main90072-72770i198508-198708

sub13753-16710

main90072-72772i198508-198708

sub13753-16720

main90072-72774i198508-198708

sub13753-16730

main90072-72776i198508-198708

sub13753-16740

main90072-72778i198508-198708

sub13753-16750

main90072-72780i198508-198708

sub13753-16020

main90072-72782i198508-198708

sub13753-16040

main90072-72784i198508-198708

sub13753-16060

main90072-72786i198508-198708

sub13753-16080

main90072-72788i198508-198708

sub13753-16100

main90072-72790i198508-198708

sub13753-16120

main90072-72792i198508-198708

sub13753-16140

main90072-72794i198508-198708

sub13753-16160

main90072-72796i198508-198708

sub13753-16180

main90072-72798i198508-198708

sub13753-16200

main90072-72801i198508-198708

sub13753-16220

main90072-72803i198508-198708

sub13753-16240

main90072-72805i198508-198708

sub13753-16260

main90072-72807i198508-198708

sub13753-16280

main90072-72809i198508-198708

sub13753-16300

main90072-72811i198508-198708

sub13753-16320

main90072-72813i198508-198708

sub13753-16340

9010910099

main90109-10099

9020110019

main90201-10019

9111171020

main91111-71020

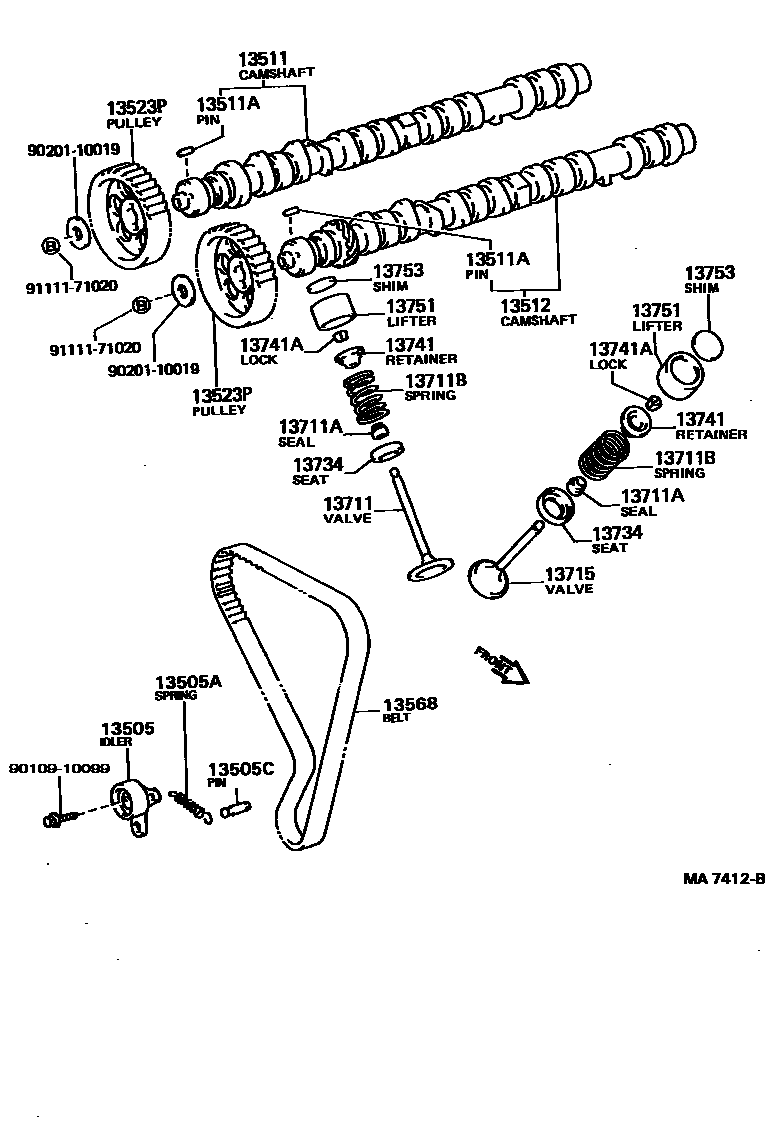

CAMSHAFT & VALVE
