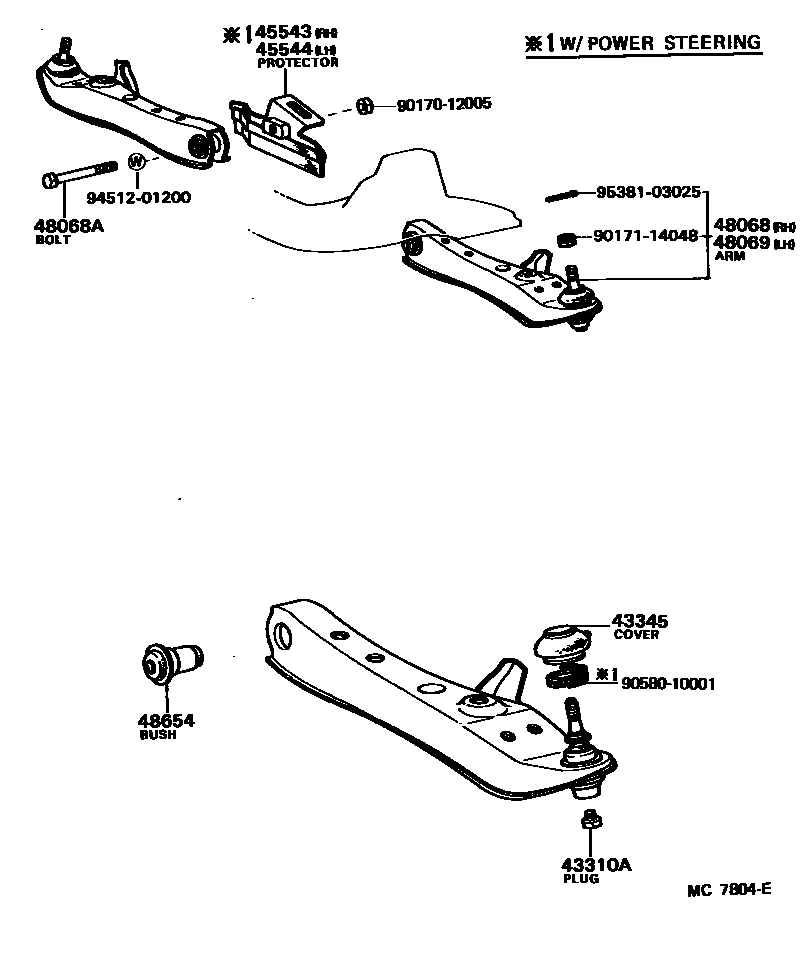

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

43345COVER, LOWER BALL JOINT DUST

main43345-14020iAA63,RA63,SA60,TA6#198107-198507

sub43345-14010

main43345-22070iGA61,MA6#198107-198512

45543PROTECTOR, STEERING RACK BOOT, RH

main45543-14010iTA63198107-198507

main45543-24010iGA61,MA6#198107-198512

45544PROTECTOR, STEERING RACK BOOT, LH

main45544-14010iTA63198107-198507

main45544-24010iGA61,MA6#198107-198512

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19105iAA63,RA63,SA60,TA6#198107-198507

sub48068-29125

main48068-29065iGA61,MA6#198107-198512

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12039iGA61,MA6#198107-198512

main90101-12291iAA63,RA63,SA60,TA6#198107-198507

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19085iAA63,RA63,SA60,TA6#198107-198507

sub48069-29125

main48069-29065iGA61,MA6#198107-198512

48654BUSH, LOWER ARM

main48654-12010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

9017012005

main90170-12005

9017114048

main90171-14048

9058010001

main90580-10001

9451201200

main94512-01200

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
