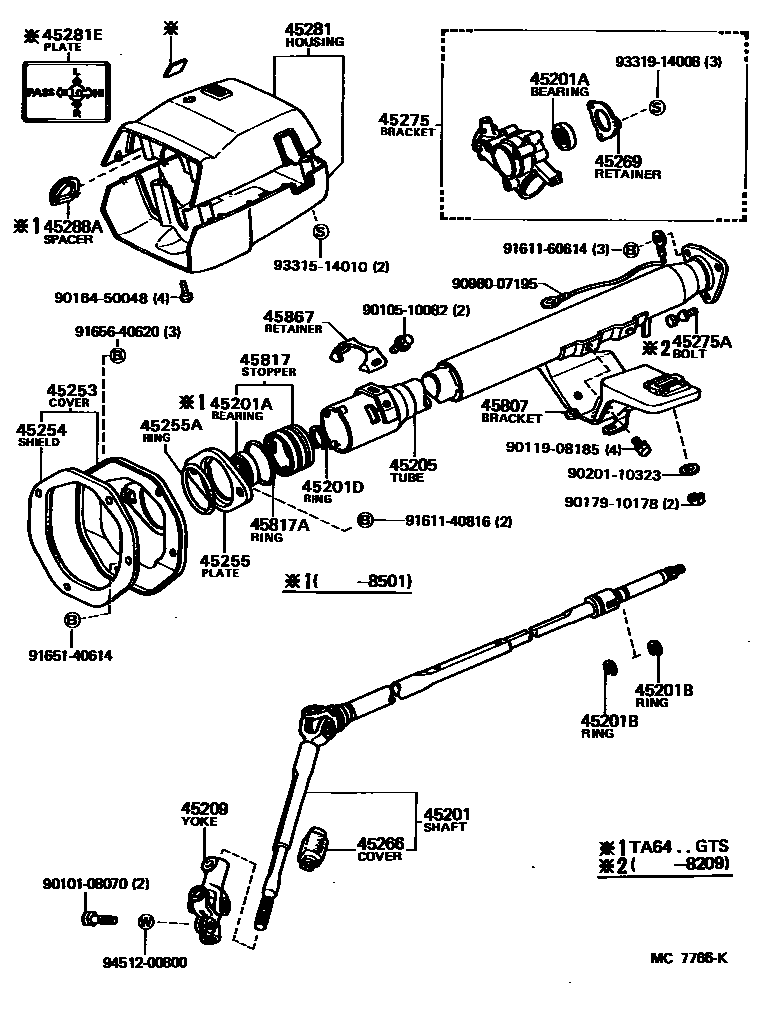

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0008 1 0011 1 0013 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-14010iSA60,TA6#..GTR,ST,SV198107-198308

main45210-14020iSA60,TA6#..GTR,ST,SV198201-198308

main45210-14021iSA60..ST,SV198308-198507

main45210-14030iSA60..ST198107-198201

W/POWER STRG

main45210-14040iTA63..ST198107-198201

W/POWER STRG

main45210-14090iTA63..ST198201-198210

W/POWER STRG

main45210-20130iSA60..ST198201-198507

W/POWER STRG

main45210-22050iAA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX198107-198512

W/TILT STRG,W/TILT&POWER STRG

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iAA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX198107-198512

UPR,W/TILT STEERING

main90363-18038iSA60,TA6#..GTR,GTS,ST,SV198107-198507

UPR

main90363-28001iAA63,GA61,MA6#,RA63,TA61,63..G,GT,GTT,L,S,SX198107-198512

CTR,W/TILT STEERING

main90363-30007iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198501

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90520-17196iSA60,TA6#..GTR,GTS,ST,SV198107-198507

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-14100iSA60,TA6#..GTR,GTS,ST,SV198107-198507

main45870-14110iAA63,RA63,SA60,TA61,63..GT,GTT,SX198107-198507

W/TILT STEERING

main45870-24020iGA61,MA6#198107-198512

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14010iRA63,TA6#198107-198308

main45209-14020iRA63,SA60,TA63..4FC,5F198107-198507

W/POWER STEERING

main45209-14030iSA60198107-198308

main45209-32010iAA63,SA60,TA63..GT,GTT,ST,SV198308-198507

45253COVER, STEERING COLUMN HOLE

main45025-14100iAA63,RA63,SA60,TA6#198107-198507

main45025-24011iGA61,MA6#198107-198512

45254SHIELD, STEERING COLUMN HOLE

main45254-24011iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12030iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-59001iAA63,GA61,MA6#,RA63,SA60,TA6#198201-198512

main90301-60122iGA61,MA61,RA63,SA60,TA6#198107-198201

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

45269RETAINER, MAIN SHAFT BEARING

main45269-10010iSA60..ST,SV198406-198507

main45269-35010iSA60,TA6#..GTR,GTS,ST,SV198107-198406

45275BRACKET, STEERING COLUMN, UPPER

main45280-24011iGA61,MA63,RA63,TA61,63..G,GT,GTT,L,S,SX198107-198308

main45280-24012iAA63,GA61,MA61,SA60,TA63..GT,GTT,SX198308-198512

main45280-24021iMA61198107-198209

main45280-24022iMA61198209-198308

main45280-24030iSA60,TA6#..GTR,ST,SV198107-198209

main45280-24031iSA60,TA6#..GTR,GTS,ST,SV198209-198507

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main45897-12030iSA60,TA6#..GTR,ST,SV198107-198209

main45897-14010iGA61,MA63,RA63,TA6#..G,GT,L,S,SX198107-198512

45281HOUSING, STEERING COLUMN

main45286-14922-01iAA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX198107-198512

W/TILT STEERING,BLACK,BLACK,TRIM2#

main45286-14922-02iGA61,MA6#198107-198308

W/TILT STEERING,TERRACOTTA,RED/MAROON,TRIM3#

main45286-14922-04iAA63,GA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,L,S,SX)198107-198512

W/TILT STEERING,BLUE,BLUE,TRIM8#

main45286-14922-06iAA63,RA63,SA60,TA61,63..GT,SX198107-198507

W/TILT STEERING,DARK BROWN,BROWN,TRIM4#

main45286-14927-01iGA61,MA6#198308-198512

BLACK,BLACK,TRIM2#

main45286-14927-04iGA61,MA6#198308-198512

BLUE,BLUE,TRIM8#

main45286-14927-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main45286-24900-01iSA60,TA6#..GTR,GTS,ST,SV198107-198507

BLACK,BLACK,TRIM2#

main45286-24900-04iSA60,TA63..LB..ST198107-198507

BLUE,BLUE,TRIM8#

main45286-24900-06iSA60,TA63..ST198107-198507

DARK BROWN,BROWN,TRIM4#

45281EPLATE, SAFETY CAUTION

main45283-22010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

45288ASPACER, COLUMN COVER

main45288-14010-01iTA63,64..GTS,GTT198107-198507

BLACK,BLACK,TRIM2#

main45288-14010-02iGA61,MA63..L,S198107-198308

TERACOTTA,RED/MAROON,TRIM3#

main45288-14010-04iGA61,MA63..L,S198107-198308

BLUE,BLUE,TRIM8#

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-14050iAA63,GA61,MA6#,RA63,SA60,TA61,63..G,GT,GTT,L,S,SX198107-198512

W/TILT STEERING

main45807-24011iSA60,TA6#..GTR,GTS,ST,SV198107-198507

45817STOPPER, STEERING SHAFT THRUST

main45808-12020iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198501

main45808-12030iAA63,GA61,MA6#,SA60,TA63198501-198512

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96711-24053iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

9010108070

main90101-08070

9010510082

main90105-10082

9011908185

main90119-08185

9016450048

main90164-50048

9017910178

main90179-10178

9020110323

main90201-10323

9098007195

main90980-07195

9161140816

main91611-40816

9161160614

main91611-60614

9165140614

main91651-40614

9165640620

main91656-40620

9331514010

main93315-14010

9331914008

main93319-14008

9451200800

main94512-00800

35 parts on this diagram · 8 diagrams in section
