OIL FILTER

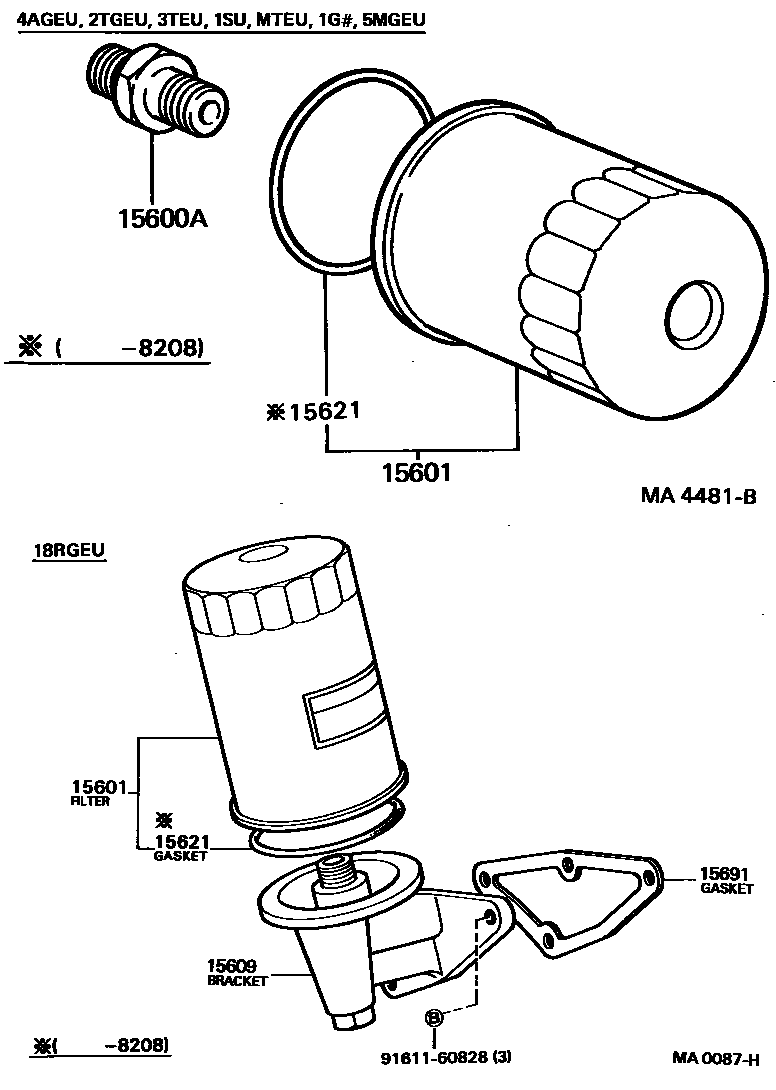

0001 1 MA4481B,MA0087H 0007 1

15600AUNION(FOR OIL FILTER)

main90404-19001i4AGEU..AA63198308-198507

main90404-19002i1SU..SA60198107-198512

main90404-20010i3TGTEU,4TGTEU..TA63,64198210-198507

main90404-20173i5MGEU,MTEU..MA6#198107-198512

15601FILTER SUB-ASSY, OIL

main15600-25010i2TGEU,3T#,4TGTEU..TA6#198107-198507

sub90915-20003

main15601-13010i1SU..SA60198107-198306

main15601-13011i4AGEU..AA63198306-198507

sub90915-03001

main15601-33020i18RGEU..RA63198107-198208

main15601-44011i1G#..GA61198107-198512

sub90915-40002

sub90915-03002

15609BRACKET SUB-ASSY, OIL FILTER

main15609-88271i18RGEU..RA63198107-198208

main15609-88272i18RGEU..RA63198202-198208

W/PS

main15670-88280i3TGTEU,4TGTEU..TA63,64198210-198507

main15670-88281i3TGTEU..TA63..5F198308-198507

15621GASKET, OIL FILTER BODY

main15621-22010i18RGEU..RA63198107-198208

main15621-41010i1GEU..GA61198107-198208

15691GASKET, OIL FILTER

main15691-88270i18RGEU..RA63198107-198208

sub15691-88271

9161160828

main91611-60828

6 parts on this diagram · 2 diagrams in section
