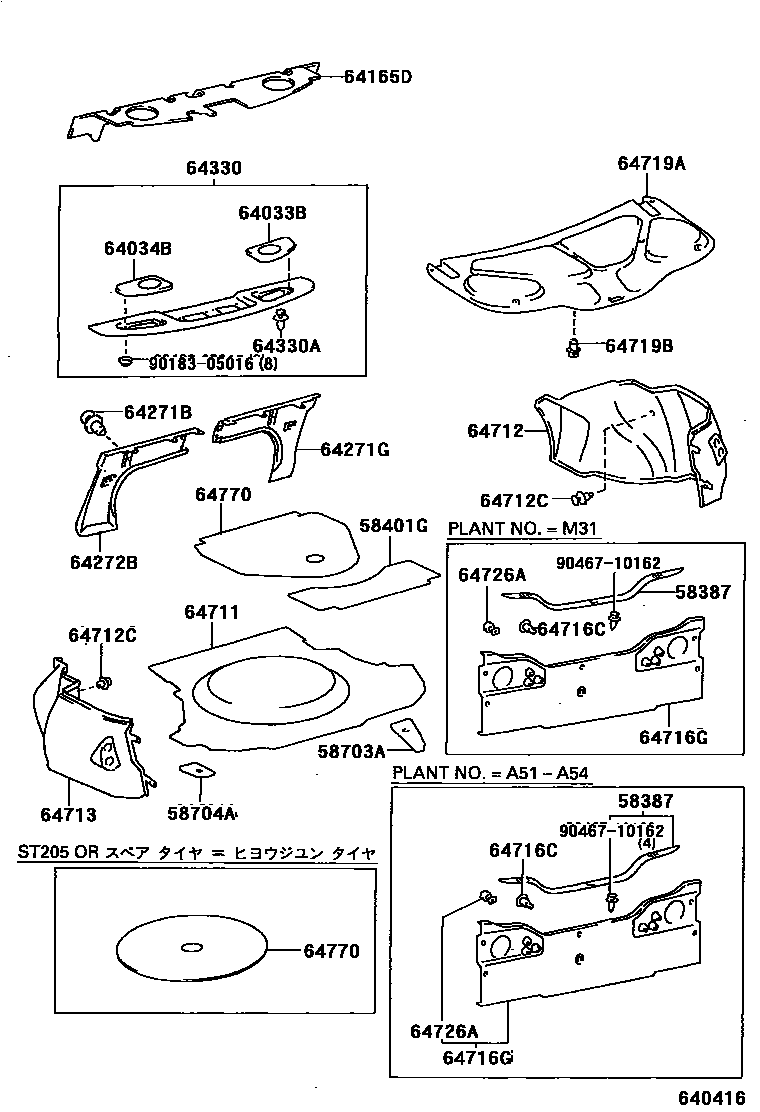

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-20060-C0iST202,203..E;ST200,202,203..F,GLIM,GT,SLIM,V199505-199804

main58387-20080-C0iST205199505-199804

BLACK,TRIM1#

58401GBOARD SUB-ASSY, REAR FLOOR, NO.1

main58401-20010iST200,201,202,203199309

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20180iST20#199309

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20150iST20#199309

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-20250-B0iST20#199309-199804

SHADOW GRAY,TRIM1#

main64383-20250-K0iST200,201,202,203..X199309-199508

TAUPE,TRIM9#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64384-20180-B0iST20#199309-199804

SHADOW GRAY,TRIM1#

main64384-20180-K0iST200,201,202,203..X199309-199508

TAUPE,TRIM9#

64165DCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20090iST20#199508

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-07121-C0×3iST200,201,202,203..X199309-199508

BLACK,TRIM1#,9#

sub90467-07207

64271GBOARD, ROOM PARTITION, RH

main64271-20280-C0iST200,201,202,203..X199309-199508

BLACK,TRIM1#,9#

64272BBOARD, ROOM PARTITION, LH

main64272-20270-C0iST202,203..E;ST200,202,203,205..F,GLIM,GT,GT4WD,LIM4,SLIM,V199309-199804

BLACK,TRIM1#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-2B850-B0iST20#199309-199508

main64330-2B850-K0iST200,201,202,203..X199309-199508

main64330-2B851-B0iST20#199508-199804

main64330-2B860-B0iST20#..GLIM,LIM4,SLIM,X199309-199508

main64330-2B860-K0iST200,201,202,203..X199309-199508

main64330-2B861-B0iST20#199508-199804

main64330-2B870-B0iST20#199309-199508

SHADOW GRAY,TRIM1#

main64330-2B870-K0iST200,201,202,203..X199309-199508

TAUPE,TRIM9#

main64330-2B871-B0iST20#199508-199804

SHADOW GRAY,TRIM1#

main64330-2B880-B0iST20#199309-199508

main64330-2B880-K0iST200,201,202,203..X199309-199508

main64330-2B881-B0iST20#199508-199804

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06167×3iST20#199309

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-2B060-C0iST205199405-199804

main64711-2B070-C0iST205199405-199804

main64711-2B100-C0iST200,201,202,203..X199309-199508

main64711-2B101-C0iST200,202,203199508-199804

main64711-2B110-C0iST200,201,202,203..X199309-199508

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20220-C0iST202,203..E;ST200,202,203..F,GLIM,GT,SLIM,V199309-199804

BLACK,TRIM1#

main64712-20250-C0iST205199405-199804

BLACK,TRIM1#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-07146×2iST20#199309-199505

main90467-07152-C0×2iST200,202,203..F,GLIM,SLIM199505-199508

main90467-08188×2iST20#199602-199804

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-20220-C0iST202,203..E;ST200,202,203..F,GLIM,GT,SLIM,V199309-199804

BLACK,TRIM1#

main64713-20250-C0iST205199405-199804

BLACK,TRIM1#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07146×2iST20#199309-199505

main90467-07152-C0iST200,202,203..F,GLIM,SLIM199505-199508

main90467-08188iST20#199602-199804

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20540-C0iST200,201,202,203..X199309-199505

BLACK,TRIM1#

main64716-20560-C0iST205199405-199804

BLACK,TRIM1#

main64716-20580-C0iST200,202,203..F,GLIM,SLIM199505-199508

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-20110-C0iST200,201,202,203..X199309-199508

BLACK,TRIM1#,9#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07146×14iST20#199505-199602

main90467-07152-C0×14iST200,202,203..X199505-199508

main90467-08188×14iST20#199602-199804

64726ACLIP, LUGGAGE TRIM, REAR

main64726-20020-C0×6iST200,201,202,203..X199309-199508

BLACK,TRIM1#,9#

64770COVER ASSY, SPARE WHEEL

main64770-20240iST20#199309

main64770-20270iST200,201,202,203199309

9018305016

main90183-05016

9046710162

main90467-10162

24 parts on this diagram · 1 diagram in section
