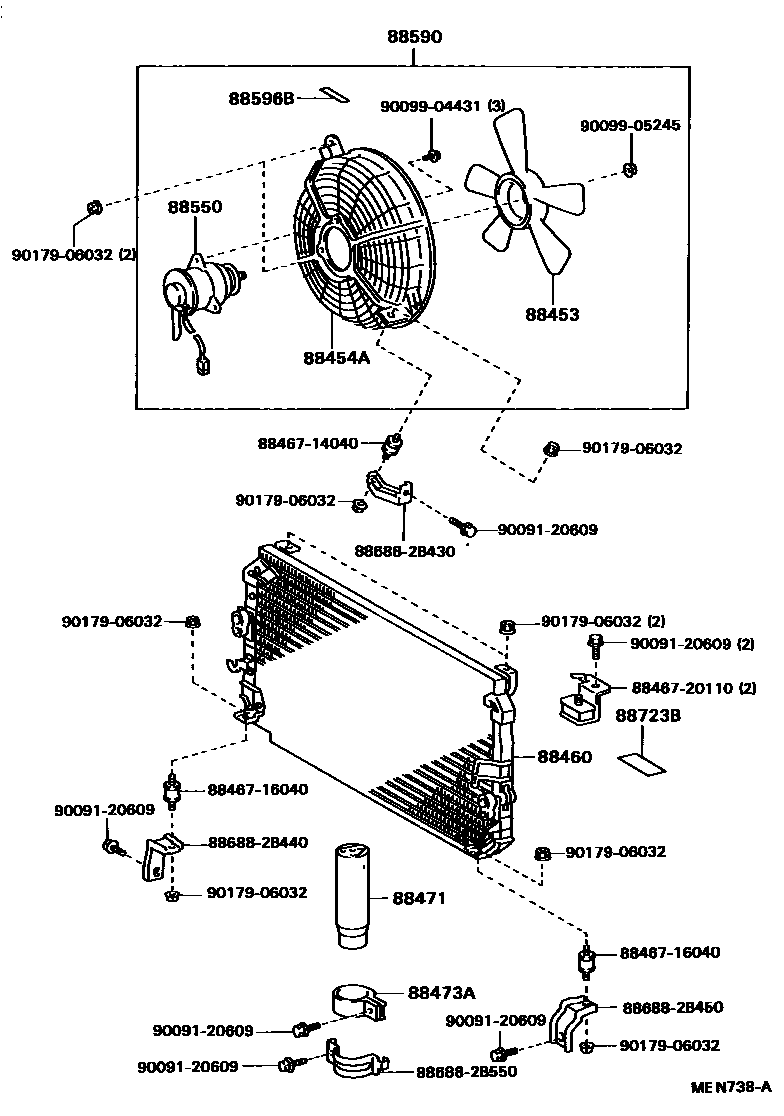

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88453FAN, COOLING (FOR CONDENSER)

main88453-20060iST18#199009-199108

88454ASHROUD, FAN

main88454-20100iST18#198909-199009

88460CONDENSER ASSY, COOLER

main88460-20301iST18#199108-199309

main88460-20340iST18#199009-199108

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iST18#198909-199009

sub88471-16050

88473AHOLDER, RECEIVER

main88473-20070iST18#198909-199009

main88473-20100iST18#199108-199309

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-20070iST18#198909-199009

88590BLOWER ASSY, W/SHROUD

main88590-20240iST18#198909-199009

main88590-20260iST18#199108-199309

88596BPLATE, CAUTION, NO.1

main88596-24010iST18#198909-199009

88723BLABEL, COOLER SERVICE CAUTION

main88723-20010iST18#..EFI199008-199009

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8846716040CUSHION, COOLER CONDENSER, NO.1

main88467-16040

8846720110CUSHION, COOLER CONDENSER, NO.1

main88467-20110

886882B430BRACKET, COOLER DIAPHRAGM

main88688-2B430

886882B440BRACKET, COOLER DIAPHRAGM

main88688-2B440

886882B450BRACKET, COOLER DIAPHRAGM

main88688-2B450

886882B550BRACKET, COOLER DIAPHRAGM

main88688-2B550

9009120609

main90091-20609

9009904431

main90099-04431

9009905245

main90099-05245

9017906032

main90179-06032

20 parts on this diagram · 4 diagrams in section
