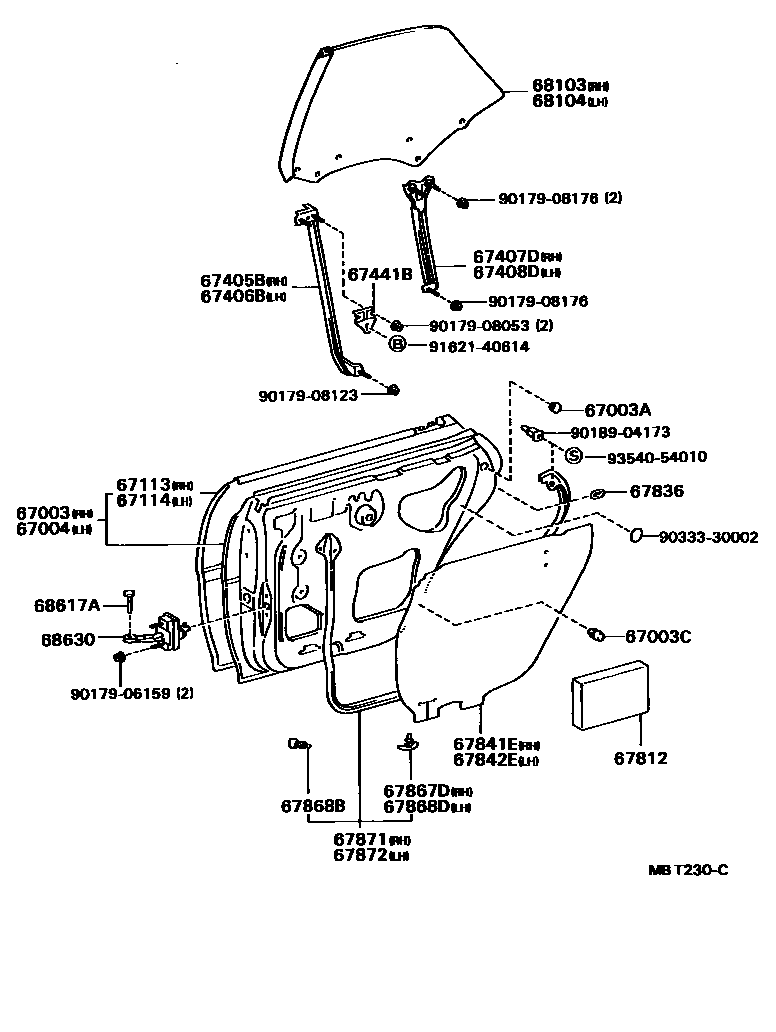

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003APLUG, HOLE(FOR REAR DOOR PANEL)
67003CCUSHION, REAR DOOR PANEL
A51-A54
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67441BPLATE, REAR DOOR FRONT GUIDE, UPPER
67812PAD, REAR DOOR SILENCER
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
sub67867-12150
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
sub67867-12150
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
sub68103-20131
sub68103-20132
sub68103-20141
sub68103-20142
sub68103-20132
68617APIN, REAR DOOR CHECK
68630CHECK ASSY, REAR DOOR
9017906159
main90179-06159
9017908053
main90179-08053
9017908123
main90179-08123
9017908176
main90179-08176
9018904173
main90189-04173
9033330002
main90333-30002
9162140614
main91621-40614
9354054010
main93540-54010
32 parts on this diagram · 2 diagrams in section
