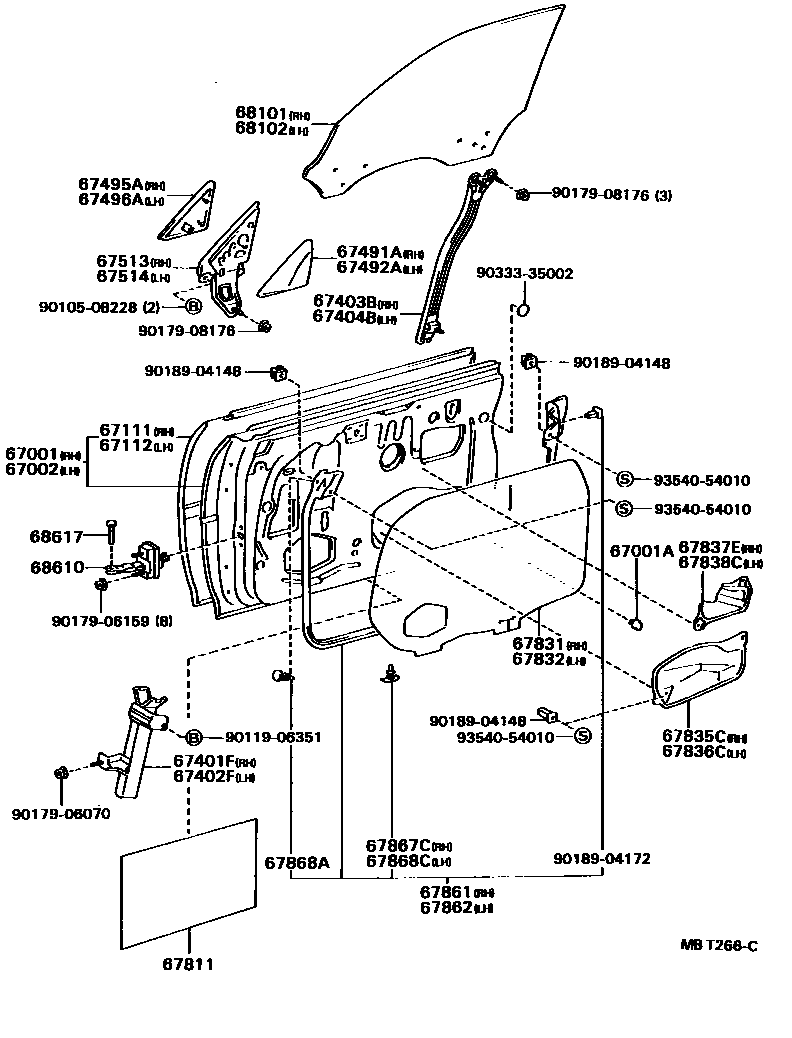

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20860iST18#198909-199108

main67001-2B020iST18#199108-199309

67001ACUSHION, FRONT DOOR PANEL

main90541-09006iST18#198909-199309

A51-A54

main90541-09059iST18#198909-199309

A41,A42

sub90541-09006

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20820iST18#198909-199108

main67002-2B010iST18#199108-199309

67111PANEL, FRONT DOOR, OUTER RH

main67111-20310iST18#198909-199309

67112PANEL, FRONT DOOR, OUTER LH

main67112-20330iST18#198909-199309

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-20200iST18#198909-199309

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-20190iST18#198909-199309

67403BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH

main67403-20070iST18#198909-199309

67404BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH

main67404-20070iST18#198909-199309

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20200iST180,181;ST182,183..GLIM,SLIM198909-199309

main67491-20210iST180,181;ST182,183..GLIM,SLIM198909-199309

main67491-20210iST182,183..X198909-199309

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20220iST180,181;ST182,183..GLIM,SLIM198909-199309

main67492-20230iST180,181..X;ST182,183..GLIM,SLIM198909-199309

main67492-20230iST182,183..X198909-199309

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-20100iST18#198909-199309

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-20070iST18#198909-199309

67513BRACKET, FRONT DOOR MIRROR, RH

main67513-20090iST18#198909-199010

sub67513-20091

main67513-20091iST18#199010-199309

67514BRACKET, FRONT DOOR MIRROR, LH

main67514-20090iST18#198909-199010

sub67514-20091

main67514-20091iST18#199010-199309

67811PAD, FRONT DOOR SILENCER

main67812-12010iST18#198909-199309

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-20380iST180,181;ST182,183..GLIM,SLIM198909-199309

main67831-20390iST180,181..F,S198909-199309

sub67831-20380

main67831-20390iST182,183..X198909-199309

sub67831-20380

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-20380iST180,181;ST182,183..GLIM,SLIM198909-199309

main67831-20390iST180,181..X;ST182,183..GLIM,SLIM198909-199309

sub67831-20380

main67831-20390iST182,183..X198909-199309

sub67831-20380

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-20040iST18#198909-199309

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-20080iST18#198909-199309

67837ECOVER, FRONT DOOR SERVICE HOLE, NO.4 RH

main67837-20090iST18#198909-199309

67838CCOVER, FRONT DOOR SERVICE HOLE, NO.4 LH

main67838-20080iST18#198909-199309

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20330iST18#198909-199309

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20330iST18#198909-199309

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-20140iST18#198909-199309

sub67867-12150

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main67869-20030iST18#198909-199309

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-20140iST18#198909-199309

sub67867-12150

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-20580iST18#198909-199309

main68111-20590iST18#198909-199309

sub68111-20580

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-20500iST18#198909-199309

main68112-20510iST18#198909-199309

68610CHECK ASSY, FRONT DOOR

main68610-20080iST18#198909-199108

main68610-20100iST18#199108-199309

main68620-20020iST18#199108-199309

68617PIN, FRONT DOOR CHECK

main68617-20020iST18#198909-199309

9010508228

main90105-08228

9011906351

main90119-06351

9017906070

main90179-06070

9017906159

main90179-06159

9017908176

main90179-08176

9018904148

main90189-04148

9018904172

main90189-04172

9033335002

main90333-35002

9354054010

main93540-54010

40 parts on this diagram · 2 diagrams in section
