INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62211GARNISH, FRONT PILLAR, RH
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
KHAKI,TRIM6#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
KHAKI,TRIM6#
62221DCOVER, FRONT PILLAR GARNISH, RH
62222BCOVER, FRONT PILLAR GARNISH, LH
62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
62383DRETAINER, ROOF SIDE RAIL, RH
62384DRETAINER, ROOF SIDE RAIL, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
62411DPLUG, HOLE (FOR CENTER PILLAR GARNISH)
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
62414AGARNISH, CENTER PILLAR, LOWER LH
62471AGARNISH, ROOF SIDE, INNER RH
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
KHAKI,TRIM6#
62472AGARNISH, ROOF SIDE, INNER LH
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
KHAKI,TRIM6#
67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP
67913PLATE, FRONT DOOR SCUFF, RH
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
KHAKI,TRIM6#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
SHADOW GRAY,TRIM1#
SABLE,TRIM4#
KHAKI,TRIM6#
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
67921ERETAINER, REAR DOOR SCUFF PLATE
67921FRETAINER, FRONT DOOR SCUFF PLATE
FRONT
REAR
9046706104
main90467-06104
9046804046
main90468-04046
9046805060
main90468-05060
9046805077
main90468-05077
9046825003
main90468-25003

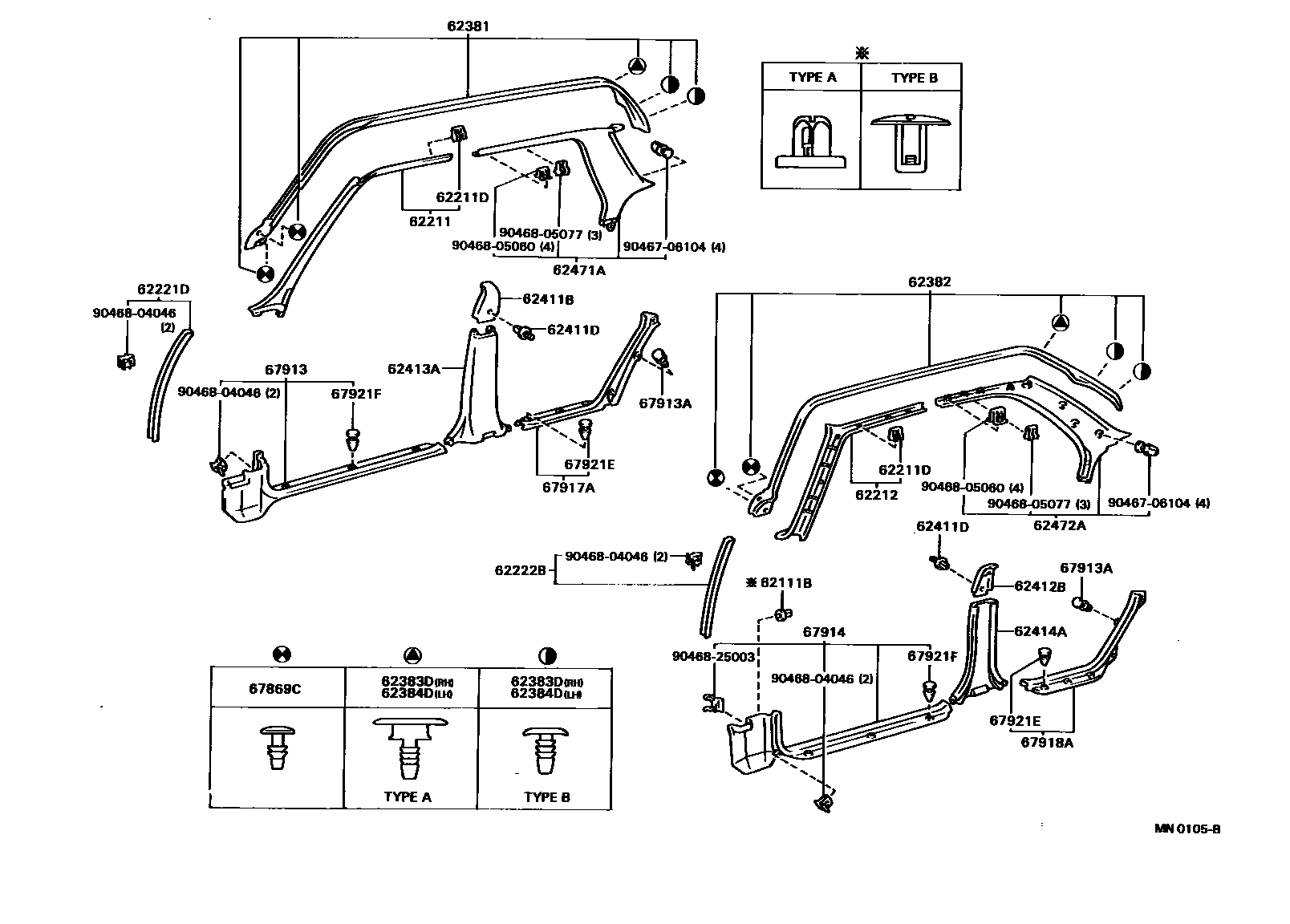

30 parts on this diagram · 1 diagram in section
