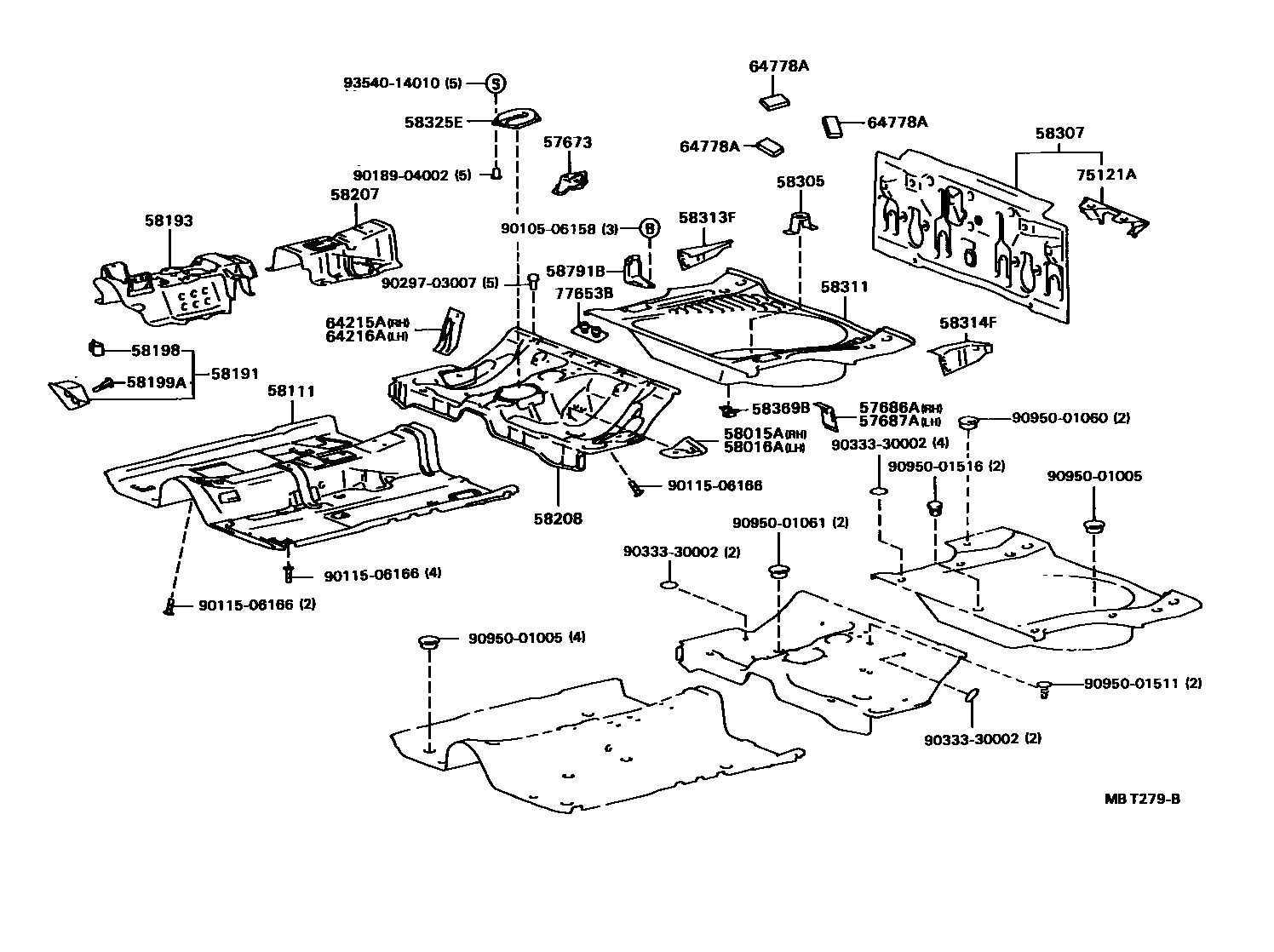

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-20080iST18#..GLIM,S,SLIM,X198909-199309

57686ABRACKET, FUEL TANK MOUNTING, REAR RH

main57686-20040iST180,182198909-199309

57687ABRACKET, FUEL TANK MOUNTING, REAR LH

main57686-20040iST180,182198909-199309

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-20070iST18#198909-199309

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-20060iST18#198909-199309

58111PAN, FRONT FLOOR

main58111-20150iST18#198909-199309

58191FOOTREST, FRONT FLOOR

main58191-20060iST18#198909-199309

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58109-20110iST18#198909-199309

58198CLIP, FOOTREST

main58198-20100iST18#198909-199309

58199ACLIP, FOOTREST, NO.2

main58199-20020iST18#198909-199309

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-20100iST18#198909-199309

58208PAN, CENTER FLOOR

main58211-20310iST18#198909-199309

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iST18#198909-199309

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-20810iST18#198909-199108

sub90950-01596

main58307-2B030iST18#199108-199309

58311PAN, REAR FLOOR

main58311-20290iST180,182198909-199309

main58311-20310iST181,183198909-199309

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-20902iST18#198909-199309

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-20240iST18#198909-199309

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-20050iST18#198909-199309

58369BBRACKET, FUEL TUBE, NO.3

main58369-20010×5iST18#198909-199309

58791BCARRIER, JACK

main58791-20070iST18#198910-199309

main58791-20080iST18#198909-198910

64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH

main64215-20040iST18#198909-199309

64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH

main64216-20050iST18#198909-199309

64778APROTECTOR, SPARE WHEEL

main64778-20020×3iST18#..F,S,X199108-199309

main64778-20040×3iST18#198909-199309

sub64778-32020

main64778-20070×3iST180,181,183..F,S,X199108-199309

75121ABRACKET, REAR LICENSE PLATE

main75121-20140iST18#198909-199309

77653BCUSHION, FUEL TANK, NO.3

main77653-20070×2iST18#198909-198911

main77653-20071×2iST18#198911-199309

9010506158

main90105-06158

9011506166

main90115-06166

9018904002

main90189-04002

9029703007

main90297-03007

9033330002

main90333-30002

9095001005

main90950-01005

9095001060

main90950-01060

9095001061

main90950-01061

9095001511

main90950-01511

9095001516

main90950-01516

9354014010

main93540-14010

36 parts on this diagram · 2 diagrams in section
