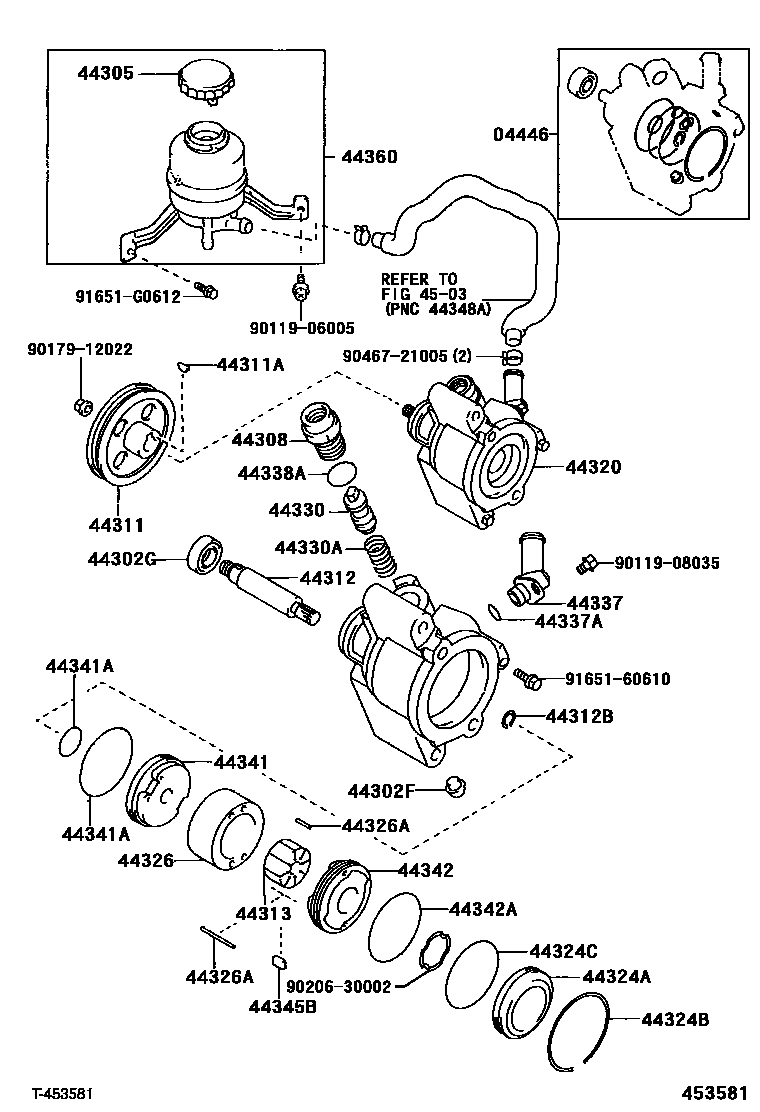

VANE PUMP & RESERVOIR (POWER STEERING)
44302FSEAT, UNION(FOR VANE PUMP HOUSING)
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
sub44305-22050
44311PULLEY, VANE PUMP
44311AKEY, VANE PUMP PULLEY
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44324AHOUSING, PUMP, REAR
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
44324CRING, O(FOR PUMP HOUSING REAR)
44326RING, CAM(FOR VANE PUMP)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44330VALVE ASSY, FLOW CONTROL
sub44330-32730
sub44330-32740
sub44330-32750
sub44330-32760
sub44330-32770
sub44330-32780
sub44330-35250
sub44330-35260
sub44330-35270
sub44330-35280
sub44330-35290
sub44330-35300
sub44330-60070
sub44330-60080
sub44330-60090
sub44330-60100
sub44330-60110
sub44330-60120
sub44330-32670
sub44330-32680
sub44330-32690
sub44330-32700
sub44330-32710
sub44330-32720
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
sub90301-11016
44338ARING, O(FOR PRESSURE PORT UNION)
sub90301-19013
44341PLATE, VANE PUMP SIDE, FRONT
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44345BPLATE, VANE PUMP
44360RESERVOIR ASSY, VANE PUMP OIL
4503
9011906005
main90119-06005
9011908035
main90119-08035
9017912022
main90179-12022
9020630002
main90206-30002
9046721005
main90467-21005
9165160610
main91651-60610
91651G0612
main91651-G0612
35 parts on this diagram · 1 diagram in section
