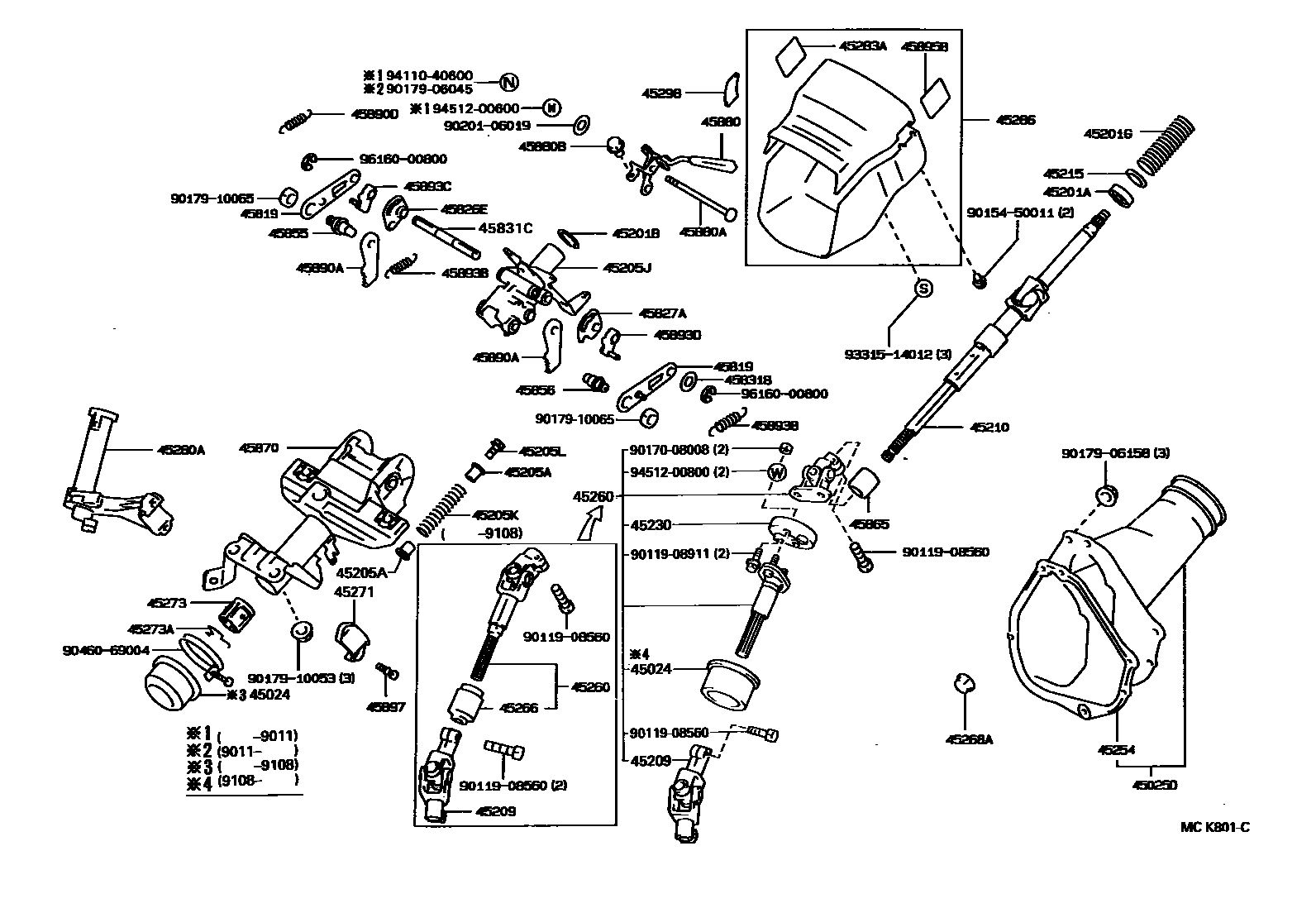

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205ABUSH(FOR STEERING COLUMN TUBE)
ALUMINUM UPR TUBE
RESIN UPR TUBE
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
ALUMINUM
RESIN
45205LSCREW(FOR STEERING COLUMN TUBE)
45215COLLAR, MAIN SHAFT BEARING THRUST
45230COUPLING ASSY, FLEXIBLE
sub45230-32010
45254SHIELD, STEERING COLUMN HOLE
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45266COVER, STEERING INTERMEDIATE SHAFT DUST
45268COVER, STEERING INTER SHAFT DUST SEAL
45271CLAMP, STEERING COLUMN, UPPER
45273ARING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH)
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286COVER, STEERING COLUMN
45298PLUG, STEERING COLUMN COVER
45819RETAINER, TILT LEVER
45826LEVER, STEERING TILT
45826ELEVER, STEERING TILT(FOR TILT ADJUST)
45827ALEVER, STEERING TILT SUB
45831BSPACER(FOR TILT LEVER LOCK SHAFT)
45831CSHAFT, TILT LEVER LOCK
45855BOLT, TILT STEERING, NO.1
45856BOLT, TILT STEERING, NO.2
45865COLLAR, STEERING MAIN SHAFT
45870TUBE ASSY, STEERING COLUMN
45880LEVER ASSY, STEERING TILT
45880ABOLT(FOR STEERING TILT LEVER)
45880BSCREW(FOR STEERING TILT LEVER)
45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)
45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)
45893CSTOPPER, STEERING PAWL, RH
45893DSTOPPER, STEERING PAWL, LH
45895BPLATE, TILT LEVER INSTRUCTION
45897BOLT, STEERING LOCK SET
9011908560
main90119-08560
9011908911
main90119-08911
9015450011
main90154-50011
9017008008
main90170-08008
9017906045
main90179-06045
9017906158
main90179-06158
9017910053
main90179-10053
9017910065
main90179-10065
9020106019
main90201-06019
9046069004
main90460-69004
9331514012
main93315-14012
9411040600
main94110-40600
9451200600
main94512-00600
9451200800
main94512-00800
9616000800
main96160-00800
60 parts on this diagram · 3 diagrams in section
