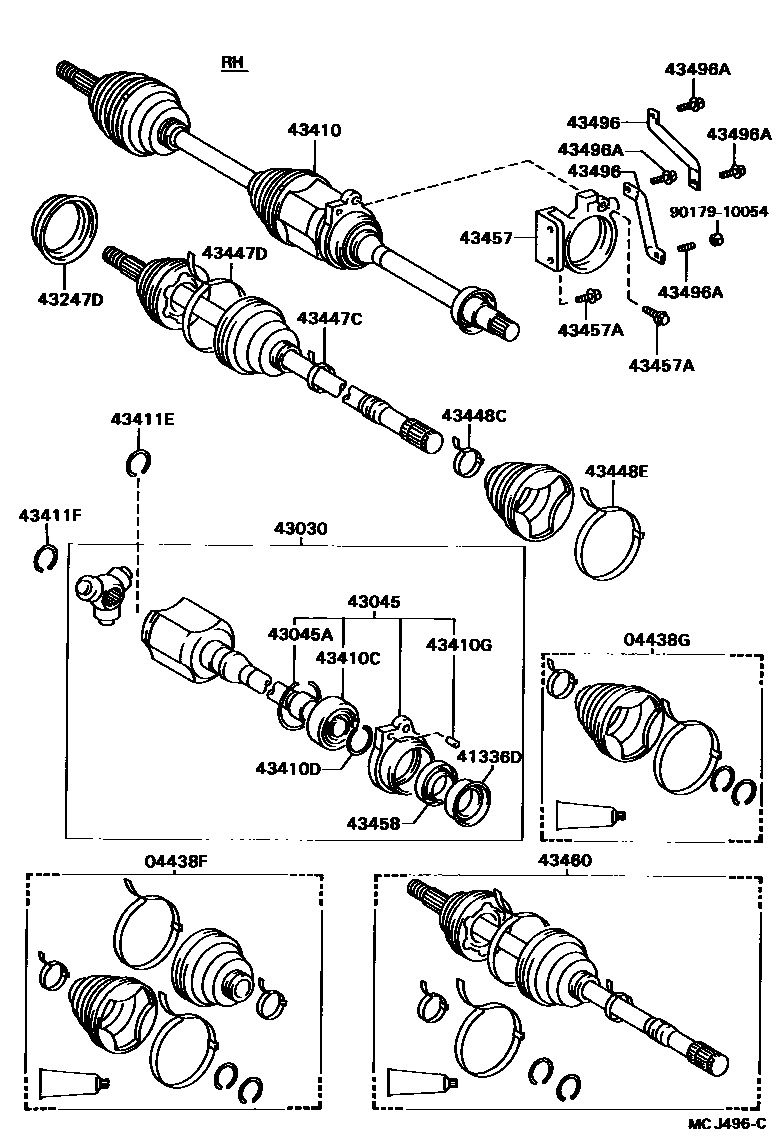

FRONT DRIVE SHAFT

0001 1 0002 1 0003 1 0004 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-12120iST180,181;ST182,183..ATM..EFI198909-199002

sub04438-12190

main04438-12190iST180,181;ST182,183..ATM..EFI199002-199009

main04438-12191iST180,181;ST182,183..ATM..EFI199009-199108

sub04438-20110

main04438-12270iST180,181199108-199309

sub04438-12290

main04438-20070iST182,183..MTM..EFI198909-199108

main04438-20090iST182,183..TWC198909-199309

main04438-20150iST182,183..EFI199108-199309

sub04438-20151

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12070iST180,181;ST182,183..ATM..EFI198909-199002

sub04438-12160

main04438-12160iST180,181;ST182,183..ATM..EFI199002-199009

sub04438-12161

main04438-12161iST180,181;ST182,183..ATM..EFI199009-199108

sub04438-12410

main04438-12260iST180,181199108-199309

sub04438-12420

main04438-20060iST182,183..MTM..EFI198909-199108

sub04438-20330

main04438-20080iST182,183..TWC198909-199309

main04438-20140iST182,183..EFI199108-199309

sub04438-20420

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-20011iST18#198909-199309

sub41336-20050

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-20010iST182,183..ATM..TWC198909-199309

main43030-20030iST180,181;ST182,183..ATM..EFI198909-199309

sub43030-32060

main43030-20040iST182,183..MTM..EFI198909-199309

main43030-32010iST182,183..MTM..TWC198909-199309

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-20010iST18#..CI,EFI198909-199309

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main96153-00680iST18#198909-199309

43247DDEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH

main43247-12010iST18#..EFI,TWC198909-199309

main43247-32011iST18#198909-199106

sub43247-33010

main43247-33010iST18#199106-199309

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20220iST180,181;ST182,183..ATM..EFI198909-199108

sub43410-20221

sub43525-20030

sub90179-22020

main43410-20221iST180,181199108-199309

sub43410-20222

sub90178-22001

main43410-20230iST180,181..EFI;ST182,183..ATM..EFI198909-199108

sub43410-20231

sub43525-20030

sub90179-22020

main43410-20231iST180,181199108-199309

sub43410-20232

sub90178-22001

main43410-20240iST182,183..MTM..EFI198909-199108

sub43410-20241

sub43525-20030

sub90179-22020

main43410-20241iST182,183..EFI199108-199309

sub43410-20242

sub90178-22001

main43410-20250iST182,183..MTM..EFI198909-199108

sub43410-20251

sub43525-20030

sub90179-22020

main43410-20251iST182,183..EFI199108-199309

sub43410-20252

sub90178-22001

main43410-20280iST182,183..ATM..TWC198909-199108

sub43410-20281

sub43525-20030

sub90179-22020

main43410-20281iST182,183..ATM..TWC199108-199309

sub43410-20282

sub90178-22001

main43410-20290iST182,183..ATM..TWC198909-199108

sub43410-20291

sub43525-20030

sub90179-22020

main43410-20291iST182,183..ATM..TWC199108-199309

sub43410-20292

sub90178-22001

main43410-20300iST182,183..MTM..TWC198909-199108

sub43410-20301

sub43525-20030

sub90179-22020

main43410-20301iST182,183..MTM..TWC199108-199309

sub43410-20302

sub90178-22001

main43410-20310iST182,183..MTM..TWC198909-199108

sub43410-20311

sub43525-20030

sub90179-22020

main43410-20311iST182,183..MTM..TWC199108-199309

sub43410-20312

sub90178-22001

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iST18#..CI,EFI198909-199309

sub90363-36004

sub90363-36010

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main90520-33008iST18#198909-199309

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003iST18#198909-199309

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iST180,181198909-199309

main90520-25034iST182,183..TWC198909-199309

main90520-26048iST182,183..MTM..EFI198909-199309

43411FRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER RH)

main90520-25033iST182,183..TWC198909-199309

main90520-25037iST182,183..MTM..EFI198909-199309

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-14010iST180,181;ST182,183..ATM..EFI198909-199309

main90949-01108iST182,183..TWC198909-199309

main90949-01559iST182,183..MTM..EFI198909-199309

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01076iST180,181;ST182,183..ATM..EFI198909-199309

sub42345-12160

main90949-01107iST182,183..TWC198909-199309

main90949-01473iST182,183..EFI198909-199309

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iST180,181198909-199309

main90949-01108iST182,183..TWC198909-199309

main90949-01559iST182,183..MTM..EFI198909-199309

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-30010iST182,183..MTM..EFI198909-199309

main42346-22010iST182,183..TWC198909-199309

main90949-01076iST180,181198909-199309

sub42345-12160

43457BRACKET, DRIVE SHAFT BEARING

main43457-20030iST18#198909-199309

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10202iST18#198909-199309

sub90105-10361

43458COVER, FRONT DRIVE SHAFT DUST

main43458-20011iST18#198909-199309

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-29135iST180,181;ST182,183..ATM..EFI198909-199101

sub43470-29136

sub43525-20030

sub90179-22020

main43470-29136iST180,181199101-199309

sub43470-29138

sub90178-22001

main43470-29145iST180,181..EFI;ST182,183..ATM..EFI198909-199101

sub43470-29146

sub43525-20030

sub90179-22020

main43470-29146iST180,181199101-199309

sub43470-29148

sub90178-22001

main43470-29155iST182,183..MTM..EFI198909-199101

sub43470-29156

sub43525-20030

sub90179-22020

main43470-29156iST182,183..MTM..EFI199101-199309

sub43470-29157

sub90178-22001

main43470-29165iST182,183..MTM..EFI198909-199101

sub43470-29166

sub43525-20030

sub90179-22020

main43470-29166iST182,183..MTM..EFI199101-199309

sub43470-29167

sub90178-22001

main43470-29435iST182,183..TWC199108-199309

sub43470-29436

sub90178-22001

main43470-29445iST182,183..TWC199108-199309

sub43470-29446

sub90178-22001

43496STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1

main43496-20010iST18#198909-199309

VANE PUMP SIDE

main43496-20030iST182,183..TWC198909-199309

EXHUST PIPE SIDE

main43496-20040iST18#..CI,EFI198909-199309

EXHUST PIPE SIDE

main43496-20070iST182,183..TWC199108-199309

EXHUST PIPE SIDE

43496ABOLT (FOR DRIVE SHAFT BEARING BRACKET STAY)

main90105-10263iST180,181;ST182,183..TWC198909-199309

main90116-10164iST180,181198909-199309

9017910054

main90179-10054

24 parts on this diagram · 4 diagrams in section
