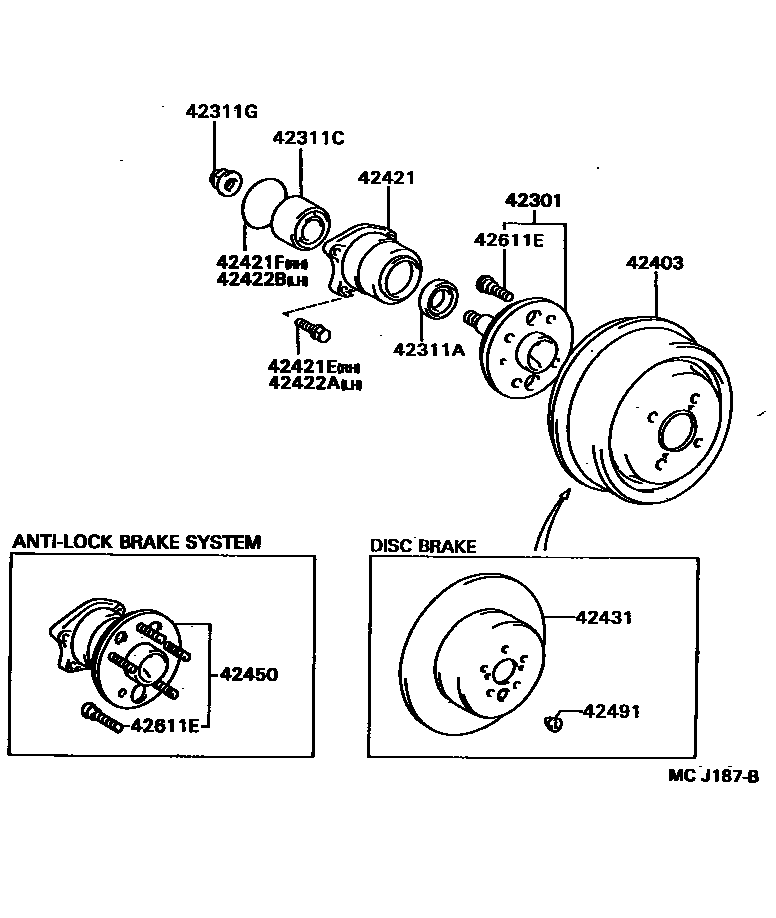

REAR AXLE SHAFT & HUB

0001 1 0002 1

42301SHAFT SUB-ASSY, REAR AXLE

main42301-20130iST180,181198909-199108

sub42301-20080

main42301-20140iST182,183198909-199108

sub42301-32031

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iST18#198909-199309

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iST18#198909-199309

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20017iST18#198909-199309

42403DRUM SUB-ASSY, REAR BRAKE

main42431-20080×2iST180,181198909-199108

main42431-32020×2iST180,181199108-199309

42421CASE, REAR AXLE BEARING

main42421-20020iST18#198909-199309

sub42409-20010

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124×4iST18#198909-199309

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iST18#198909-199309

sub90301-63006

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124×4iST18#198909-199309

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iST18#198909-199309

sub90301-63006

42431DISC, REAR

main42431-20090×2iST182,183198909-199109

main42431-20160×2iST182,183199109-199309

42450HUB & BEARING ASSY, REAR AXLE

main42450-20010×2iST180,181199008-199108

main42450-20030×2iST182,183198909-199108

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iST182,183198909-199309

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×4iST182,183198909-199108

14 parts on this diagram · 2 diagrams in section
