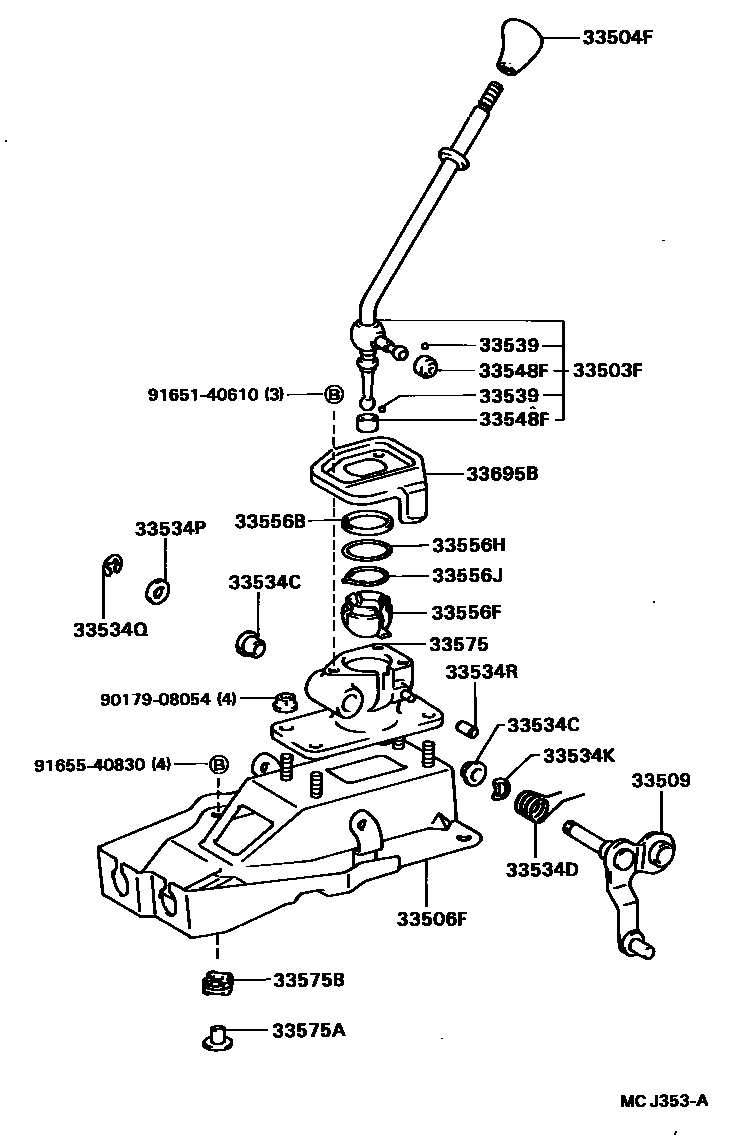

SHIFT LEVER & RETAINER

0001 1S50,S52,S53 0002 1S50,S52,S53 0003 1S50,S52,S53 0004 1A140L,A140E 0005 1A140L,A140E

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-20051iST18#..MTM198909-199008

main33055-20052iST18#..MTM199008-199108

main33503-20470iST18#..ATM198909-199309

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-E0iST18#..MTM..(F,X)199108-199309

SABLE,TRIM4#

sub33504-12180

main33504-12180-G0iST18#..MTM..X199108-199309

KHAKI,TRIM6#

sub33504-12180

main33504-12180-P0iST18#..MTM..(F,X)199108-199309

SHADOW GRAY,TRIM1#

sub33504-12180

main33504-12200-B1iST180,182..MTM..X199208-199309

sub33504-12200

sub33504-22140

main33504-12200-B1iST18#..MTM..(GLIM,S,SLIM)199108-199309

SHADOW GRAY,TRIM1#

sub33504-12200

sub33504-22140

main33504-12200-E0iST18#..MTM..(GLIM,S,SLIM)199108-199309

SABLE,TRIM4#

sub33504-12200

sub33504-22140

main33504-12200-E0iST180,182..MTM..X199208-199309

sub33504-12200

sub33504-22140

main33504-12200-G0iST182,183..MTM..(GLIM,SLIM)199108-199309

KHAKI,TRIM6#

sub33504-12200

sub33504-22140

main33504-12200-G0iST180,182..MTM..X199208-199309

sub33504-12200

sub33504-22140

main33504-20110-03iST18#..MTM..(F,X)198909-199108

SHADOW GRAY,TRIM1#

sub33504-24010

sub33504-20110

main33504-20110-07iST18#..MTM..X198909-199108

KHAKI,TRIM6#

sub33504-24010

sub33504-20110

main33504-20110-16iST18#..MTM..(F,X)198909-199108

SABLE,TRIM4#

sub33504-24010

sub33504-20110

main33504-20120-03iST180,182..MTM..X199105-199107

sub33504-20120

main33504-20120-03iST18#..MTM..(GLIM,S,SLIM)198909-199108

SHADOW GRAY,TRIM1#

sub33504-20120

main33504-20120-07iST182,183..MTM..(GLIM,SLIM)198909-199108

KHAKI,TRIM6#

sub33504-20120

main33504-20120-16iST18#..MTM..(GLIM,S,SLIM)198909-199108

SABLE,TRIM4#

sub33504-20120

main33504-20120-16iST180,182..MTM..X199105-199107

sub33504-20120

main33542-20120-03iST18#..ATM198909-199106

SHADOW GRAY,TRIM1#

sub33542-20121

main33542-20120-06iST18#..ATM198909-199106

SABLE,TRIM4#

sub33542-20121

main33542-20120-07iST18#..ATM..(GLIM,SLIM,X)198909-199106

KHAKI,TRIM6#

sub33542-20121

main33542-20121-03iST18#..ATM199106-199309

SHADOW GRAY,TRIM1#

sub33542-20121

main33542-20121-06iST18#..ATM199106-199309

SABLE,TRIM4#

sub33542-20121

main33542-20121-07iST18#..ATM..(GLIM,SLIM,X)199106-199309

KHAKI,TRIM6#

sub33542-20121

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-20260iST18#..MTM198909-199108

main33570-20030iST18#..ATM198909-199103

sub33570-20031

sub90159-60025

main33570-20031iST18#..ATM199103-199309

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-20012iST18#..MTM198909-199108

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12034iST18#..MTM198909-199108

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20084iST18#..MTM198909-199108

33534KWASHER, WAVE (FOR SELECTING BELLCRANK NO.1)

main90206-12003iST18#..MTM198909-199108

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-12052iST18#..MTM198909-199108

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00900iST18#..MTM198909-199108

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-06029iST18#..MTM198909-199108

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010iST18#..MTM198909-199108

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12040iST18#..MTM198909-199108

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90389-37001iST18#..MTM198909-199108

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20040iST18#..MTM198909-199108

33556HSHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90564-37009iST18#..MTM198909-199108

main90564-37010iST18#..MTM198909-199108

main90564-37011iST18#..MTM198909-199108

main90564-37012iST18#..MTM198909-199108

main90564-37013iST18#..MTM198909-199108

main90564-37014iST18#..MTM198909-199108

main90564-37015iST18#..MTM198909-199108

main90564-37016iST18#..MTM198909-199108

main90564-37017iST18#..MTM198909-199108

main90564-37018iST18#..MTM198909-199108

main90564-37019iST18#..MTM198909-199108

main90564-37020iST18#..MTM198909-199108

main90564-37021iST18#..MTM198909-199108

33556JRING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT)

main90520-36018iST18#..MTM198909-199108

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-20362iST18#..MTM198909-199108

33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)

main90389-08082iST18#..MTM198909-199108

33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)

main90385-09006iST18#..MTM198909-199108

33695BCOVER, SELECTING SPRING (FOR FLOOR SHIFT)

main33695-20030iST18#..MTM198909-199108

9017908054

main90179-08054

9165140610

main91651-40610

9165540830

main91655-40830

23 parts on this diagram · 5 diagrams in section
