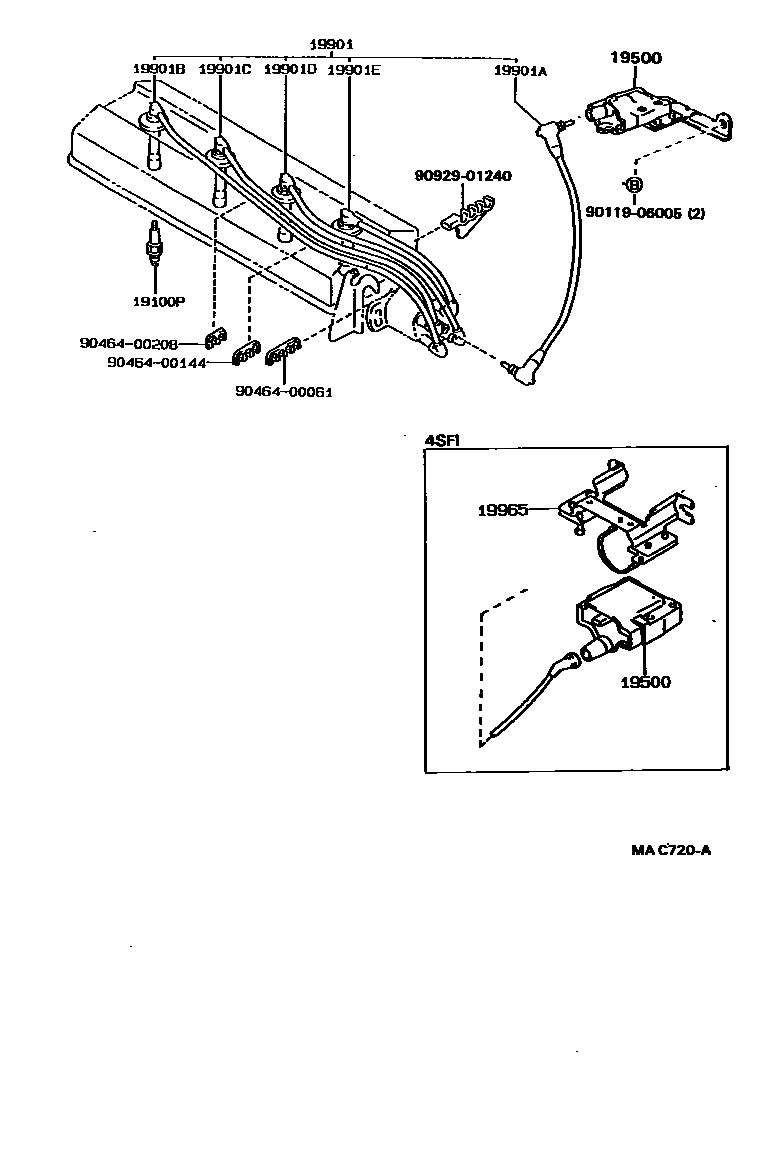

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19100PPLUG, SPARK

main90919-01129×4i3SFE..ST182,183198909-199008

main90919-01164×4i4SFE..ST180,181199008-199309

main90919-01170×4i4SFI..ST180,181198909-199008

main90919-01180×4i3SGE..ST182,183198909-199309

sub90919-01231

main90919-01181×4i3SGE..ST182,183198909-199309

main90919-01184×4i3SFE..ST182,183199008-199309

19500COIL ASSY, IGNITION

main19500-74020i3S#..ST182,183198909-199008

main19500-74040i3S#..ST182,183199108-199309

main19500-74070i4SFE..ST180,181199008-199309

main90919-02175i4SFI..ST180,181198909-199008

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21468i3SGE..ST182,183198909-199108

main90919-21469i4SFI..ST180,181198909-199008

main90919-21470i3SFE..ST182,183198909-199008

main90919-21511i4SFE..ST180,181199008-199309

main90919-21512i3SFE..ST182,183199008-199202

main90919-21525i3SGE..ST182,183199108-199309

main90919-21550i3SFE..ST182,183199202-199309

19901ACORD, COIL RESISTIVE

main19590-74040i3SGE..ST182,183198909-199108

sub19590-74050

main19590-74130i3SFE..ST182,183199008-199309

main19590-74150i3SGE..ST182,183199108-199309

main90919-13364i3SFE,4SFI..ST18#198909-199008

main90919-13389i4SFE..ST180,181199008-199309

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12799i4SFI..ST180,181198909-199008

main90919-12820i3SFE..ST182,183198909-199008

main90919-15046i3SGE..ST182,183198909-199108

main90919-15115i4SFE..ST180,181199008-199309

main90919-15130i3SFE..ST182,183199008-199009

main90919-15134i3SFE..ST182,183199008-199202

main90919-15262i3SGE..ST182,183199108-199309

main90919-15348i3SFE..ST182,183199308-199309

main90919-15350×2i3SFE..ST182,183199202-199308

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12800i4SFI..ST180,181198909-199008

main90919-12819i3SFE..ST182,183198909-199008

main90919-15047i3SGE..ST182,183198909-199108

main90919-15114i4SFE..ST180,181199008-199309

main90919-15131i3SFE..ST182,183199308-199309

main90919-15135i3SFE..ST182,183199008-199308

main90919-15263i3SGE..ST182,183199108-199309

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12801i4SFI..ST180,181198909-199008

main90919-12818i3SFE..ST182,183198909-199008

main90919-15048i3SGE..ST182,183198909-199108

main90919-15113i4SFE..ST180,181199008-199309

main90919-15132i3SFE..ST182,183199308-199309

main90919-15136i3SFE..ST182,183199008-199308

main90919-15264i3SGE..ST182,183199108-199309

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12802i4SFI..ST180,181198909-199008

main90919-12817i3SFE..ST182,183198909-199008

main90919-15049i3SGE..ST182,183198909-199108

main90919-15112i4SFE..ST180,181199008-199309

main90919-15133i3SFE..ST182,183199008-199009

main90919-15137i3SFE..ST182,183199008-199202

main90919-15265i3SGE..ST182,183199108-199309

main90919-15349i3SFE..ST182,183199308-199309

sub90919-15581

main90919-15351i3SFE..ST182,183199202-199308

19965BAND, IGNITION COIL, NO.1

main90919-03117i4SFI..ST180,181198909-199008

9011906005

main90119-06005

9046400061

main90464-00061

9046400144

main90464-00144

9046400208

main90464-00208

9092901240

main90929-01240

14 parts on this diagram · 4 diagrams in section
