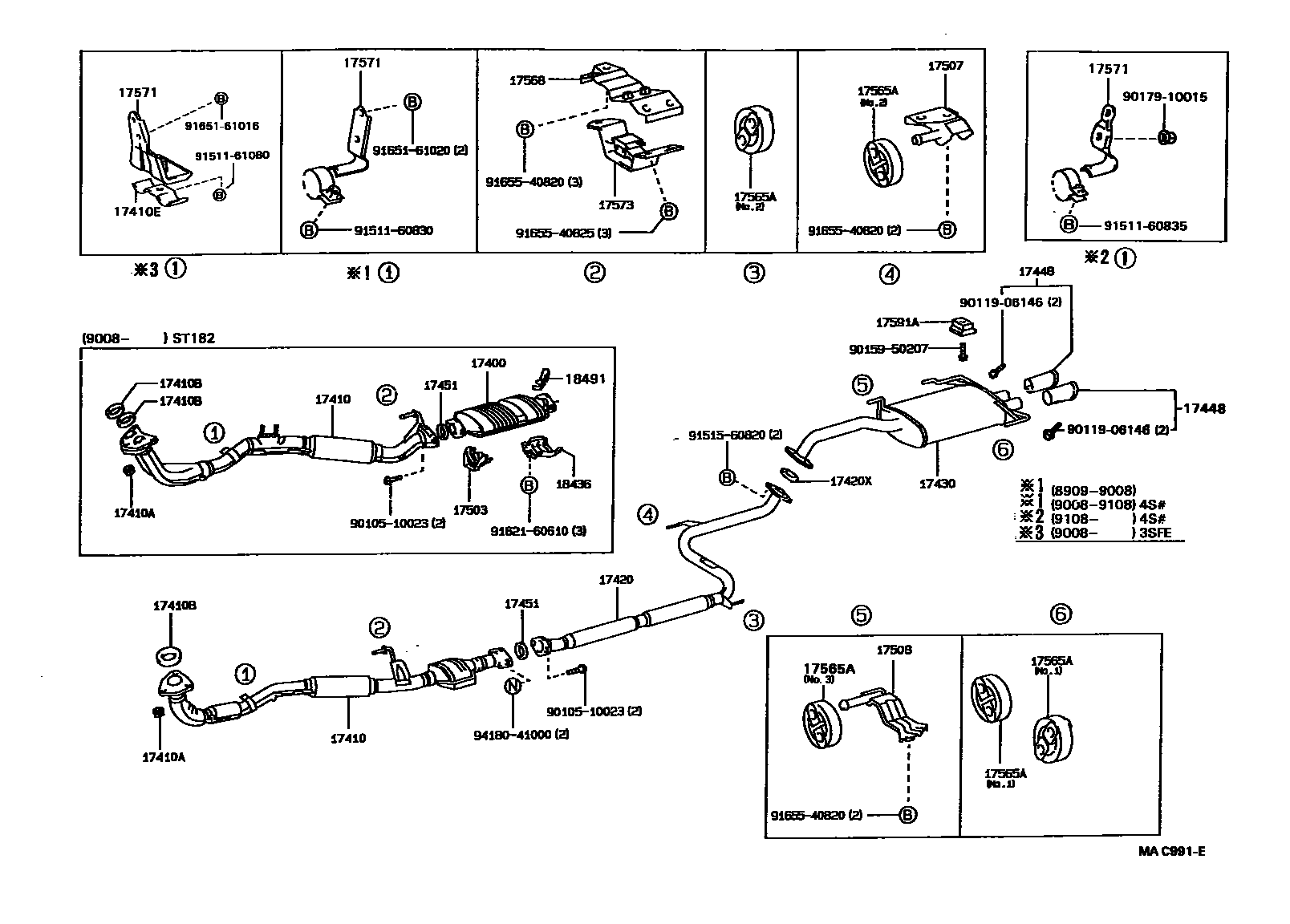

EXHAUST PIPE

0001 1 0002 1

17400CONVERTER ASSY, W/CATALYST

main18450-74230i3S#..ST182198909-199309

17410PIPE ASSY, EXHAUST, FRONT

main17410-74550i3SFE,4SFI..ST180,182198909-199008

sub17410-74551

main17410-74551i4SFE..ST180199008-199309

main17410-74560i3SFE,4SFI..ST181,183198909-199008

sub17410-74561

main17410-74561i4SFE..ST181199008-199309

main17410-74630i3SGE..ST182198909-199309

main17410-74640i3SGE..ST183198909-199309

main17410-74830i3SFE..ST182199008-199309

main17410-74840i3SFE..ST183199008-199309

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i3S#,4SF#..ST18#198909-199309

17410BGASKET, EXHAUST PIPE

main90917-06039i3SFE..ST182,183199008-199309

main90917-06042i4SFE..ST180,181198909-199309

main90917-06055i3SGE..ST182,183198909-199309

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04041i3SFE..ST182,183199008-199309

17420PIPE ASSY, EXHAUST, CENTER

main17420-74401i4SFI..ST180198909-199008

sub17420-74411

main17420-74411i3SFE..ST182198909-199008

main17420-74411i4SFE..ST180199008-199309

main17420-74421i3SGE..ST182198909-199008

main17420-74421i3S#..ST182199008-199309

main17420-74431i3S#..ST183199008-199309

main17420-74431i3SGE..ST183198909-199008

main17420-74461i4SFI..ST181198909-199008

sub17420-74471

main17420-74471i3SFE..ST183198909-199008

main17420-74471i4SFE..ST181199008-199309

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06045i3S#,4SFE..ST18#199104-199309

main90917-06047i3S#,4SF#..ST18#198909-199104

sub90917-06045

17430PIPE ASSY, EXHAUST, TAIL

main17430-74631i3SFE,4SFI..ST181,183198909-199008

sub17430-7A110

main17430-74641i3SFE,4SFI..ST180,182198909-199008

sub17430-7A120

main17430-74681i3SGE..ST182198909-199309

main17430-74721i3SGE..ST183198909-199309

main17430-7A110i3SFE,4SFE..ST181,183199008-199309

main17430-7A120i3SFE,4SFE..ST180,182199008-199309

17448BAFFLE, TAILPIPE

main17448-79015i3S#,4SF#..ST18#198909-199309

17451GASKET, EXHAUST PIPE

main90917-06043i3SGE..ST182198909-199108

main90917-06045i4SFE..ST180,181199104-199309

main90917-06047i4SFE..ST180,181198909-199104

sub90917-06045

main90917-06054i3SGE..ST182198909-199108

main90917-06054i3SFE..ST182198909-199309

17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR

main17503-62010i3SGE..ST182198909-199309

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17570-74020i3S#,4SF#..ST18#198909-199309

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-74050i3S#,4SF#..ST18#198909-199309

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160i3SFE..ST182,183199108-199309

NO.2 & N0.3

main17565-11160i3SFE..ST182,183199108-199309

main17565-63030i3S#,4SF#..ST18#198909-199108

main17565-63060i3S#,4SF#..ST18#198909-199108

main17565-63071i3S#,4SF#..ST18#198909-199108

main17565-74290i3S#,4SFE..ST18#199108-199309

17568STAY, EXHAUST PIPE SUPPORT

main17568-74131i3S#,4SF#..ST18#198909-199309

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-74250i3SFE,4SFI..ST18#198909-199309

main17571-74280i3SFE..ST182,183199008-199309

sub17571-74460

main17571-74310i3SGE..ST182,183199108-199309

17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER

main17573-74050i3S#,4SF#..ST18#198909-199104

sub17573-74051

main17573-74051i3S#,4SFE..ST18#199104-199309

17591ASTOPPER, EXHAUST PIPE SUPPORT

main17591-74010i3S#,4SF#..ST18#198909-199309

18436PROTECTOR, MONOLITHIC CONVERTER, NO.1

main18436-74030i3SGE..ST182,183198909-199309

18491FLANGE, THERMOSENSOR INLET

main18491-28010i3SGE..ST182,183198909-199001

main18491-74010i3SGE..ST182,183199001-199006

sub18491-74020

main18491-74020i3S#..ST182,183199006-199309

9010510023

main90105-10023

9011906146

main90119-06146

9015950207

main90159-50207

9017910015

main90179-10015

9151160830

main91511-60830

9151160835

main91511-60835

9151161080

main91511-61080

9151560820

main91515-60820

9162160610

main91621-60610

9165161016

main91651-61016

9165161020

main91651-61020

9165540820

main91655-40820

9165540825

main91655-40825

9418041000

main94180-41000

34 parts on this diagram · 2 diagrams in section
