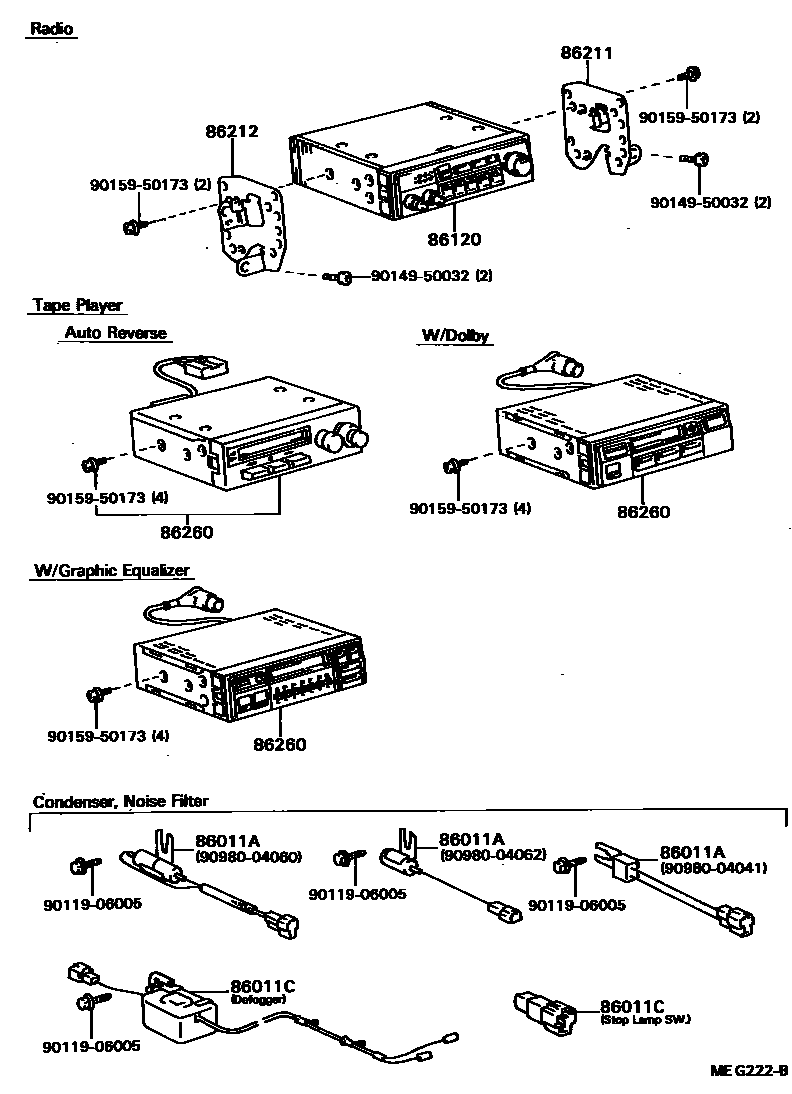

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04041iST162198508-198708

IG COIL

main90980-04060iST16#..F,G,S,X198508-198708

DEFOGGER

main90980-04062iST160..L198508-198708

DEFOGGER

86011CFILTER, NOISE

main90980-05073iST16#198508-198708

STOP LAMP SW

main90980-05111iST16#..F,G,S,X198508-198708

DEFOGGER

86120RECEIVER ASSY, RADIO

main86120-17020iST16#..G,L,S198508-198708

AM/FM MPX 5PB

sub86120-89131

sub86203-20170

main86120-20360iST16#..F,G,S,X198508-198708

*17

main86120-20570iST16#..F,G,X198508-198708

*20

sub86120-20571

sub86203-20180

86211BRACKET, RADIO, NO.1

main86211-20150iST16#198508-198708

86212BRACKET, RADIO, NO.2

main86212-20190iST16#198508-198708

86260TAPE PLAYER ASSY

main86260-19055iST16#..G,L,S198508-198708

AUTO REVERSE

sub86260-14220

main86260-20140iST16#..F,G,S198508-198708

W/DOLBY

sub86260-20150

main86260-20150iST16#..F,G,S,X198508-198708

W/GRAPHIC EQUALIZER

9011906005

main90119-06005

9014950032

main90149-50032

9015950173

main90159-50173

9098004041

main90980-04041

9098004060

main90980-04060

9098004062

main90980-04062

12 parts on this diagram · 1 diagram in section
