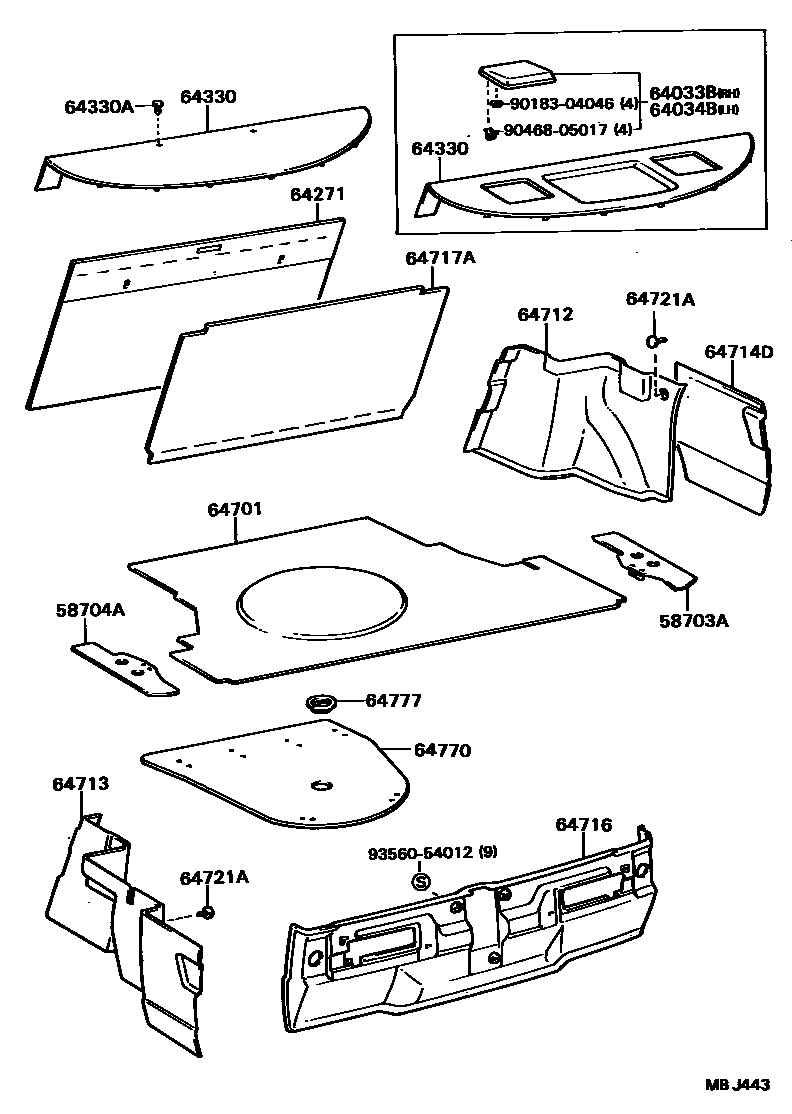

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20040iST16#198508-198708

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20070iST16#198508-198708

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20100-03iST16#..F,G,S,X198508-198708

GRAY,SHADOW GRAY,TRIM1#

main64033-20100-06iST16#..F,G,S,X198508-198708

BROWN,BROWN,TRIM1#,4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-20100-03iST16#..F,G,S,X198508-198708

GRAY,SHADOW GRAY,TRIM1#

main64033-20100-06iST16#..F,G,S,X198508-198708

BROWN,BROWN,TRIM1#,4#

64271BOARD, ROOM PARTITION, NO.1

main64271-20140iST16#198508-198708

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20490-03iST16#..F,G,S,X198508-198708

W/SPEAKER GRILLE,GRAY,SHADOW GRAY,TRIM1#

main64330-20490-06iST16#..F,G,S,X198508-198708

W/SPEAKER GRILLE,BROWN,BROWN,TRIM1#,4#

main64330-20780-03iST16#..G,L,S198508-198708

W/O SPEAKER GRILLE,GRAY,SHADOW GRAY,TRIM1#

main64330-20780-06iST16#..G,L,S198508-198708

W/O SPEAKER GRILLE,BROWN,BROWN,TRIM1#,4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08037-13×2iST16#..G,L,S198508-198708

GRAY,SHADOW GRAY,TRIM1#

main90467-08037-36×2iST16#..G,L,S198508-198708

BROWN,BROWN,TRIM1#,4#

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-20290iST16#..F,G,L,S198508-198708

main64711-20300iST160..X198508-198708

G-LIMITED

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20100iST16#..F,G,L,S198508-198708

main64712-20130iST160..X198508-198708

G-LIMITED

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-20100iST16#..F,G,L,S198508-198708

main64713-20130iST160..X198508-198708

G-LIMITED

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-20190iST16#..F,G,L,S198508-198708

main64714-20220iST160..X198508-198708

G-LIMITED

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-20140iST16#..F,G,L,S198508-198708

main64716-20180iST160..X198508-198708

G-LIMITED

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20120iST16#..F,G,L,S198508-198708

main64717-20160iST160..X198508-198708

G-LIMITED

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-01×3iST16#198508-198708

BLACK,BLACK,TRIM1#

sub90467-06175

64770COVER ASSY, SPARE WHEEL

main64770-20100iST16#198508-198708

64777CLAMP, SPARE WHEEL COVER

main64777-32020iST16#198508-198612

main64777-32030iST16#198612-198708

9018304046

main90183-04046

9046805017

main90468-05017

9356054012

main93560-54012

19 parts on this diagram · 1 diagram in section
