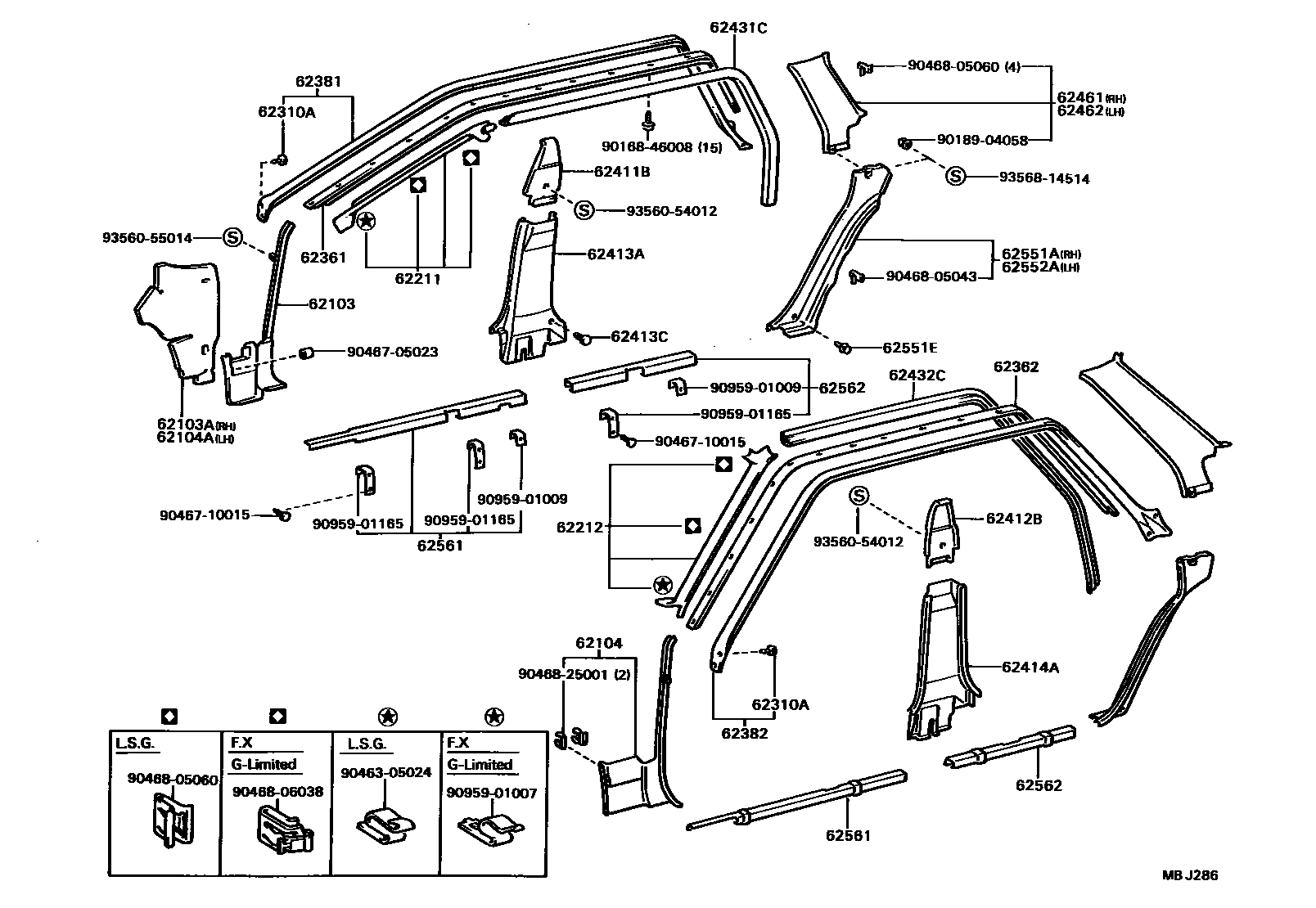

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-20150-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub62101-20150

main62101-20150-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

sub62101-20150

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-20080iST16#198508-198708

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-20110-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62102-20110-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-20080iST16#198508-198708

62211GARNISH, FRONT PILLAR, RH

main62210-20020-03iST160..F,X198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62210-20020-03iST160..F,X198508-198708

G-LIMITED,GRAY,SHADOW GRAY,TRIM1#

main62210-20020-06iST160..F,X198508-198708

BROWN,BROWN,TRIM1#,4#

main62210-20020-06iST160..F,X198508-198708

G-LIMITED,BROWN,BROWN,TRIM1#,4#

main62211-20140-03iST16#..G,L,S198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62211-20140-06iST16#..G,L,S198508-198708

BROWN,BROWN,TRIM1#,4#

62212GARNISH, FRONT PILLAR, LH

main62212-20140-03iST16#..G,L,S198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62212-20140-06iST16#..G,L,S198508-198708

BROWN,BROWN,TRIM1#,4#

main62220-20020-03iST160..F,X198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62220-20020-03iST160..F,X198508-198708

G-LIMITED,GRAY,SHADOW GRAY,TRIM1#

main62220-20020-06iST160..F,X198508-198708

BROWN,BROWN,TRIM1#,4#

main62220-20020-06iST160..F,X198508-198708

G-LIMITED,BROWN,BROWN,TRIM1#,4#

62310ACLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020iST16#198508-198708

62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH

main62361-20010iST16#198508-198708

62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH

main62362-20010iST16#198508-198708

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-20020iST16#198508-198708

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-20020iST16#198508-198708

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-20220-03iST16#198508-198708

GRAY,RED,TRIM1#

main62411-20220-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-20220-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62412-20220-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-20090-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62413-20090-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-06020-13iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub90467-06020

main90467-06020-26iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

sub90467-06020

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-20070-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62414-20070-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

62431CGARNISH, ROOF SIDE RAIL, FRONT RH

main62431-20020-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62431-20020-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

62432CGARNISH, ROOF SIDE RAIL, FRONT LH

main62432-20020-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62432-20020-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

62461GARNISH, ROOF SIDE TRIM, RH

main62470-20130-03iST160..F,X198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62470-20130-03iST160..F,X198508-198708

G-LIMITED,GRAY,SHADOW GRAY,TRIM1#

main62470-20130-06iST160..F,X198508-198708

BROWN,BROWN,TRIM1#,4#

main62470-20130-06iST160..F,X198508-198708

G-LIMITED,BROWN,BROWN,TRIM1#,4#

main62471-20190-03iST16#..G,L,S198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62471-20190-06iST16#..G,L,S198508-198708

BROWN,BROWN,TRIM1#,4#

62462GARNISH, ROOF SIDE TRIM, LH

main62472-20210-03iST16#..G,L,S198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62472-20210-06iST16#..G,L,S198508-198708

BROWN,BROWN,TRIM1#,4#

main62480-20130-03iST160..F,X198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62480-20130-03iST160..F,X198508-198708

G-LIMITED,GRAY,SHADOW GRAY,TRIM1#

main62480-20130-06iST160..F,X198508-198708

BROWN,BROWN,TRIM1#,4#

main62480-20130-06iST160..F,X198508-198708

G-LIMITED,BROWN,BROWN,TRIM1#,4#

62551ACOVER, REAR SEAT SIDE, RH

main62551-20070-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62551-20070-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-06020-13iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub90467-06020

main90467-06020-26iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

sub90467-06020

62552ACOVER, REAR SEAT SIDE, LH

main62552-20060-03iST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62552-20060-06iST16#198508-198708

BROWN,BROWN,TRIM1#,4#

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-20050iST16#198508-198708

RH

main62562-20030iST16#198508-198708

LH

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-20050iST16#198508-198708

RH

main62564-20030iST16#198508-198708

LH

9016846008

main90168-46008

9018904058

main90189-04058

9046305024

main90463-05024

9046705023

main90467-05023

9046710015

main90467-10015

9046805043

main90468-05043

9046805060

main90468-05060

9046806038

main90468-06038

9046825001

main90468-25001

9095901007

main90959-01007

9095901009

main90959-01009

9095901165

main90959-01165

9356054012

main93560-54012

9356055014

main93560-55014

9356814514

main93568-14514

40 parts on this diagram · 1 diagram in section
