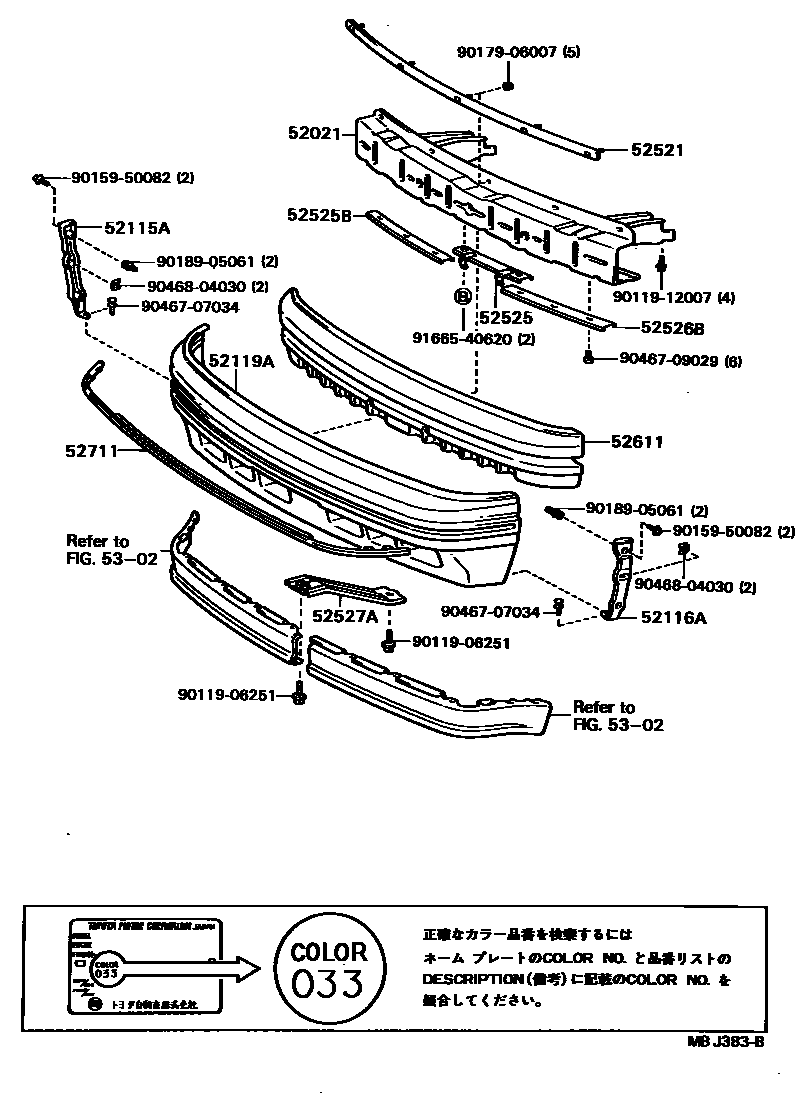

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20090iST16#198508-198708

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20150iST16#198508-198708

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-20150iST16#198508-198708

52119ACOVER, FRONT BUMPER

main52119-20170-02iST16#198508-198708

RED-M,RED METALLIC,3G7

sub52119-20941

main52119-20170-03iST16#198508-198708

SILVER-M,BLUISH SILVER M,160

sub52119-20941

main52119-20170-05iST16#..F,G,S,X198508-198708

BEIGE-M,CAMEL BEIGE METALLIC,2R4

sub52119-20941

main52119-20170-06iST16#198508-198708

BROWN-M,BROWN,4G3

sub52119-20941

main52119-20170-08iST16#198508-198605

WHITE,WHITE,041

sub52119-20941

main52119-20170-13iST16#198508-198708

SILVER-M,ALMONDE SILVER M,154

sub52119-20941

main52119-20170-18iST16#198605-198708

SUPER WHITE,SUPER WHITE 2,040

sub52119-20941

main52119-20380-08iST160..X198609-198612

THE 40TH,SUPERWHITE/BEIGE,S WHT2/BEG,040

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-20060iST16#198508-198509

sub52521-20061

main52521-20061iST16#198509-198708

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52506-20050iST16#198508-198708

52525BRETAINER, FRONT BUMPER, LOWER SIDE RH

main52526-20030iST16#198508-198708

52526BRETAINER, FRONT BUMPER, LOWER SIDE LH

main52526-20030iST16#198508-198708

52527ARETAINER, FRONT BUMPER, LOWER CENTER NO.2

main52527-20020iST16#198508-198708

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20050iST16#198508-198708

52711MOULDING, FRONT BUMPER

main52711-20080iST16#198508-198708

5302

9011906251

main90119-06251

9011912007

main90119-12007

9015950082

main90159-50082

9017906007

main90179-06007

9018905061

main90189-05061

9046707034

main90467-07034

9046709029

main90467-09029

9046804030

main90468-04030

9166540620

main91665-40620

21 parts on this diagram · 1 diagram in section
