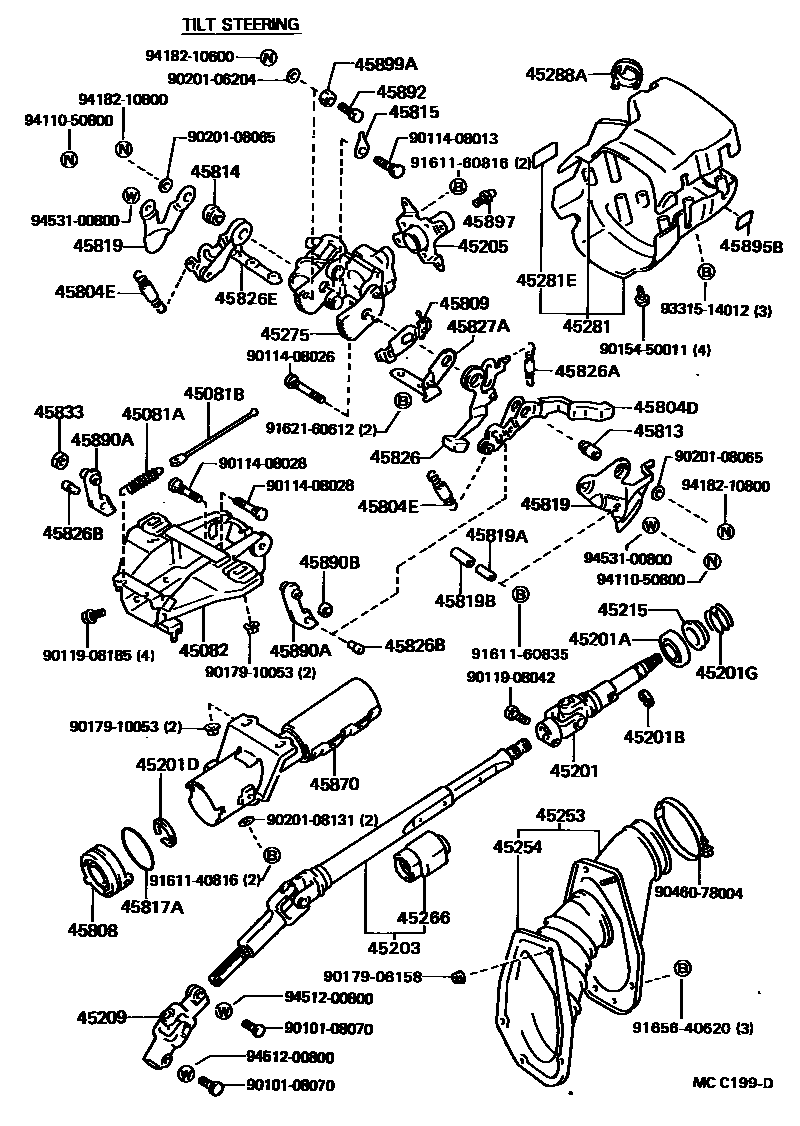

STEERING COLUMN & SHAFT
45081ASPRING, TENSION(FOR TILT STEERING)
45081BCORD(FOR TILT STEERING)
45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45201SHAFT SUB-ASSY, STEERING MAIN
45201ABEARING(FOR STEERING MAIN SHAFT)
UPR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201DRING(FOR STEERING MAIN SHAFT)
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45205TUBE SUB-ASSY, STEERING COLUMN
sub45205-20201
45209YOKE SUB-ASSY, STEERING SLIDING
sub45209-16010
45215COLLAR, MAIN SHAFT BEARING THRUST
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45266COVER, STEERING INTERMEDIATE SHAFT DUST
45281HOUSING, STEERING COLUMN
SHADOW GRAY,W/TELESCOPIC STRG,SHADOW GRAY,TRIM1#
sub45287-20907
45281EPLATE, SAFETY CAUTION
45288ASPACER, COLUMN COVER
45804DLEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL)
W/TELESCOPIC STEERING
45804ESPRING, TENSION(FOR STEERING TILT LEVER)
W/TELESCOPIC STEERING
45808STOPPER SUB-ASSY, STEERING SHAFT THRUST
45809COVER SUB-ASSY, ADJUSTER MEMORY
W/TELESCOPIC STEERING
45813COLLAR, TILT STEERING SUPPORT, NO.1
45814COLLAR, TILT STEERING SUPPORT, NO.2
45815SHIM, TILT STEERING SUPPORT
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45819RETAINER, TILT LEVER
LH
RH
LH,W/TELESCOPIC STEERING
45819ACOLLAR(FOR TILT LEVER RETAINER)
45819BCUSHION(FOR TILT LEVER RETAINER)
45826LEVER, STEERING TILT
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
45826BPIN(FOR STEERING TILT LEVER)
45826ELEVER, STEERING TILT(FOR TILT ADJUST)
W/TELESCOPIC STEERING
45827ALEVER, STEERING TILT SUB
45833NUT, TILT STEERING ADJUSTING, NO.1
45870TUBE ASSY, STEERING COLUMN
45890APAWL ASSY, TILT STEERING
LH
RH
45890BSPACER(FOR TILT STEERING PAWL)
45892BOLT, TILT STEERING SUPPORT STOPPER
45897BOLT, STEERING LOCK SET
45899ACOVER, TILT STEERING SUPPORT STOPPER
9010108070
main90101-08070
9011408013
main90114-08013
9011408026
main90114-08026
9011408028
main90114-08028
9011908042
main90119-08042
9011908185
main90119-08185
9015450011
main90154-50011
9017906158
main90179-06158
9017910053
main90179-10053
9020106204
main90201-06204
9020108065
main90201-08065
9020108131
main90201-08131
9046078004
main90460-78004
9161140816
main91611-40816
9161160816
main91611-60816
9161160835
main91611-60835
9162160612
main91621-60612
9165640620
main91656-40620
9331514012
main93315-14012
9411050800
main94110-50800
9418210600
main94182-10600
9418210800
main94182-10800
9451200800
main94512-00800
9453100800
main94531-00800
68 parts on this diagram · 2 diagrams in section
