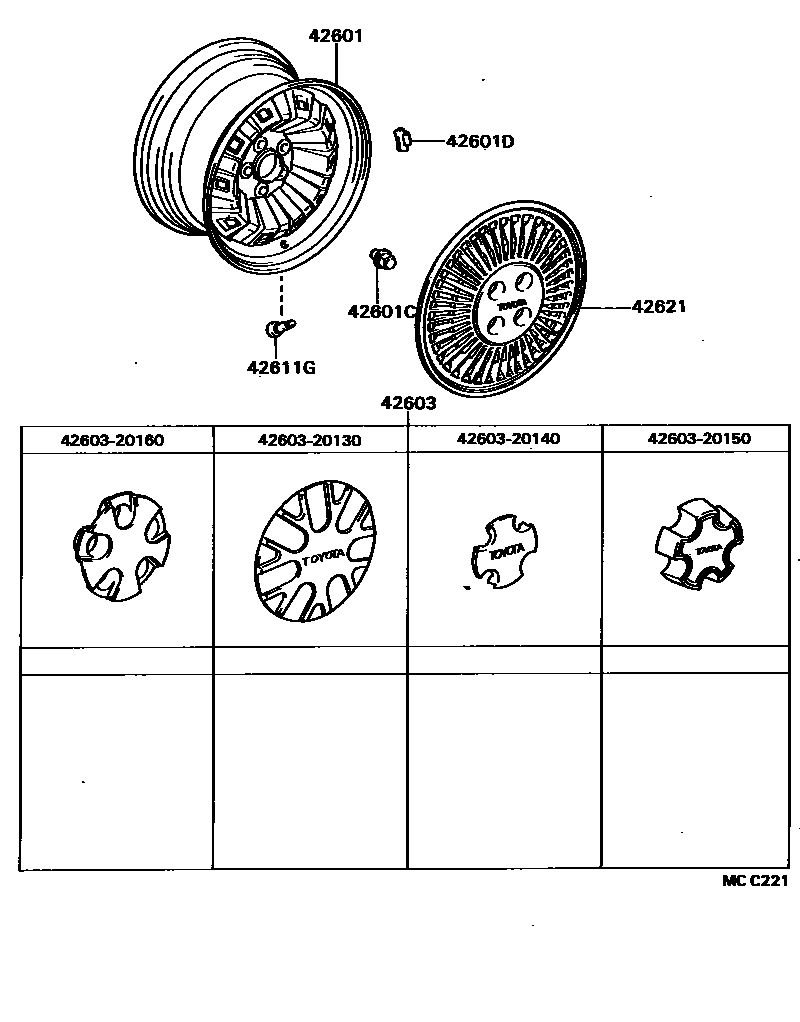

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-16200iST160198508-198708

main42611-20300×4iST160..F198508-198708

main42611-20310×4iST160..L198508-198708

main42611-20330×4iST160..L198704-198707

main42611-20340×4iST160..F,S,X198508-198708

sub42611-20350

main42611-20360×4iST162198508-198708

main42611-20370×4iST162198508-198708

main42611-20380iST162198508-198708

sub42611-20610

main42611-20460×4iST160..X198609-198708

THE 40TH

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iST160..L198508-198708

W/5J-13,TYPE D

main90942-01021×16iST160..F,S,X198605-198708

main90942-01027×16iST160..F,S,X198508-198605

main90942-01033×16iST160..X198609-198708

THE 40TH

main90942-01045×16iST160..F,S,X198508-198612

W/ALUMI WHEEL

main90942-01060×16iST160..L198704-198707

W/ALUMI WHEEL

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iST16#198508-198708

main90942-03020iST16#198508-198708

main90942-03022iST16#198508-198708

main90942-03025iST16#198508-198708

main90942-03027iST16#198508-198708

main90942-03029iST16#198508-198708

main90942-03031iST16#198508-198708

main90942-03041iST16#198508-198708

main90942-03098iST16#198508-198708

main90942-03099iST16#198508-198708

main90942-03100iST16#198508-198708

main90942-03101iST16#198508-198708

main90942-03102iST16#198508-198708

main90942-03108iST16#198508-198708

main90942-03109iST16#198508-198708

main90942-03146iST16#..F,G,S,X198508-198708

main90942-03147iST16#..F,G,S,X198508-198708

main90942-03148iST16#..F,G,S,X198508-198708

main90942-03149iST16#..F,G,S,X198508-198708

main90942-03150iST16#..F,G,S,X198508-198708

main90942-03151iST16#..F,G,S,X198508-198708

main90942-03152iST16#..F,G,S,X198508-198708

main90942-03153iST16#..F,G,S,X198508-198708

main90942-03154iST16#..F,G,S,X198508-198708

main90942-03155iST16#..F,G,S,X198508-198708

main90942-03156iST16#..F,G,S,X198508-198708

main90942-03157iST16#..F,G,S,X198508-198708

main90942-03158iST16#..F,G,S,X198508-198708

main90942-03159iST16#..F,G,S,X198508-198708

main90942-03160iST16#..F,G,S,X198508-198708

main90942-03161iST16#198508-198708

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20130×4iST160..L198508-198708

main42603-20140×4iST160..F,S,X198508-198708

W/ALUMI WHEEL

main42603-20150×4iST162198508-198708

main42603-20160×4iST162198508-198708

W/ALUMI WHEEL

main42603-20180×4iST160..X198609-198708

THE 40TH

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iST16#198508-198708

42621CAP, WHEEL

main42621-20240×4iST160..L198704-198707

sub42621-20290

4260320130ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20130

4260320140ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20140

4260320150ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20150

4260320160ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20160

10 parts on this diagram · 2 diagrams in section
