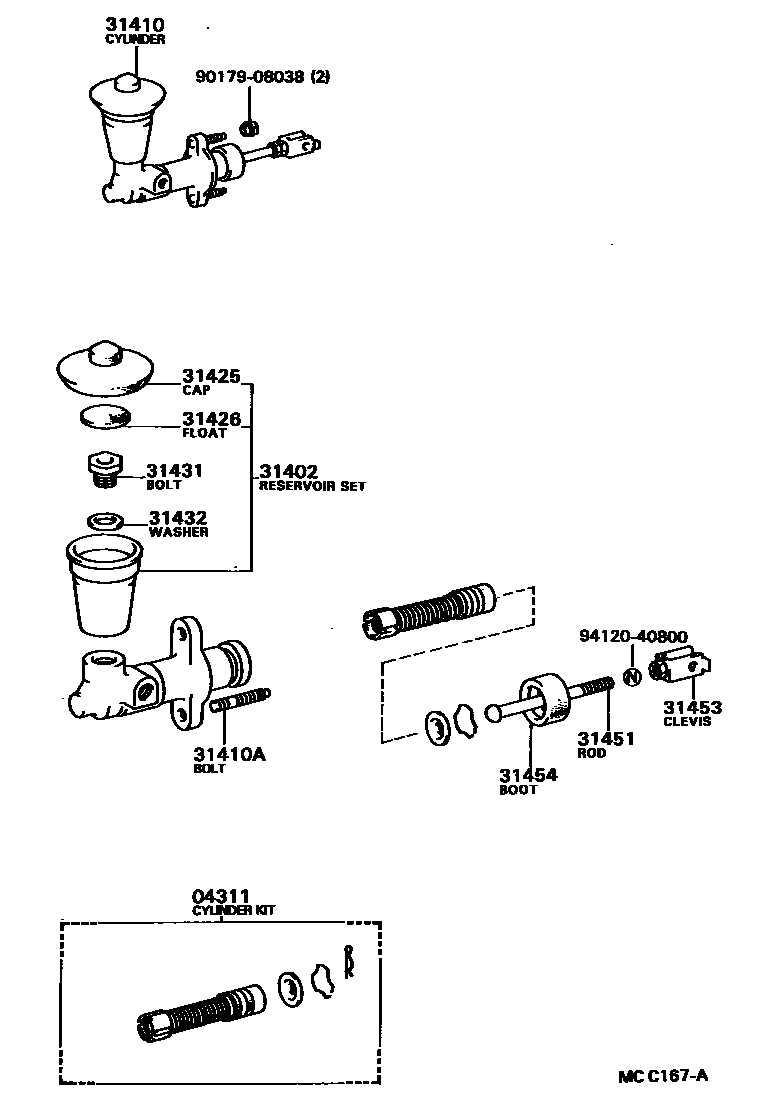

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-32020iST16#..5F198508-198704

sub04311-32021

main04311-32022iST16#..5F198704-198708

sub04311-32023

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iST16#..5F198508-198708

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20192iST16#..5F198508-198704

sub31410-20193

main31410-20193iST16#..5F198704-198708

sub31410-20194

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iST16#..5F198508-198708

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iST16#..5F198508-198708

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iST16#..5F198508-198708

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iST16#..5F198508-198708

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iST16#..5F198508-198708

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-32010iST16#..5F198508-198708

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-22010iST16#..5F198508-198610

sub31453-35010

main31453-35010iST16#..5F198610-198708

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iST16#..5F198508-198708

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
