CAMSHAFT & VALVE

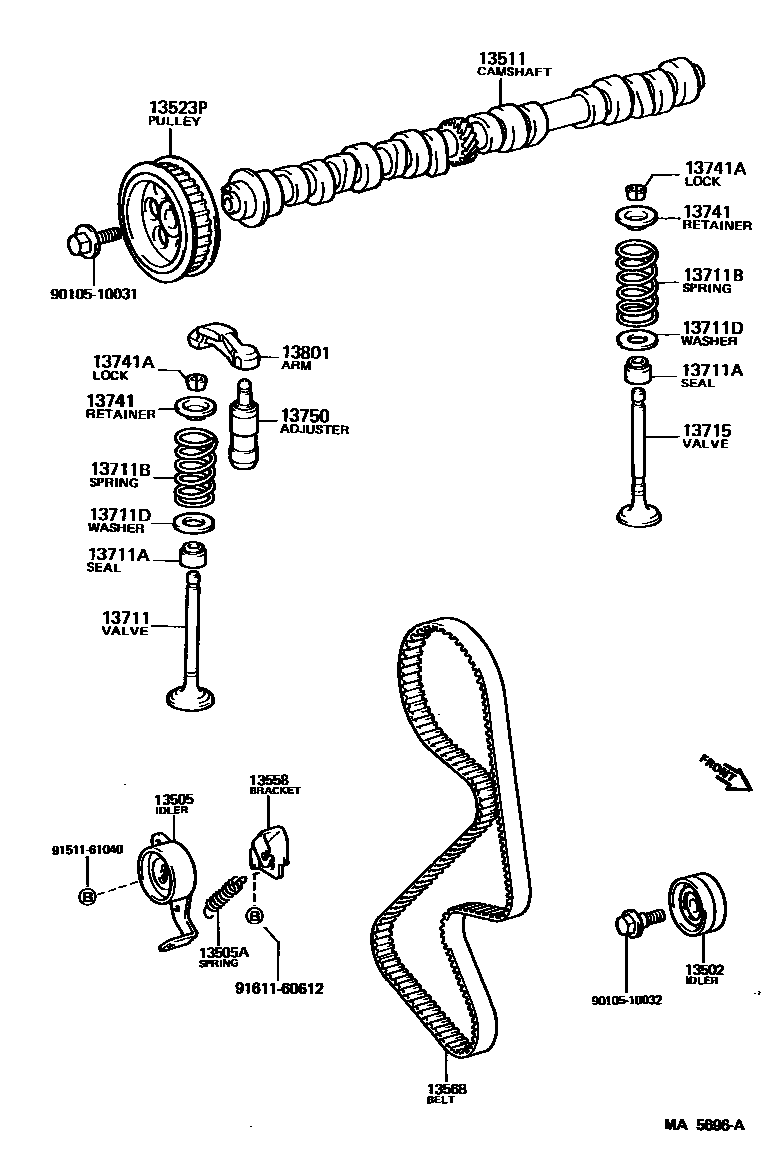

Parts diagram
13502IDLER SUB-ASSY, TIMING BELT, NO.2
main13503-63010i198508-198708
*53
sub13503-63011
main13503-88360i198508-198608
*54
main13503-88380i198608-198708
*54
sub13503-63011
13505IDLER SUB-ASSY, TIMING BELT, NO.1
main13505-63010i198508-198708
sub13505-63011
main13505-88360i198508-198708
sub13505-74030
13505ASPRING, TENSION(FOR IDLER)
main90506-18045i198508-198708
main90506-20039i198508-198708
13511CAMSHAFT
main13501-63010i198508-198708
sub13501-63011
main13501-79015i198508-198708
13523PPULLEY, CAMSHAFT TIMING
main13523-63010i198508-198708
main13523-63020i198508-198708
main13523-88360×2i198508-198708
sub13523-88301
13558BRACKET, SPRING(FOR IDLER)
main13558-63010i198508-198708
13568BELT, TIMING
main13568-63020i198508-198708
sub13568-63022
main13568-88361i198508-198708
sub13568-88381
13711VALVE, INTAKE
main13711-63010×4i198508-198708
main13711-88361×8i198508-198708
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02057×8i198508-198708
sub90913-02094
main90913-02062×8i198508-198708
INTAKE SIDE
main90913-02066×8i198508-198708
EXHAUST SIDE
13711BSPRING, COMPRESSION(FOR INNER)
main90501-32016×16i198508-198708
*54
sub90501-32022
main90501-33003×16i198508-198708
*53
sub90501-32009
main90501-45014×8i198508-198708
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
main90201-21002×8i198508-198708
13715VALVE, EXHAUST
main13715-63011×4i198508-198708
main13715-88360×8i198508-198708
13741RETAINER, VALVE SPRING
main13741-63010×8i198508-198708
main13741-88300×16i198508-198708
13741ALOCK, VALVE SPRING RETAINER
main90913-03005×16i198508-198708
main90913-03021×32i198508-198708
13750ADJUSTER ASSY, VALVE LASH
main13750-70010×8i198508-198708
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13811-63010×8i198508-198708
9010510031
main90105-10031
9010510032
main90105-10032
9151161040
main91511-61040
9161160612
main91611-60612

20 parts on this diagram · 2 diagrams in section
