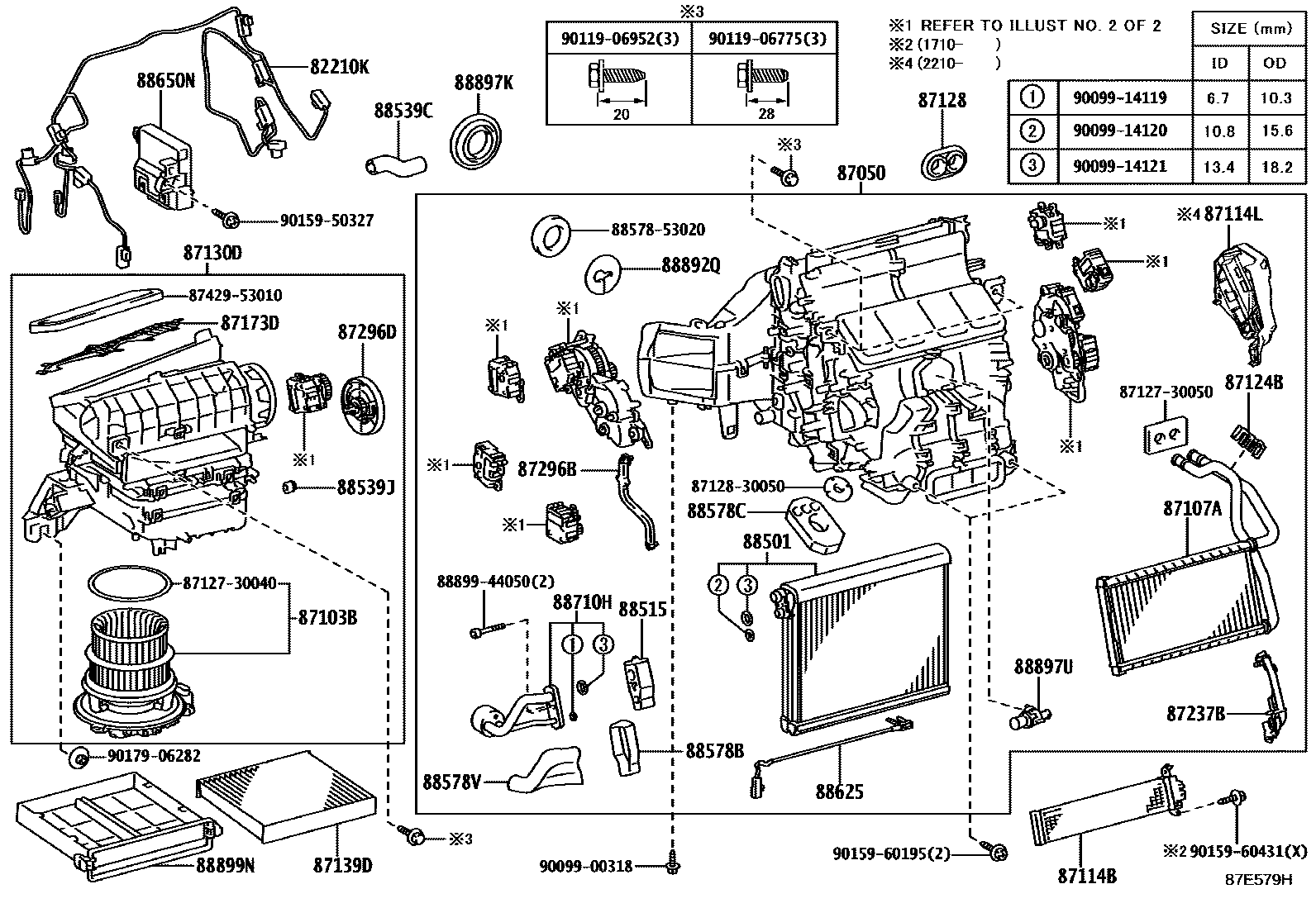

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1�������

82210KHARNESS ASSY, AIR CONDITIONER

main82212-30120iUSC10201409-201902

87050RADIATOR ASSY, AIR CONDITIONER

main87050-24070iUSC10202301

main87050-30252iUSC10201409-201412

sub87050-30253

main87050-30253iUSC10201501-201503

sub87050-30600

sub87128-30060

main87050-30600iUSC10201503-201609

sub87050-30601

main87050-30601iUSC10201610-202301

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-30480iUSC10201409-201507

sub87103-30481

main87103-30481iUSC10201507-201902

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30571iUSC10201409-201503

sub87107-30580

sub87128-30060

main87107-30580iUSC10201503-201902

87114BCOVER, HEATER

main87114-30010iUSC10201409-201902

87114LCOVER, HEATER, NO.2

main87114-53010iUSC10202301

87124BCLAMP, HEATER

main87124-33070iUSC10201409-201902

87128GROMMET, HEATER

main87128-30060iUSC10201503-201902

main87128-35020iUSC10201409-201502

87130DBLOWER ASSY

main87130-30801iUSC10201409-201507

sub87130-30802

main87130-30802iUSC10201507-201808

sub87130-30830

main87130-30830iUSC10201809-201902

87139DELEMENT, AIR REFINER

main87139-30100iUSC10201409-201902

87173DPROTECTOR HEATER

main87173-53010iUSC10201409-201902

87237BCOVER, HEATER PIPING

main87237-30010iUSC10201409-202301

87296BLEVER, HEATER AIR DAMPER CONTROL

main87296-53010iUSC10201409-201902

87296DLEVER, HEATER AIR DAMPER CONTROL, NO.2

main87296-53030iUSC10201409-201902

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A190iUSC10201409-202301

main88501-3A210iUSC10202301

88515VALVE, COOLER EXPANSION

main88515-24050iUSC10202301

main88515-30780iUSC10201409-202301

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88839-30010iUSC10201409-202301

88539JHOSE, DRAIN COOLER

main88539-30A00iUSC10201409-201902

88578BPACKING, COOLING UNIT, NO.1

main88578-3A010iUSC10201409-202301

88578CPACKING, COOLING UNIT, NO.2

main88578-52130iUSC10201409-201501

sub88578-52131

main88578-52131iUSC10201501-201902

88578VPACKING, COOLING UNIT, NO.3

main88578-30890iUSC10201409-202301

88625THERMISTOR, COOLER, NO.1

main88620-30050iUSC10201409-201902

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-24440iUSC10201409-201510

sub88650-24441

main88650-24441iUSC10201510-201609

main88650-24442iUSC10201609-201711

main88650-24443iUSC10201711-201902

main88650-24560iUSC10201903-202009

main88650-24561iUSC10202009-202301

main88650-24582iUSC10202301

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-3A410iUSC10201409-202301

88892QPLATE, COOLER

main88892-30620iUSC10201409-201902

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iUSC10201709-201902

main88897-35030iUSC10201409-201708

88897UPIPE, ASPIRATOR

main88897-32090iUSC10201409-202301

88899NPLATE, COVER

main88899-3A090iUSC10201409-201902

8712730040PACKING, HEATER AIR DAMPER

main87127-30040

8712730050PACKING, HEATER AIR DAMPER

main87127-30050

8712830050GROMMET, HEATER

main87128-30050

8742953010PIPE, COMBUSTION HEATER OUTLET

main87429-53010

8857853020PAKING, COOLER AIR DUCT

main88578-53020

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906775

main90119-06775

9011906952

main90119-06952

9015950327

main90159-50327

9015960195

main90159-60195

9015960431

main90159-60431

9017906282

main90179-06282

44 parts on this diagram · 2 diagrams in section
