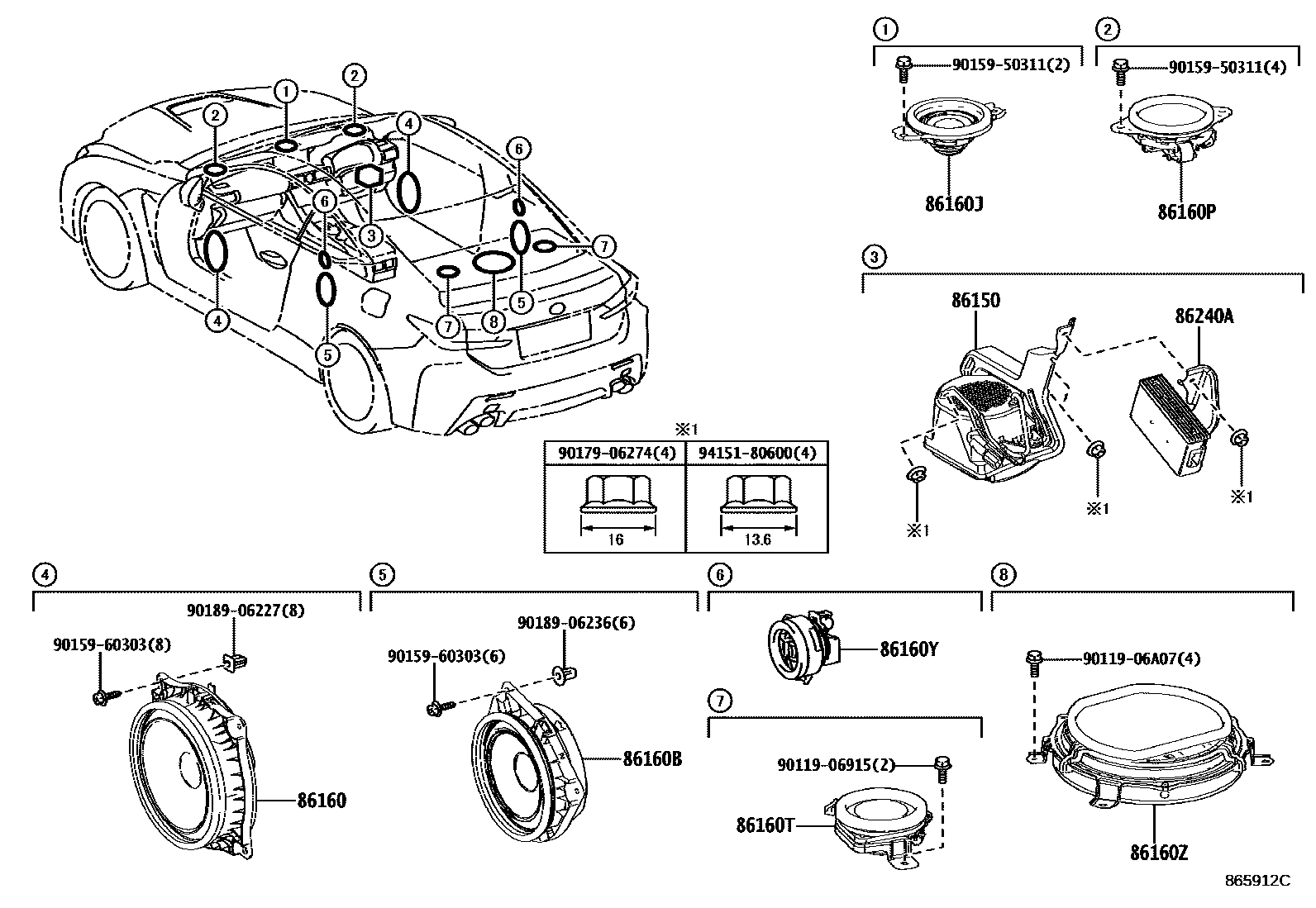

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-24260iUSC10201903-202404

main86150-24260iUSC10201409-201902

86160SPEAKER ASSY, FRONT NO.1

main86160-0WX70iUSC10201409-201902

main86160-53370iUSC10201409-201902

86160BSPEAKER ASSY, REAR

main86160-0WW30iUSC10201409-201902

main86160-33820iUSC10201409-201902

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WV80iUSC10201409-202301

main86160-33790iUSC10201409-202301

main86160-33A50iUSC10202301

main86160-78090iUSC10202301

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WV80iUSC10201409-202301

main86160-30D90iUSC10201409-201609

main86160-33A40iUSC10202301

main86160-48380iUSC10201609-202301

main86160-78090iUSC10202301

86160TSPEAKER ASSY, REAR HEADER

main86150-0W190iUSC10201409-202301

main86150-24230iUSC10202301

86160YSPEAKER ASSY, REAR NO.2

main86160-0WX20iUSC10201409-201902

86160ZSPEAKER ASSY, REAR NO.3

main86160-0WW40iUSC10201409-201902

main86160-30E50iUSC10201409-201902

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-24020iUSC10201409-201712

main86240-24130iUSC10201712-201902

main86240-24130iUSC10201903-202404

9011906915

main90119-06915

9011906A07

main90119-06A07

9015950311

main90159-50311

9015960303

main90159-60303

9017906274

main90179-06274

9018906227

main90189-06227

9018906236

main90189-06236

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
