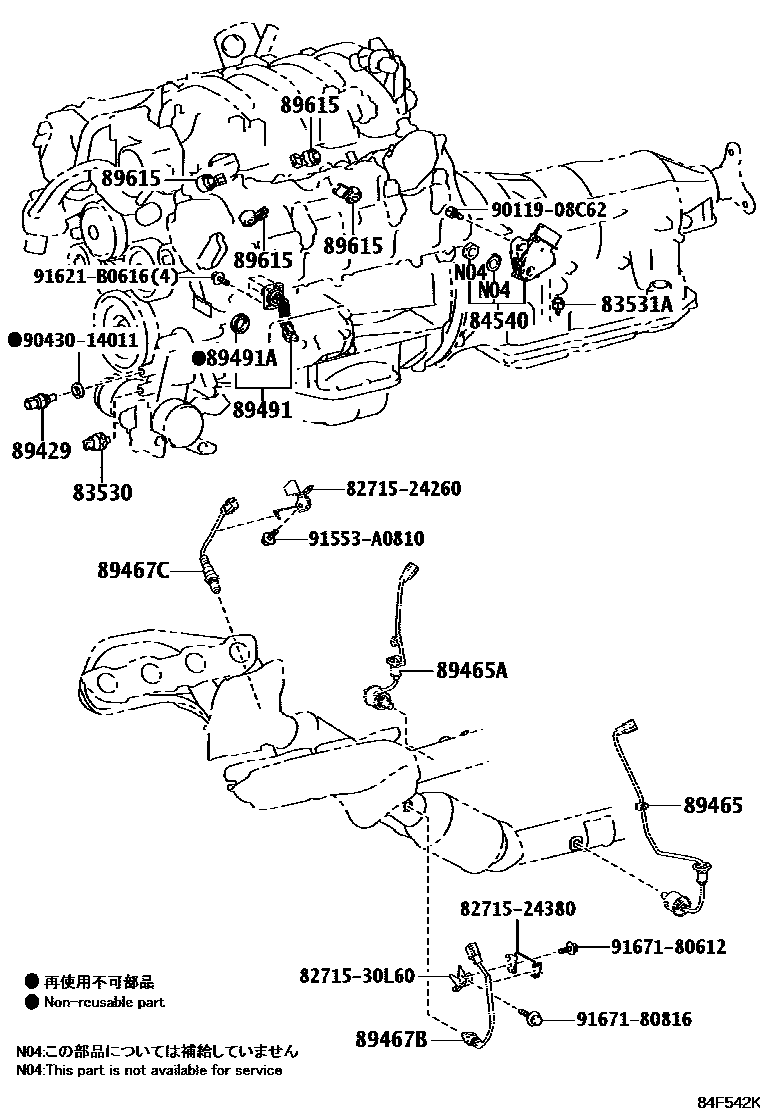

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUSC10201409-201902

main83530-60020iUSC10201409-201902

83531ASWITCH, OIL PRESSURE

main83531-50010iUSC10201409-201902

84540SWITCH ASSY, NEUTRAL START

main84540-71010iUSC10201409-201902

89429SENSOR, OIL TEMPERATURE

main89429-53010iUSC10201409-201902

89465SENSOR, OXYGEN

main89465-53290iUSC10201409-201902

89465ASENSOR, OXYGEN NO.2

main89465-53300iUSC10201409-201902

89467BSENSOR, AIR FUEL RATIO

main89467-24010iUSC10201409-201902

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-24020iUSC10201409-201902

89491SENSOR, ENGINE OIL LEVEL

main89491-24020iUSC10201409-201902

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iUSC10201409-201902

89615SENSOR, KNOCK CONTROL

main89615-20090iUSC10201409-201902

8271524260BRACKET,WIRING HARNESS CLAMP

main82715-24260

8271524380BRACKET,WIRING HARNESS CLAMP

main82715-24380

8271530L60BRACKET,WIRING HARNESS CLAMP

main82715-30L60

9011908C62

main90119-08C62

9043014011

main90430-14011

91553A0810

main91553-A0810

91621B0616

main91621-B0616

9167180612

main91671-80612

9167180816

main91671-80816

20 parts on this diagram · 11 diagrams in section
