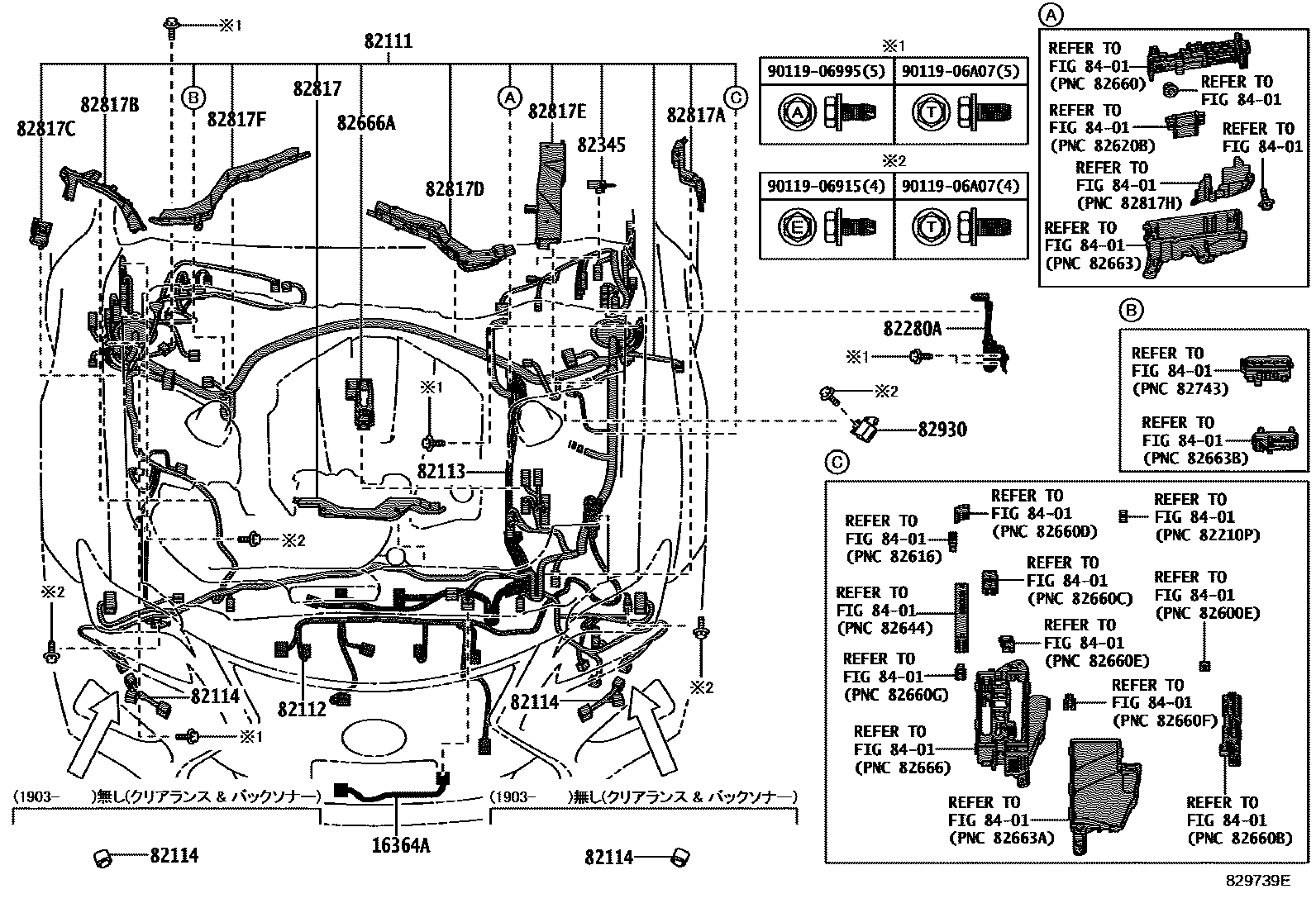

WIRING & CLAMP

0001 1�������� 0002 1����� 0003 1������������ 0004 1��� 0005 1��� & ��� 0006 1��� 0007 1����� & ������ 0008 1���� 1/2 0009 1���� 2/2

16364AWIRE, COOLING FAN

main16364-38040i2URGSE..USC10201409-201902

82111WIRE, ENGINE ROOM MAIN

main82111-24D10iUSC10201409-201609

main82111-24D11iUSC10201609-201711

main82111-24D12iUSC10201711-201902

main82111-24U70iUSC10201903-202009

main82111-24U71iUSC10202009-202210

main82111-24U72iUSC10202301-202310

main82111-24U73iUSC10202310-202501

main82111-24U74iUSC10202501

main82111-24V00iUSC10202210-202301

82112WIRE, ENGINE ROOM, NO.2

main82112-24160iUSC10201409-201711

main82112-24170iUSC10201409-201711

main82112-24171iUSC10201711-201902

main82112-24360iUSC10201903-202009

main82112-24361iUSC10202009

82113WIRE, ENGINE ROOM, NO.3

main82113-24050iUSC10201409-201902

82114WIRE, ENGINE ROOM, NO.4

main82114-24020iUSC10201409-201902

main82114-24030iUSC10201409-201902

main82114-24080iUSC10201903-202301

main82114-24080iUSC10202301

main82114-53100iUSC10201903-202301

82280AWIRE ASSY, BATTERY TO COWL TOP SIDE

main82280-24030iUSC10201409-201902

82345DIODE

main82345-32020iUSC10201409-201902

82666AHOLDER, CONNECTOR NO.2

main82666-30A70iUSC10201409-201902

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-24A40iUSC10201409-201902

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-24A70iUSC10201409-201902

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-30D30iUSC10201409-201902

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-30K20iUSC10201409-202310

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-30M20iUSC10201409-201902

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-30A90iUSC10201910

main82817-30Z00iUSC10201409-201909

sub82817-30A90

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-53280iUSC10201409-201902

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-30040iUSC10201409-201902

8401

9011906915

main90119-06915

9011906995

main90119-06995

9011906A07

main90119-06A07

20 parts on this diagram · 9 diagrams in section
