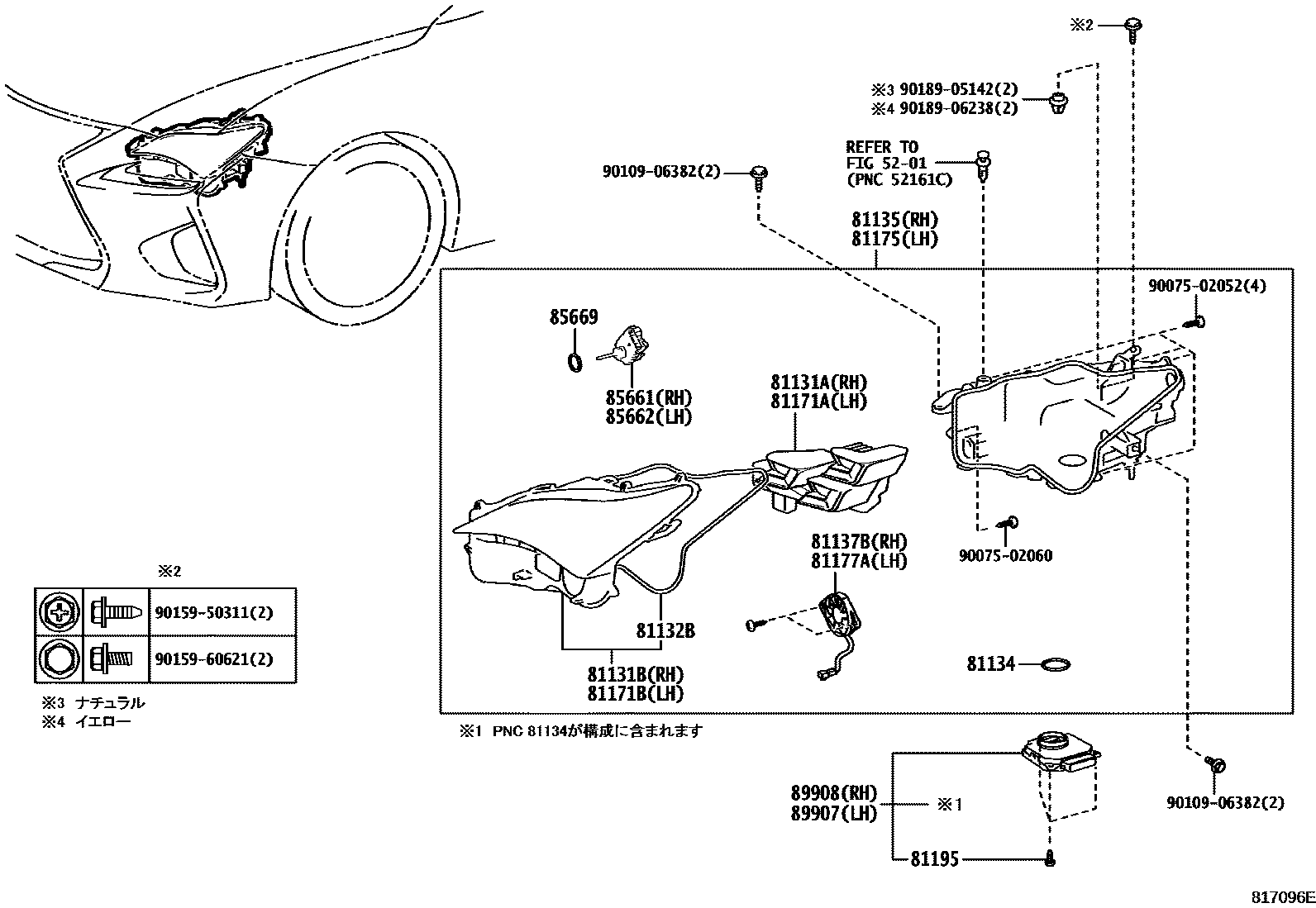

HEADLAMP

0001 1 0002 1

5201

81131AUNIT, HEADLAMP, RH

main81130-24230iUSC10201409-201902

81131BHEAD LAMP LENS, RH

main81131-24230iUSC10201409-201902

main81131-24360iUSC10201903

81132BGASKET, HEADLAMP LENS

main81132-30E40×2iUSC10201903

main81132-52180×2iUSC10201409-201902

81134GASKET, HEADLAMP

main90075-23003×2iUSC10201409-201902

81135UNIT ASSY, HEADLAMP, RH

main81145-24230iUSC10201409-201902

main81145-24360iUSC10201903-202309

main81145-24361iUSC10202309

81137BFAN, HEADLAMP, RH

main81137-78090iUSC10201409-201902

81171AUNIT, HEADLAMP, LH

main81170-24230iUSC10201409-201902

81171BHEAD LAMP LENS, LH

main81171-24230iUSC10201409-201902

main81171-24360iUSC10201903

81175UNIT ASSY, HEADLAMP, LH

main81185-24230iUSC10201409-201902

main81185-24360iUSC10201903-202309

main81185-24361iUSC10202309

81177AFAN, HEADLAMP, LH

main81137-78090iUSC10201409-201902

81195SCREW, HEADLAMP

main90075-02052×10iUSC10201903

main90075-02056×6iUSC10201409-201902

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020iUSC10201409-201902

main85661-48050iUSC10201903

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020iUSC10201409-201902

main85661-48050iUSC10201903

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iUSC10201409-201902

89907COMPUTER SUB-ASSY, HEADLAMP, LH

main89907-24030iUSC10201409-201509

main89907-24031iUSC10201510-201902

main89907-24080iUSC10202009

main89907-24130iUSC10201903-202009

89908COMPUTER SUB-ASSY, HEADLAMP, RH

main89908-24030iUSC10201409-201509

main89908-24031iUSC10201510-201902

main89908-24080iUSC10202009

main89908-24130iUSC10201903-202009

9007502052

main90075-02052

9007502060

main90075-02060

9010906382

main90109-06382

9015950311

main90159-50311

9015960621

main90159-60621

9018905142

main90189-05142

9018906238

main90189-06238

24 parts on this diagram · 2 diagrams in section
