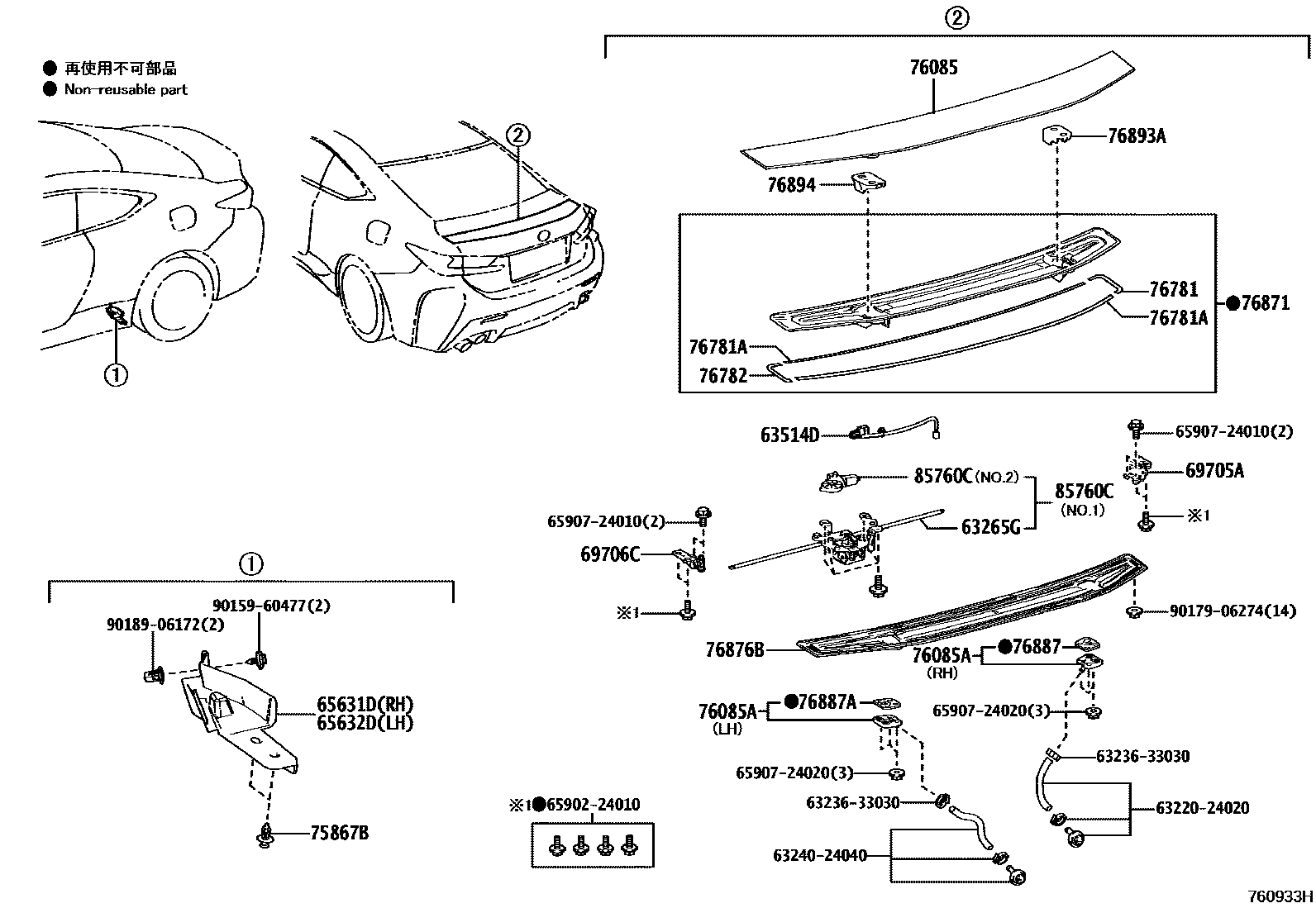

MUDGUARD & SPOILER
63265GGEAR, REAR SPOILER DRIVE
63514DWIRE, CONNECTOR
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
69705ALINK SUB-ASSY, TOP COVER LOCK CONTROL, RH
69706CLINK SUB-ASSY, TOP COVER LOCK CONTROL, LH
75867BCLIP, ROCKER PANEL MOULDING
76085SPOILER SUB-ASSY, REAR
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
SONIC TITANIUM,1J7
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
NAPLES YELLOW CONTRAST LA,5C1
BLUE,8X1
76781TAPE, REAR SPOILER, UPPER RH
76781ATAPE, REAR SPOILER, UPPER NO.1
76782TAPE, REAR SPOILER, UPPER LH
76871SPOILER, REAR
76876BINSERT, REAR SPOILER
76887SEAL, REAR SPOILER
76887ASEAL, REAR SPOILER
76893ACOVER, REAR SPOILER, RH
76894COVER, REAR SPOILER, LH
6322024020MOULDING ASSY, ROOF WINDOW, LOWER
main63220-24020
6323633030CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE
main63236-33030
6324024040HOLDER ASSY, REMOVABLE ROOF GLASS, OUTER
main63240-24040
6590224010FASTENER SET, TARPAULIN RAIL ADJUSTER
main65902-24010
6590724010BOLT, REAR SPOILER
main65907-24010
6590724020BOLT, REAR SPOILER
main65907-24020
9015960477
main90159-60477
9017906274
main90179-06274
9018906172
main90189-06172
28 parts on this diagram · 5 diagrams in section
