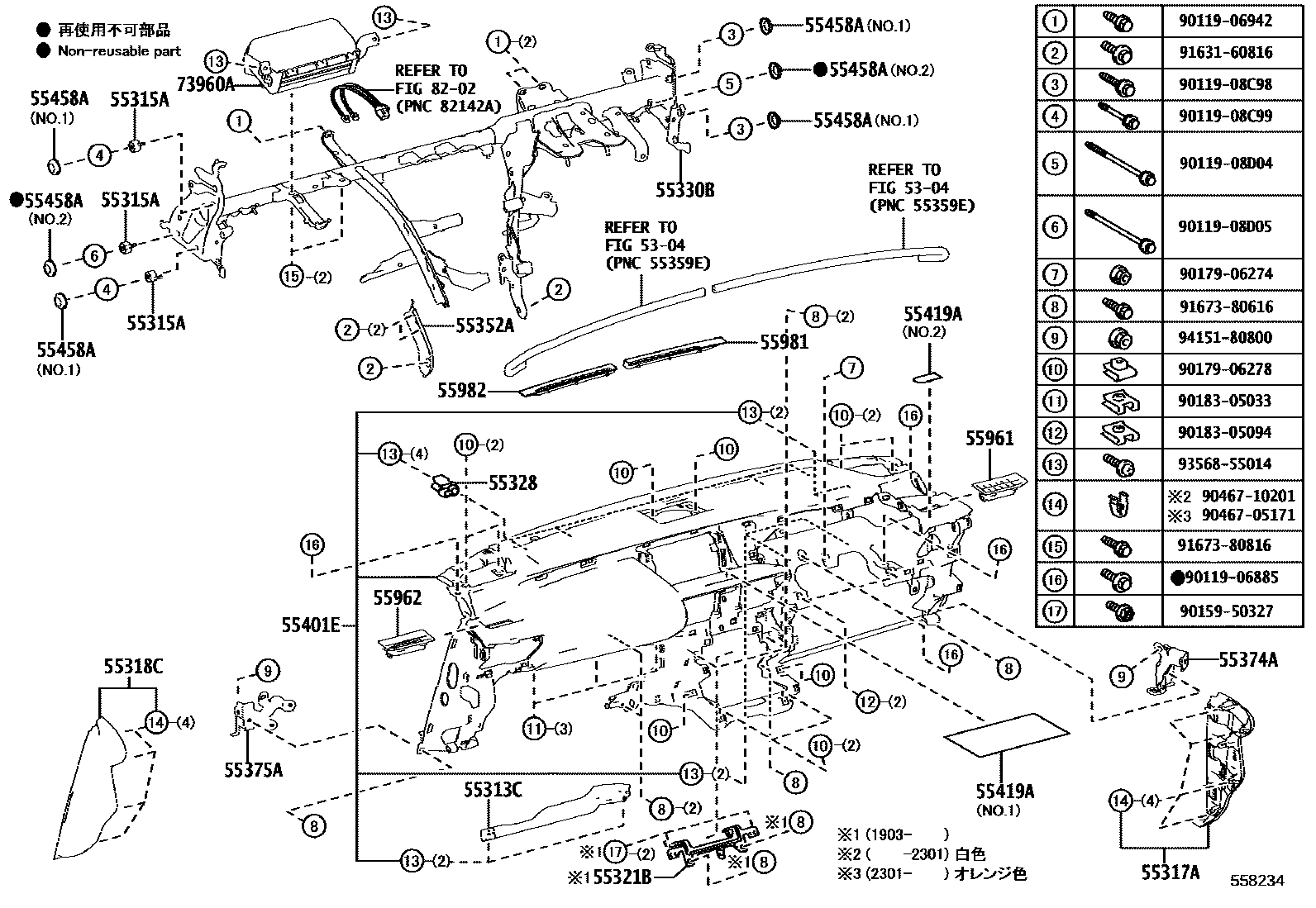

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

5304

55313CBRACKET, GLOVE COMPARTMENT

main55313-53040iUSC10201903

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×3iUSC10201409-201902

55317APANEL, INSTRUMENT SIDE, RH

main55317-53100-C0iUSC10201409-201902

BLACK,TRIM0#,2#,3#,4#,8#

main55317-53140-C1iUSC10202301

BLACK,TRIM0#,2#,3#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-53070-C0iUSC10201409-201902

BLACK,TRIM0#,2#,3#,4#,8#

main55318-53110-C1iUSC10202301

BLACK,TRIM0#,2#,3#,8#

55321BBRACKET, INSTRUMENT PANEL, NO.1

main86219-53010iUSC10201903

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×4iUSC10201409-201902

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-53350iUSC10201409-201711

main55330-53390iUSC10201711-201902

sub55330-53391

main55330-24130supersedes 55330-53420iUSC10202301-202501

main55330-53380supersedes 55330-53390iUSC10201903-201911

main55330-53381supersedes 55330-53391iUSC10201912-202301

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-53070iUSC10201903

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55375-53060iUSC10201903

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55374-53030iUSC10201409-201902

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-53902-C0iUSC10201903-201912

BLACK,TRIM0#,2#,3#

main55401-53905-C0iUSC10201912-202301

BLACK,TRIM0#,2#,3#,8#

main55401-53907iUSC10202301

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-53030iUSC10201409-201902

main55419-53040iUSC10201409-201902

main55419-53090iUSC10202301

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×4iUSC10201903

main55458-53011×2iUSC10201903

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-53020-C0iUSC10201409-201508

BLACK,TRIM0#,2#,3#,4#

main55961-53040-C1iUSC10202301

BLACK,TRIM0#,2#,3#,8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-53040-C0iUSC10201409-201508

BLACK,TRIM0#,2#,3#,4#

main55962-53060-C1iUSC10202301

BLACK,TRIM0#,2#,3#,8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-53020-C0iUSC10201409-201508

BLACK,TRIM0#,2#,3#,4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-53010-C0iUSC10201409-201508

BLACK,TRIM0#,2#,3#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-53050iUSC10201409-201804

main73960-53051iUSC10201805-201902

main73960-53052iUSC10202210-202301

main73960-53081iUSC10202301

8202

9011906885

main90119-06885

9011906942

main90119-06942

9011908C98

main90119-08C98

9011908C99

main90119-08C99

9011908D04

main90119-08D04

9011908D05

main90119-08D05

9015950327

main90159-50327

9017906274

main90179-06274

9017906278

main90179-06278

9018305033

main90183-05033

9018305094

main90183-05094

9046705171

main90467-05171

9046710201

main90467-10201

9163160816

main91631-60816

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

38 parts on this diagram · 4 diagrams in section
