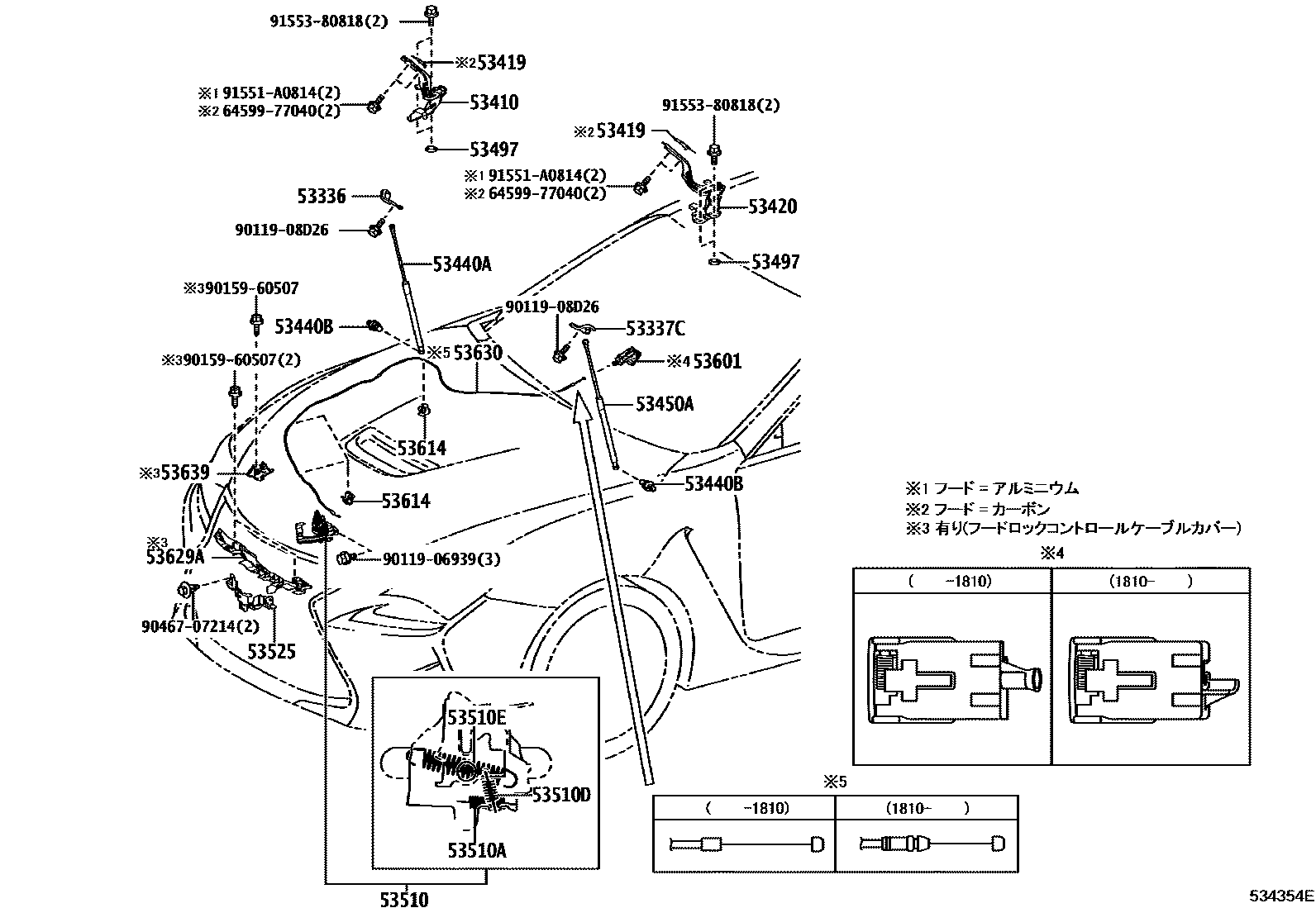

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53419SHIM, HOOD HINGE
53420HINGE ASSY, HOOD, LH
53440ASUPPORT ASSY, HOOD, RH
53440BBOLT, HOOD SUPPORT, NO.1
53450ASUPPORT ASSY, HOOD, LH
53497PAD, HOOD HINGE, NO.1
53510ASPRING, TENSION(FOR HOOD LOCK)
53510DSPRING, TENSION(FOR HOOD LOCK)
53510ESPRING, TENSION(FOR HOOD LOCK)
53525PROTECTOR, HOOD LOCK RELEASE LEVER
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,8#
53614CLAMP, HOOD LOCK CONTROL CABLE
53629ACOVER, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
53639COVER, HOOD LOCK CONTROL CABLE, NO.2
6459977040BOLT, LUGGAGE DOOR HINGE
main64599-77040
9011906939
main90119-06939
9011908D26
main90119-08D26
9015960507
main90159-60507
9046707214
main90467-07214
91551A0814
main91551-A0814
9155380818
main91553-80818
26 parts on this diagram · 1 diagram in section
