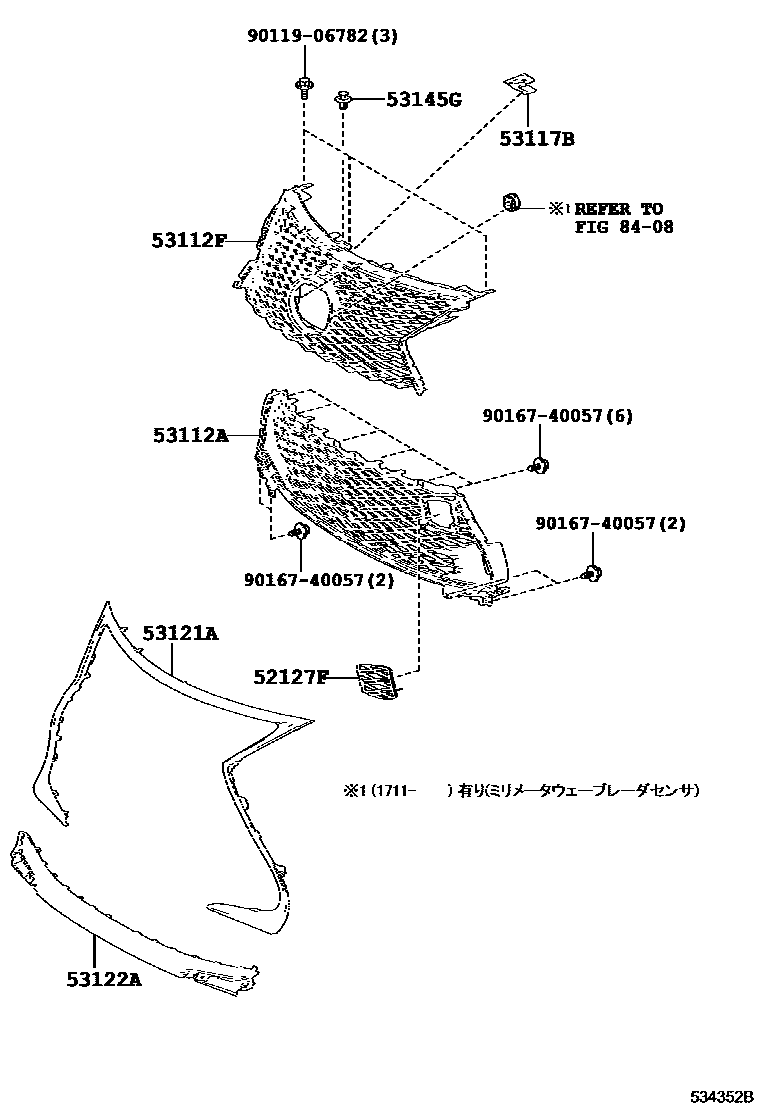

RADIATOR GRILLE

0001 1 0002 1

52127FCOVER, FRONT BUMPER HOLE

main52128-24080iUSC10201409-201902

main52128-24130iUSC10201903

53112AGRILLE, RADIATOR, LOWER

main52112-24040iUSC10201409-201902

53112FGRILLE, RADIATOR, INSIDE

main53112-24100iUSC10201409-201711

main53112-24220iUSC10201711-201902

53117BBRACKET, RADIATOR GRILLE, LOWER

main52147-24050iUSC10201409-201902

main52147-24090iUSC10201903

53121AMOULDING, RADIATOR GRILLE

main53121-24040iUSC10201409-201902

main53121-24100iUSC10201903

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-24020iUSC10201409-201902

53145GCLIP, RADIATOR GRILLE

main90467-05063-C0iUSC10201409-201902

BLACK

sub90467-05063

main90467-08229iUSC10201903

8408

9011906782

main90119-06782

9016740057

main90167-40057

10 parts on this diagram · 2 diagrams in section
