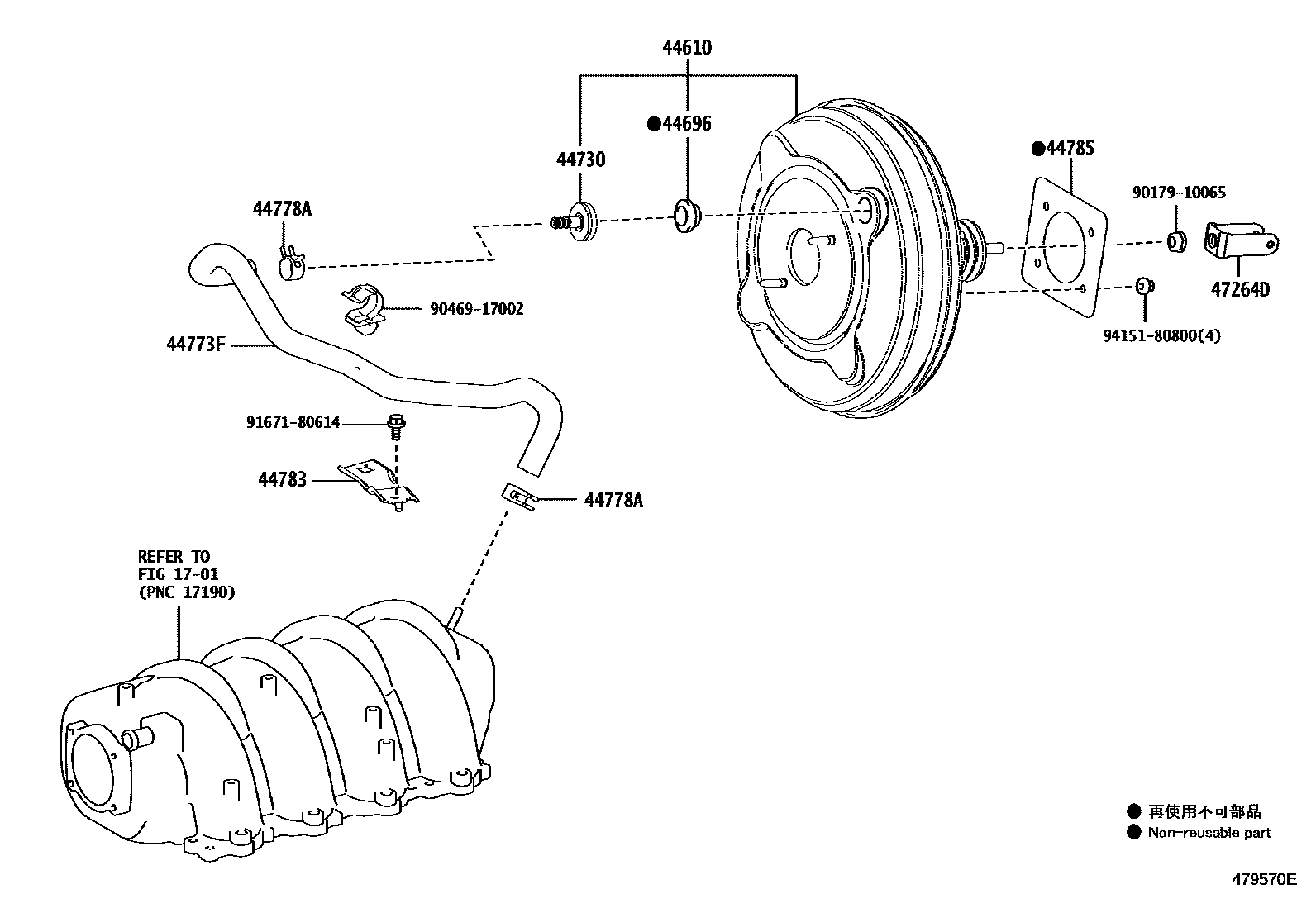

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-24140iUSC10201409-201902

main44610-24260iUSC10201903

44696GROMMET, CHECK VALVE

main90480-24015iUSC10201409-201902

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iUSC10201409-201902

44773FHOSE, UNION TO CHECK VALVE

main44773-24050iUSC10201409-201902

44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

main90467-16014iUSC10201409-201902

44783CLAMP, VACUUM HOSE

main44783-24010iUSC10201409-201902

44785GASKET, BRAKE BOOSTER

main44785-47010iUSC10201409-201902

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iUSC10201409-201902

main47264-33030iUSC10201903

9017910065

main90179-10065

9046917002

main90469-17002

9167180614

main91671-80614

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
