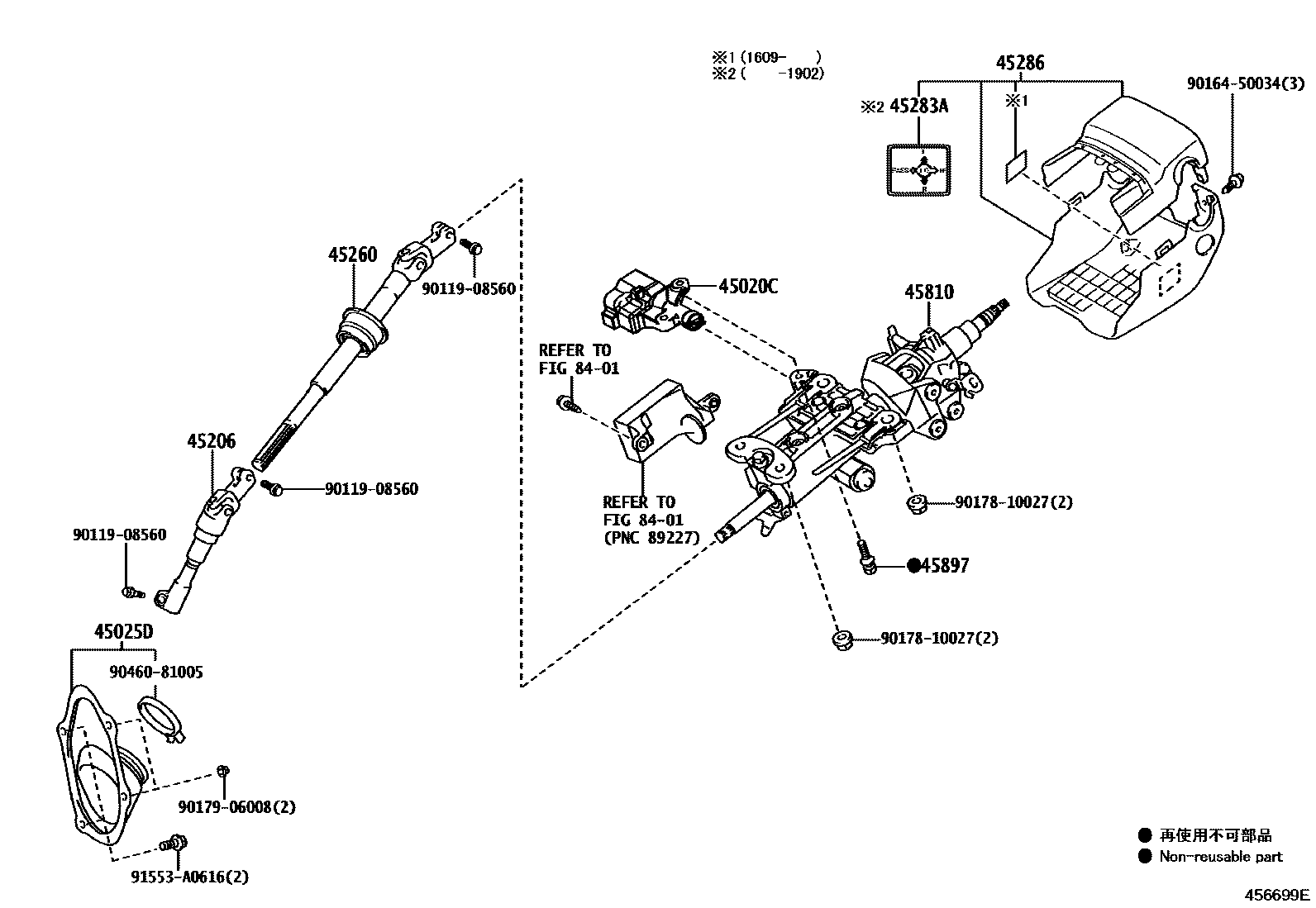

STEERING COLUMN & SHAFT

0001 1POWER TILT & TELESCOPIC 0002 1MANUAL TILT & TELESCOPIC

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B10iUSC10201409-201805

main45020-53040iUSC10201805-201902

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iUSC10201409-201902

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-24010iUSC10201409-201902

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30220iUSC10201409-201902

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iUSC10201409-201902

45286COVER, STEERING COLUMN

main45286-53915-C0iUSC10201409-201609

BLACK,TRIM0#,2#,3#,4#

main45286-53924-C0iUSC10201609-201902

BLACK,TRIM0#,2#,3#,4#,8#

main45286-53925-C0iUSC10201903

BLACK,TRIM0#,2#,3#

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-30230iUSC10201409-201902

45897BOLT, STEERING LOCK SET

main45897-12020iUSC10201409-201902

8401

9011908560

main90119-08560

9016450034

main90164-50034

9017810027

main90178-10027

9017906008

main90179-06008

9046081005

main90460-81005

91553A0616

main91553-A0616

15 parts on this diagram · 2 diagrams in section
