DISC WHEEL & WHEEL CAP

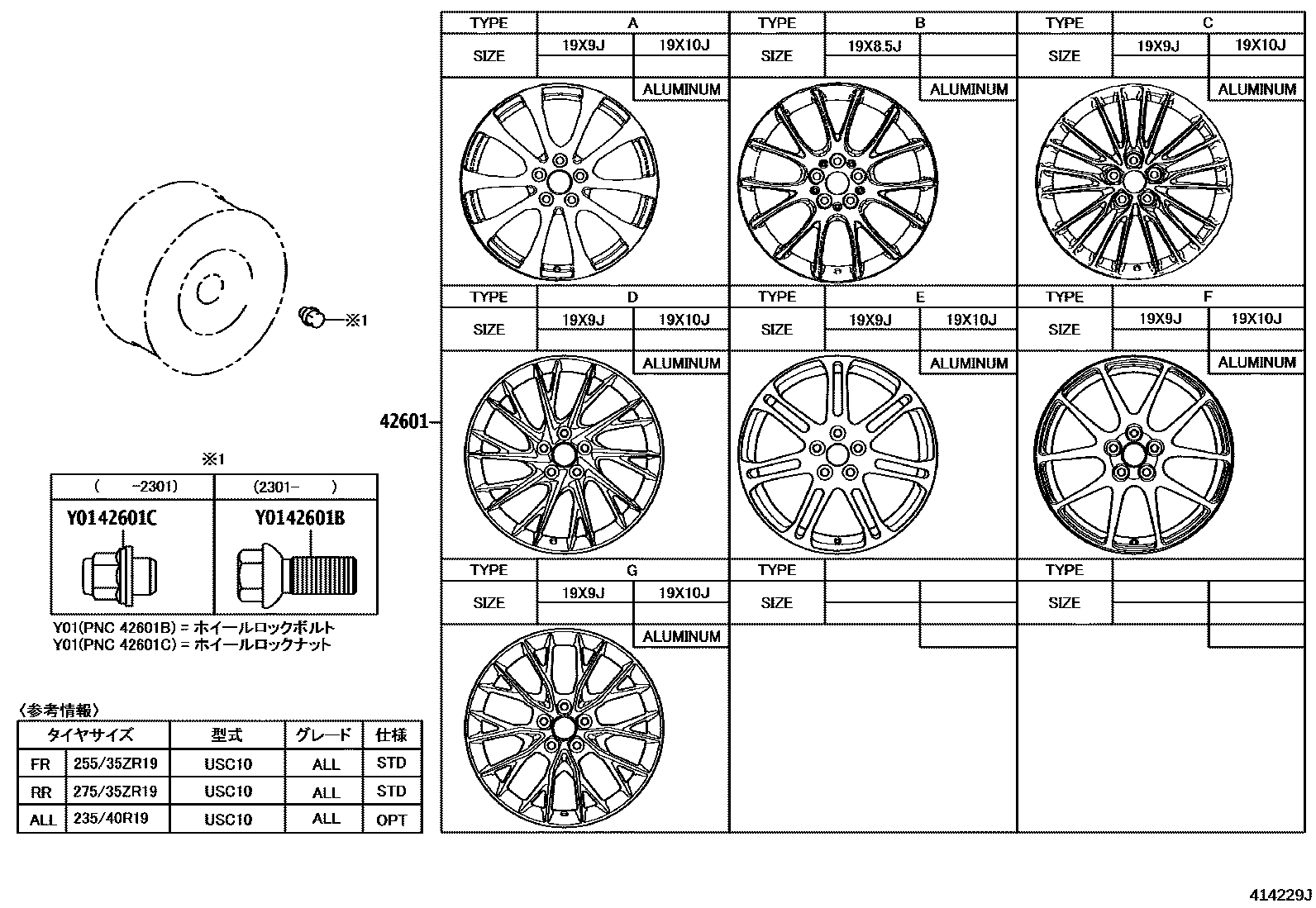

Parts diagram

42601WHEEL, DISC

main42611-24860i201609-202111

main42611-24860i201903-202111

main42611-24870i201609-202111

main42611-24A90i202301-202310

main42611-24A90i202301-202310

main42611-24B00i202301-202310

main4261A-24060i201409-201609

main4261A-24070i201409-201609

main4261A-24081i202111-202301

main4261A-24081i202111-202301

main4261A-24091i202111-202301

main4261A-24170i202310-202501

main4261A-24180i202310-202501

main4261A-24200i202501

main4261A-24210i202501

42601BBOLT, HUB (FOR AXLE)

main90942-02103i202301

42601CNUT, HUB (FOR AXLE)

main90942-01033i201409-201805

main90942-01115i201805-202301

3 parts on this diagram · 3 diagrams in section
