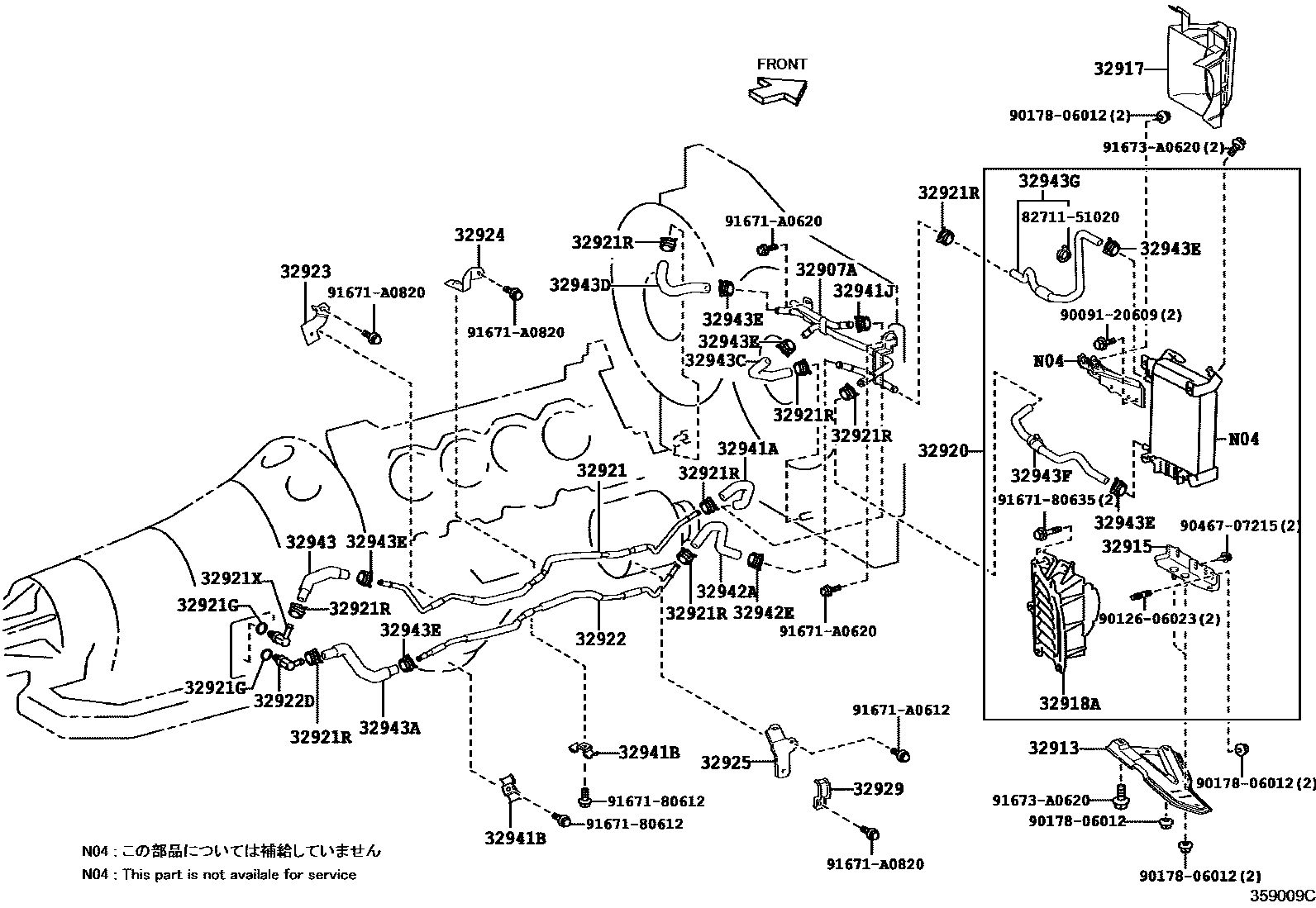

OIL COOLER & TUBE (ATM)
32907ATUBE, OIL COOLER
32913BRACKET, OIL COOLER
32915BRACKET, TRANSMISSION OIL COOLER, LWR
32918ADUCT, TRANSMISSION OIL COOLER AIR OUTLET
32921TUBE, OIL COOLER INLET, NO.1
32921GRING, O(FOR OIL COOLER TUBE UNION)
32921RCLIP, NO.2(FOR OIL COOLER HOSE)
32922TUBE, OIL COOLER OUTLET, NO.1
32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32924CLAMP, OIL COOLER TUBE, NO.2
32925CLAMP, OIL COOLER TUBE, NO.3
32929CLAMP, FLEXIBLE HOSE, NO.2
32941AHOSE, OIL COOLER INLET, NO.2
32941BCLAMP(FOR OIL COOLER TUBE)
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
32942AHOSE, OIL COOLER OUTLET, NO.2
32942ECLIP, NO.2(FOR OIL COOLER HOSE)
32943HOSE, TRANSMISSION OIL COOLER, NO.1
32943AHOSE, TRANSMISSION OIL COOLER, NO.2
32943CHOSE, TRANSMISSION OIL COOLER, NO.3
32943DHOSE, TRANSMISSION OIL COOLER, NO.4
32943ECLIP, NO.3(FOR OIL COOLER HOSE)
32943FHOSE, TRANSMISSION OIL COOLER, NO.5
32943GHOSE, TRANSMISSION OIL COOLER, NO.6
8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-51020
9009120609
main90091-20609
9012606023
main90126-06023
9017806012
main90178-06012
9046707215
main90467-07215
9167180612
main91671-80612
9167180635
main91671-80635
91671A0612
main91671-A0612
91671A0620
main91671-A0620
91671A0820
main91671-A0820
91673A0620
main91673-A0620
39 parts on this diagram · 2 diagrams in section
