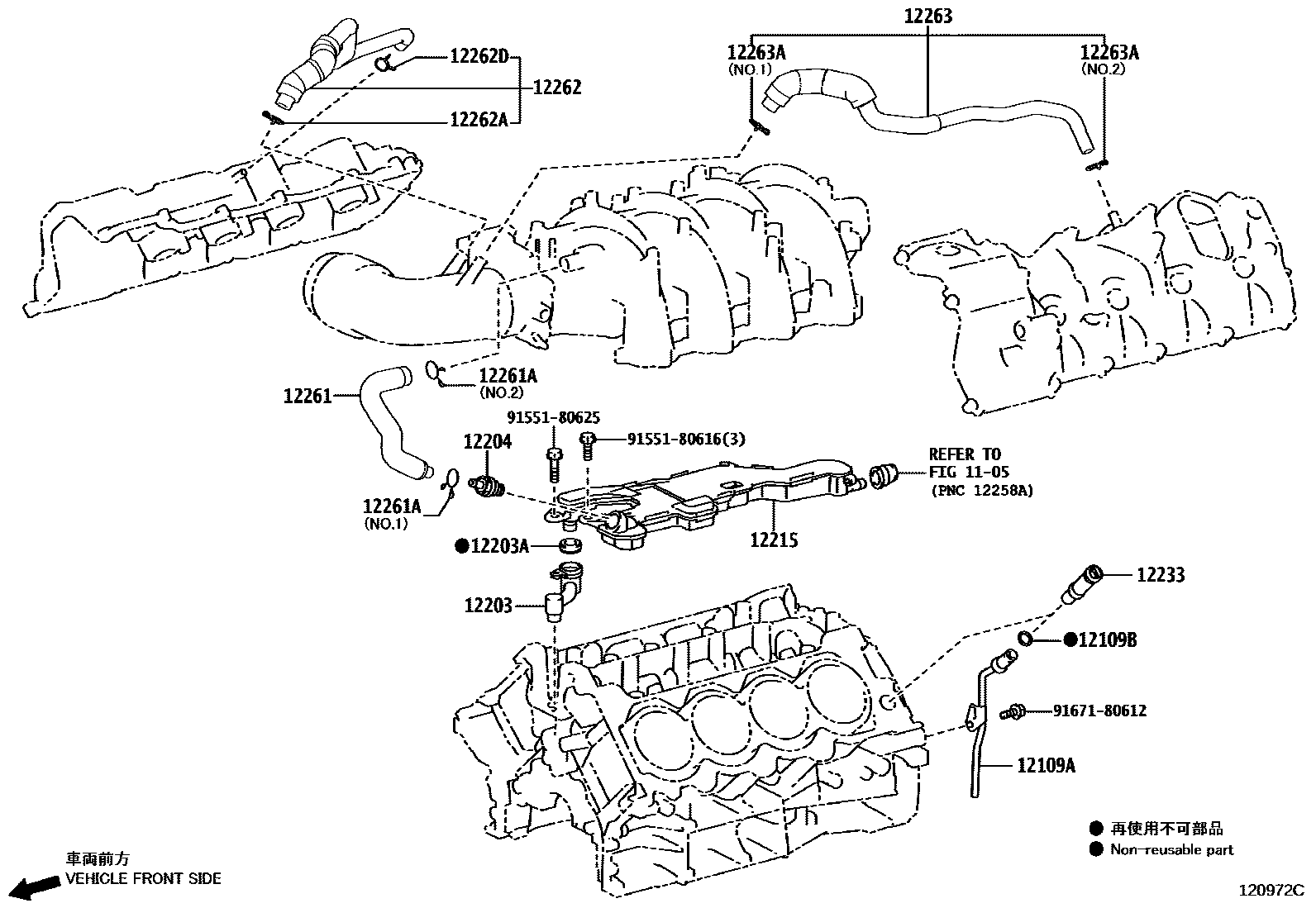

VENTILATION HOSE
1105
12109APIPE SUB-ASSY, OIL DRAIN
12109BRING, O(FOR OIL DRAIN PIPE)
12203PIPE SUB-ASSY, VENTILATION
12203AGASKET(FOR VENTILATION PIPE)
12204VALVE SUB-ASSY, VENTILATION
12215SEPARATOR, CASE
12233CONNECTOR, VENTILATION NO.1
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
12262ACLIP(FOR VENTILATION HOSE NO.2)
12262DCLIP(FOR VENTILATION HOSE NO.2)
12263ACLIP(FOR VENTILATION HOSE)
9155180616
main91551-80616
9155180625
main91551-80625
9167180612
main91671-80612
18 parts on this diagram · 1 diagram in section
