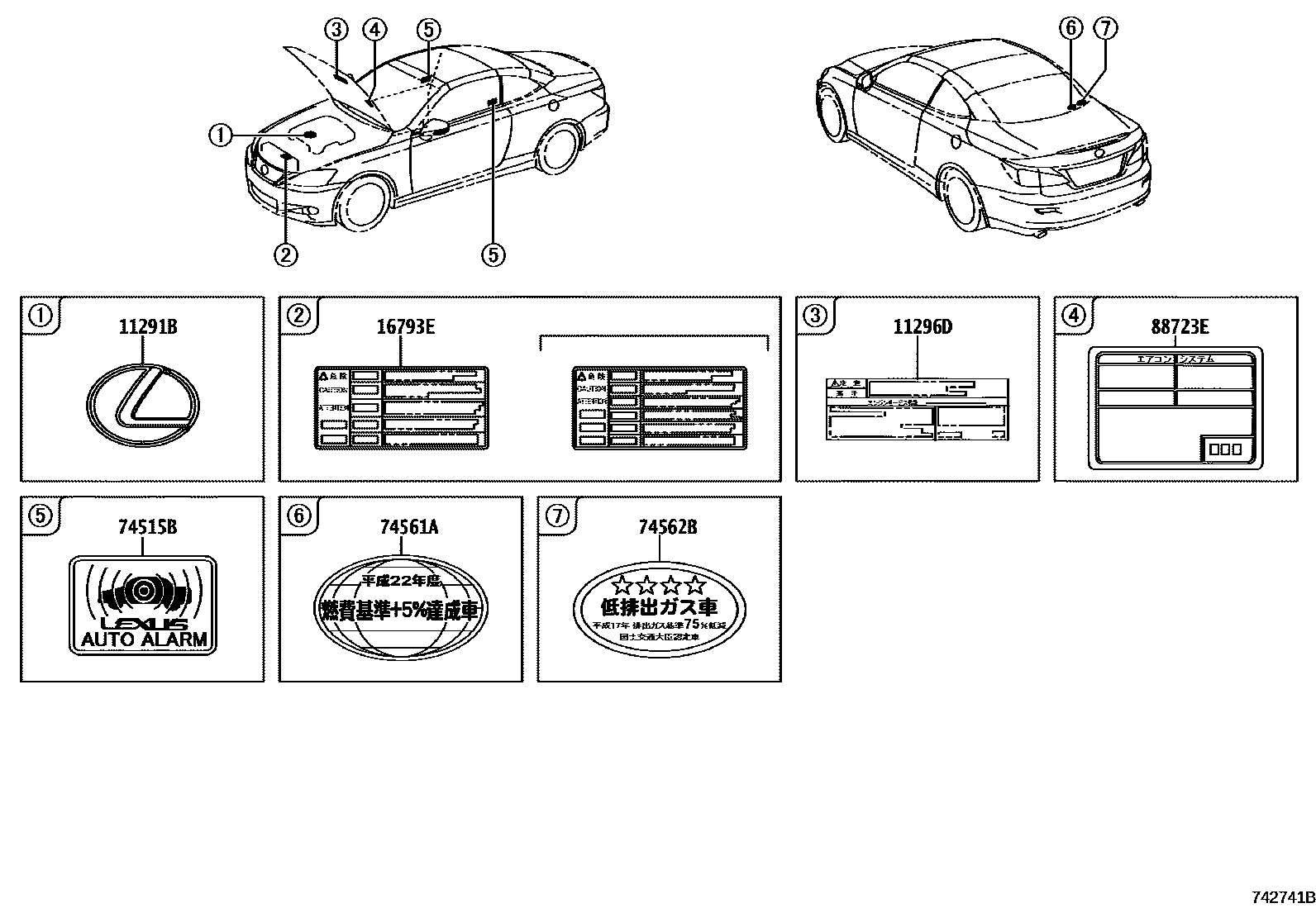

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11291BPLATE, ENGINE NAME

main11291-31040i4GRFSE..GSE20200904-201408

11296DLABEL, ENGINE SERVICE INFORMATION

main11296-31051i2GRFSE,4GRFSE..GSE2#201008-201408

sub11296-31210

main11296-31140i4GRFSE..GSE20200904-201008

sub11296-31051

16793ELABEL, COOLING FAN CAUTION

main16793-28020i2GRFSE,4GRFSE..GSE2#200904-201208

sub16793-36040

main16793-38010i2GRFSE,4GRFSE..GSE2#201208-201408

sub16793-31070

74515BPLATE, THEFT WARNING

main74515-30040iGSE2#200904-201308

74561ALABEL, FUEL CONSUMPTION INFORMATION

main74561-52020iGSE20200904-201203

74562BLABEL, EMISSION INFORMATION

main74562-47010iGSE2#200904-201408

88723ELABEL, COOLER SERVICE CAUTION

main88733-52010iGSE2#200904-201408

sub88733-52011

7 parts on this diagram · 2 diagrams in section
