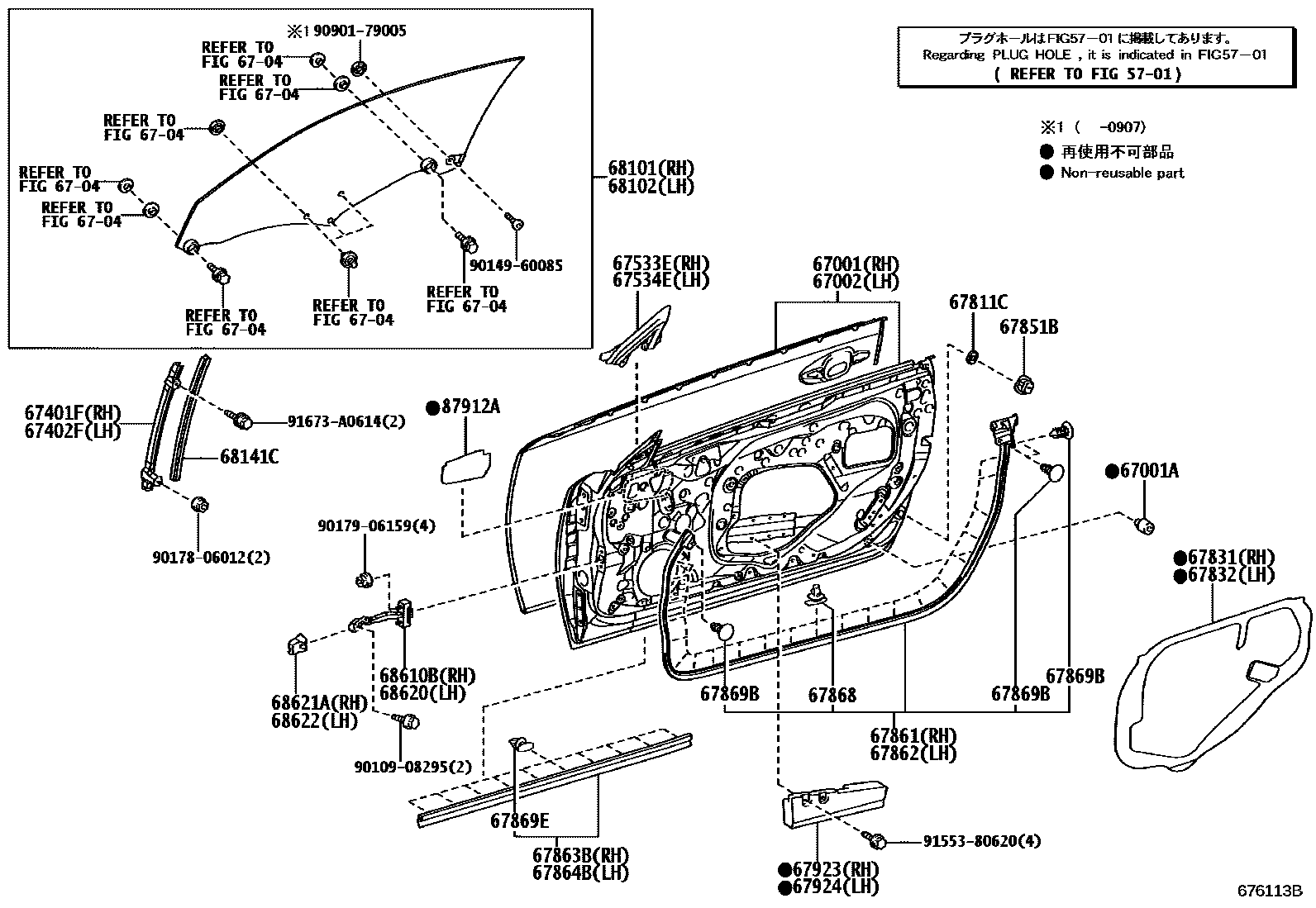

FRONT DOOR PANEL & GLASS
5701
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
6704
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67533ESEAL, FRONT DOOR DIVISION BAR, RH
67534ESEAL, FRONT DOOR DIVISION BAR, LH
67811CCOVER, FRONT DOOR HOLE
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67851BCOVER, FRONT DOOR SERVICE HOLE, NO.5
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67868CLIP, FRONT DOOR GLASS WEATHERSTRIP
67869BCLIP, FRONT DOOR WEATHERSTRIP
67869ECLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68610BCHECK ASSY, FRONT DOOR, RH
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
9010908295
main90109-08295
9014960085
main90149-60085
9017806012
main90178-06012
9017906159
main90179-06159
9090179005
main90901-79005
9155380620
main91553-80620
91673A0614
main91673-A0614
37 parts on this diagram · 2 diagrams in section
