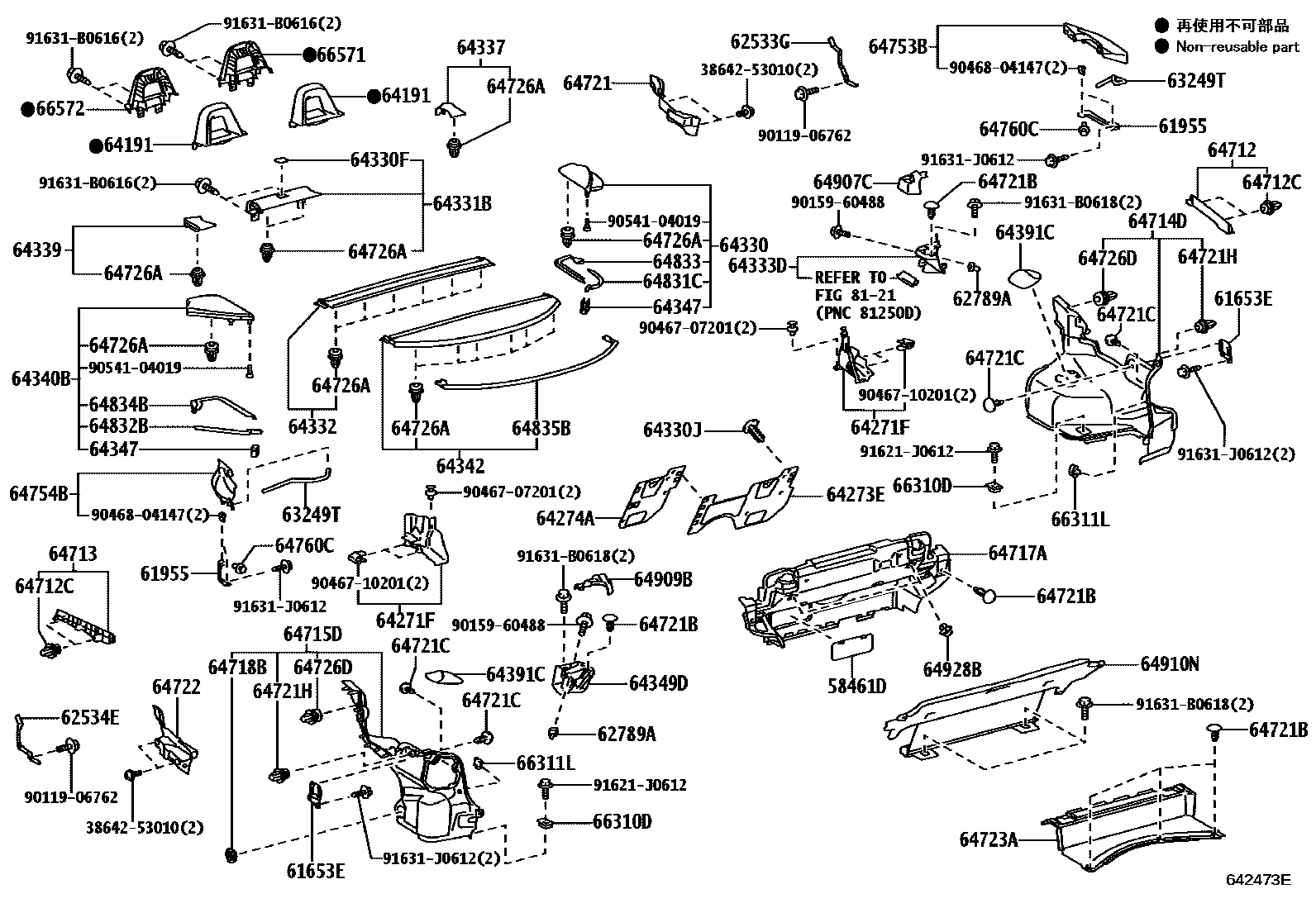

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58461DCOVER, JUNCTION BLOCK SERVICE
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
61955BRACKET, SIDE TRIM, UPPER NO.1
62533GBRACKET, QUARTER TRIM, RH
62534EBRACKET, SIDE TRIM, NO.2
62789ASPACER
63249THOSE, REMOVABLE ROOF DRAIN
64191PLATE, PACKAGE TRAY REAR END
64273EPAD, ROOM PARTITION
64274APAD, ROOM PARTITION, NO.2
64330PANEL ASSY, PACKAGE TRAY TRIM
MELLOW WHITE,TRIM0#,30,31,32
MELLOW WHITE,TRIM0#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
64330FLID SUB-ASSY, PACKAGE TRAY TRIM POCKET
MELLOW WHITE,TRIM0#
MELLOW WHITE,TRIM0#,30,31,32
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
BLACK,TRIM1#,2#,3#,4#
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64331BBOARD, PACKAGE TRAY TRIM, FRONT
MELLOW WHITE,TRIM0#,30,31,32
MELLOW WHITE,TRIM0#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
64332COVER, PACKAGE TRAY TRIM
64333DCOVER, PACKAGE TRAY TRIM SIDE, RH
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
64337GARNISH, PACKAGE TRAY TRIM, RH
MELLOW WHITE,TRIM0#,30,31,32
MELLOW WHITE,TRIM0#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
64339GARNISH, PACKAGE TRAY TRIM, LH
MELLOW WHITE,TRIM0#
MELLOW WHITE,TRIM0#,30,31,32
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
MELLOW WHITE,TRIM0#
MELLOW WHITE,TRIM0#,30,31,32
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
BLACK,TRIM1#,2#,3#,4#
64342COVER, PACKAGE TRAY TRIM, UNDER
64347RETAINER, PACKAGE TRAY TRIM EDGE SIDE
64349DCOVER, PACKAGE TRAY TRIM SIDE, LH
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
64391CCAP
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
64721CCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
64753BPLATE, REAR FLOOR FINISH SIDE, RH
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
64754BPLATE, REAR FLOOR FINISH SIDE, LH
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
64760CCLIP(FOR DECK SIDE TRIM PANEL)
64831CWEATHERSTRIP, BACK WINDOW GLASS, RH
64832BWEATHERSTRIP, BACK WINDOW GLASS, LH
64833WEATHERSTRIP, BACK WINDOW CHANNEL
MELLOW WHITE,TRIM0#,30,31,32
MELLOW WHITE,TRIM0#
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
BLACK,TRIM1#,2#,3#,4#
64834BWEATHERSTRIP, BACK WINDOW GLASS, INNER
MELLOW WHITE,TRIM0#,30,31,32
MELLOW WHITE,TRIM0#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
64835BWEATHERSTRIP, BACK WINDOW GLASS, CENTER
64907CSTOPPER SUB-ASSY, TONNEAU COVER, RH
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
64909BSTOPPER SUB-ASSY, TONNEAU COVER, LH
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
64910NCOVER ASSY, TONNEAU
64928BHOLDER, TONNEAU COVER HOOK
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
66310DHOOK ASSY, ROPE
66311LHOOK,ROPE
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
66571GARNISH, ROLL OVER, RH
MELLOW WHITE,TRIM0#,30,31,32
MELLOW WHITE,TRIM0#
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
BLACK,TRIM1#,2#,3#,4#
66572GARNISH, ROLL OVER, LH
MELLOW WHITE,TRIM0#,30,31,32
MELLOW WHITE,TRIM0#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
8121
3864253010SCREW (FOR WINCH CONTROL SWITCH)
main38642-53010
9011906762
main90119-06762
9015960488
main90159-60488
9046707201
main90467-07201
9046710201
main90467-10201
9046804147
main90468-04147
9054104019
main90541-04019
91621J0612
main91621-J0612
91631B0616
main91631-B0616
91631B0618
main91631-B0618
91631J0612
main91631-J0612
67 parts on this diagram · 2 diagrams in section
