INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

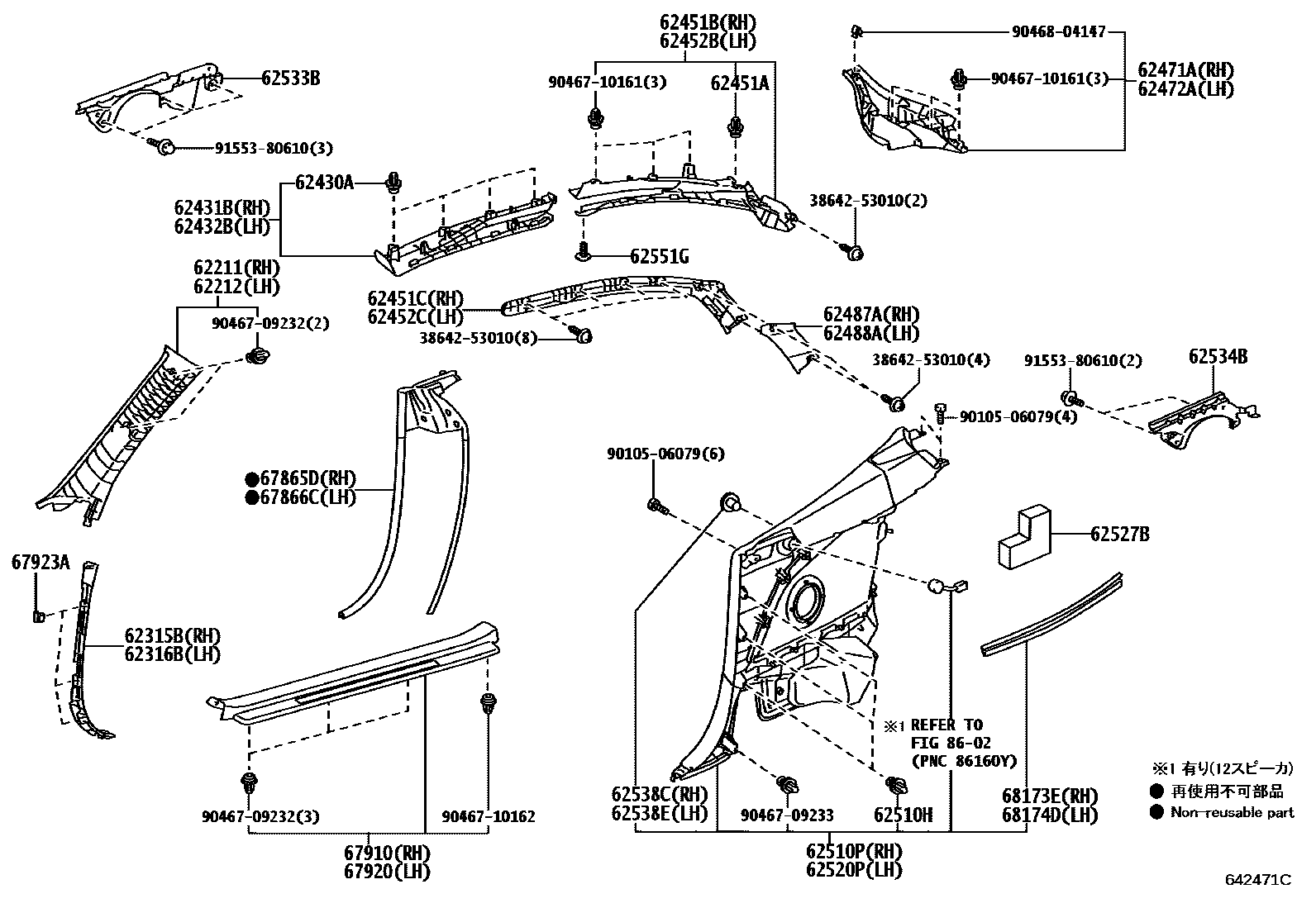

Parts diagram
62211GARNISH, FRONT PILLAR, RH
main62210-53010-A0i201008-201306
MELLOW WHITE,TRIM0#
main62210-53010-B0i201208-201306
LT.GRAY,TRIM1#,20,21,22,3#,4#
main62210-53010-C0i201208-201306
BLACK,TRIM23,39
main62210-53011-A0i201307-201408
MELLOW WHITE,TRIM0#
sub62210-53012
main62210-53011-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
sub62210-53012
main62210-53011-C0i201307-201408
BLACK,TRIM23,39
sub62210-53012
62212GARNISH, FRONT PILLAR, LH
main62220-53010-A0i200904-201306
MELLOW WHITE,TRIM0#,30,31,32
main62220-53010-B0i201208-201306
LT.GRAY,TRIM1#,20,21,22,3#,4#
main62220-53010-C0i201208-201306
BLACK,TRIM23,39
main62220-53011-A0i201307-201408
MELLOW WHITE,TRIM0#
sub62220-53012
main62220-53011-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
sub62220-53012
main62220-53011-C0i201307-201408
BLACK,TRIM23,39
sub62220-53012
62315BCOVER, FRONT DOOR OPENING TRIM, RH
main62315-53020-A0i200904-201408
MELLOW WHITE,TRIM0#
main62315-53020-C0i200904-201408
BLACK,TRIM2#,3#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
main62316-53020-A0i200904-201408
MELLOW WHITE,TRIM0#
main62316-53020-C0i200904-201408
BLACK,TRIM2#,3#
62430ACLIP, ROOF SIDE RAIL GARNISH
main90467-10161×8i200904-201408
62431BGARNISH, ROOF SIDE RAIL, NO.1 RH
main62431-53010-A0i200904-201306
MELLOW WHITE,TRIM0#,30,31,32
main62431-53010-B0i200904-201208
LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4#
main62431-53010-C0i201208-201306
BLACK,TRIM23,39
main62431-53011-A0i201307-201408
MELLOW WHITE,TRIM0#
main62431-53011-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
main62431-53011-C0i201307-201408
BLACK,TRIM23,39
62432BGARNISH, ROOF SIDE RAIL, NO.1 LH
main62432-53010-A0i200904-201306
MELLOW WHITE,TRIM0#,30,31,32
main62432-53010-B0i201208-201306
LT.GRAY,TRIM1#,20,21,22,3#,4#
main62432-53010-C0i201208-201306
BLACK,TRIM23,39
main62432-53011-A0i201307-201408
MELLOW WHITE,TRIM0#
main62432-53011-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
main62432-53011-C0i201307-201408
BLACK,TRIM23,39
62451ACLIP, SIDE GARNISH
main62217-13010×2i200904-201408
62451BGARNISH, ROOF SIDE RAIL, NO.3 RH
main62441-53010-A0i200904-201306
MELLOW WHITE,TRIM0#,30,31,32
main62441-53010-B0i201008-201208
LT.GRAY,TRIM1#,2#,3#,4#
main62441-53010-C0i201208-201306
BLACK,TRIM23,39
main62441-53011-A0i201307-201408
MELLOW WHITE,TRIM0#
main62441-53011-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
main62441-53011-C0i201307-201408
BLACK,TRIM23,39
62451CGARNISH, ROOF SIDE RAIL, REAR RH
main62451-53010-A0i200904-201306
MELLOW WHITE,TRIM0#,30,31,32
main62451-53010-B0i201008-201208
LT.GRAY,TRIM1#,2#,3#,4#
main62451-53010-C0i201208-201306
BLACK,TRIM23,39
main62451-53011-A0i201307-201408
MELLOW WHITE,TRIM0#
main62451-53011-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
main62451-53011-C0i201307-201408
BLACK,TRIM23,39
62452BGARNISH, ROOF SIDE RAIL, NO.3 LH
main62442-53010-A0i200904-201306
MELLOW WHITE,TRIM0#,30,31,32
main62442-53010-B0i201208-201306
LT.GRAY,TRIM1#,20,21,22,3#,4#
main62442-53010-C0i201208-201306
BLACK,TRIM23,39
main62442-53011-A0i201307-201408
MELLOW WHITE,TRIM0#
main62442-53011-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
main62442-53011-C0i201307-201408
BLACK,TRIM23,39
62452CGARNISH, ROOF SIDE RAIL, REAR LH
main62452-53010-A0i200904-201306
MELLOW WHITE,TRIM0#,30,31,32
main62452-53010-B0i200904-201208
LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4#
main62452-53010-C0i201208-201306
BLACK,TRIM23,39
main62452-53011-A0i201307-201408
MELLOW WHITE,TRIM0#
main62452-53011-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
main62452-53011-C0i201307-201408
BLACK,TRIM23,39
62471AGARNISH, ROOF SIDE, INNER RH
main62471-53060-A0i201008-201306
MELLOW WHITE,TRIM0#
main62471-53060-B0i200904-201208
LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4#
main62471-53060-C0i201208-201306
BLACK,TRIM23,39
main62471-53061-A0i201307-201408
MELLOW WHITE,TRIM0#
main62471-53061-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
main62471-53061-C0i201307-201408
BLACK,TRIM23,39
62472AGARNISH, ROOF SIDE, INNER LH
main62472-53060-A0i200904-201306
MELLOW WHITE,TRIM0#,30,31,32
main62472-53060-B0i200904-201208
LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4#
main62472-53060-C0i201208-201306
BLACK,TRIM23,39
main62472-53061-A0i201307-201408
MELLOW WHITE,TRIM0#
main62472-53061-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
main62472-53061-C0i201307-201408
BLACK,TRIM23,39
62487ACOVER, ROOF SIDE INNER GARNISH, RH
main62487-53010-A0i200904-201306
MELLOW WHITE,TRIM0#,30,31,32
main62487-53010-B0i201208-201306
LT.GRAY,TRIM1#,20,21,22,3#,4#
main62487-53010-C0i201208-201306
BLACK,TRIM23,39
main62487-53011-A0i201307-201408
MELLOW WHITE,TRIM0#
main62487-53011-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
main62487-53011-C0i201307-201408
BLACK,TRIM23,39
62488ACOVER, ROOF SIDE INNER GARNISH, LH
main62488-53010-A0i200904-201306
MELLOW WHITE,TRIM0#,30,31,32
main62488-53010-B0i200904-201208
LT.GRAY,TRIM1#,2#,33,34,35,36,37,38,4#
main62488-53010-C0i201208-201306
BLACK,TRIM23,39
main62488-53011-A0i201307-201408
MELLOW WHITE,TRIM0#
main62488-53011-B0i201307-201408
LT.GRAY,TRIM1#,20,21,22,36,37,38,4#
main62488-53011-C0i201307-201408
BLACK,TRIM23,39
62510HCLIP(FOR QUARTER TRIM FRONT PANEL)
main90467-09206×6i200904-201408
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62510-53010-A2i201008-201210
MELLOW WHITE,TRIM00,01,06
main62510-53010-C2i201108-201210
BLACK/RED NO.55,TRIM3#
main62510-53010-20i201210-201408
main62510-53010-A3supersedes 62510-53010-A6i201008-201210
main62510-53010-A4supersedes 62510-53010-A6i201008-201210
main62510-53010-A5supersedes 62510-53010-A6i201008-201210
main62510-53010-A7supersedes 62510-53010-A6i201210-201408
main62510-53010-A8supersedes 62510-53010-A6i201210-201408
main62510-53010-A9supersedes 62510-53010-A6i201210-201408
main62510-53010-C6i201008-201210
main62510-53010-C7i201008-201210
main62510-53010-C9i201210-201408
main62510-53020-20i201210-201408
main62510-53020-21supersedes 62510-53010-C3i201210-201408
main62510-53020-22supersedes 62510-53010-C4i201210-201408
main62510-53020-24supersedes 62510-53010-24i201308-201408
main62510-53020-A1supersedes 62510-53010-A1i200904-201008
main62510-53020-A2i201008-201208
main62510-53020-A3i201008-201208
main62510-53020-A4supersedes 62510-53010-A6i201208-201210
main62510-53020-A5supersedes 62510-53010-A6i201208-201210
main62510-53020-A6supersedes 62510-53010-A6i201210-201408
main62510-53020-A7supersedes 62510-53010-A6i201210-201408
main62510-53020-A8supersedes 62510-53010-A6i201210-201408
main62510-53020-A9supersedes 62510-53010-A6i201210-201408
main62510-53020-C0supersedes 62510-53010-C0i200904-201008
main62510-53020-C2i201208-201210
main62510-53020-C3i201208-201210
main62510-53020-C4i201008-201208
main62510-53020-C5supersedes 62510-53010-C5i201008-201108
main62510-53020-C6i201208-201210
main62510-53020-C7i201208-201210
main62510-53020-C8supersedes 62510-53010-C8i201308-201408
main62510-53020-C9i201210-201408
main62510-53030-A0i200904-201008
main62510-53030-A1i200904-201008
main62510-53030-A2i200904-201008
main62510-53030-C0i200904-201008
main62510-53030-C1i200904-201008
main62510-53030-C2i200904-201008
main62510-53040-A0i200904-201008
main62510-53040-A1i200904-201008
main62510-53040-A2i200904-201008
main62510-53040-C0i200904-201008
main62510-53040-C1i200904-201008
main62510-53040-C2i200904-201008
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62520-53010-A2i201008-201210
MELLOW WHITE,TRIM00,01,06
main62520-53010-C2i201108-201210
BLACK/RED NO.55,TRIM3#
main62520-53010-20i201210-201408
main62520-53010-A3supersedes 62520-53010-A6i201008-201210
main62520-53010-A4supersedes 62520-53010-A6i201008-201210
main62520-53010-A5supersedes 62520-53010-A6i201008-201210
main62520-53010-A7supersedes 62520-53010-A6i201210-201408
main62520-53010-A8supersedes 62520-53010-A6i201210-201408
main62520-53010-A9supersedes 62520-53010-A6i201210-201408
main62520-53010-C6i201008-201210
main62520-53010-C7i201008-201210
main62520-53010-C9i201210-201408
main62520-53020-20i201210-201408
main62520-53020-21supersedes 62520-53010-C3i201210-201408
main62520-53020-22supersedes 62520-53010-C4i201210-201408
main62520-53020-24supersedes 62520-53010-24i201308-201408
main62520-53020-A1supersedes 62520-53010-A1i200904-201008
main62520-53020-A2i201008-201208
main62520-53020-A3i201008-201208
main62520-53020-A4supersedes 62520-53010-A6i201208-201210
main62520-53020-A5i201008-201208
main62520-53020-A6supersedes 62520-53010-A6i201210-201408
main62520-53020-A7supersedes 62520-53010-A6i201210-201408
main62520-53020-A8supersedes 62520-53010-A6i201210-201408
main62520-53020-A9supersedes 62520-53010-A6i201210-201408
main62520-53020-C0supersedes 62520-53010-C0i200904-201008
main62520-53020-C2i201208-201210
main62520-53020-C3i201208-201210
main62520-53020-C4supersedes 62520-53010-C4i201008-201208
main62520-53020-C5supersedes 62520-53010-C5i201008-201108
main62520-53020-C6i201008-201208
main62520-53020-C7i201208-201210
main62520-53020-C8supersedes 62520-53010-C8i201210-201308
main62520-53020-C9i201210-201408
main62520-53030-A0i200904-201008
main62520-53030-A1i200904-201008
main62520-53030-A2i200904-201008
main62520-53030-C0i200904-201008
main62520-53030-C1i200904-201008
main62520-53030-C2i200904-201008
main62520-53040-A0i200904-201008
main62520-53040-A1i200904-201008
main62520-53040-A2i200904-201008
main62520-53040-C0i200904-201008
main62520-53040-C1i200904-201008
main62520-53040-C2i200904-201008
62527BPAD, QUARTER TRIM
main62641-53010×2i200904-201408
62533BBRACKET, QUARTER TRIM, RH
main62533-53010i200904-201408
62534BBRACKET, QUARTER TRIM, LH
main62534-53010i200904-201408
62538CCOVER, QUARTER TRIM, HOLE
main63231-53010-A0i201008-201408
MELLOW WHITE,TRIM0#
main63231-53010-C0i200904-201408
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
62538ECOVER, QUARTER TRIM, HOLE
main63232-53010-A0i200904-201408
MELLOW WHITE,TRIM0#,30,31,32
main63232-53010-C0i200904-201408
BLACK,TRIM1#,2#,33,34,35,36,37,38,39,4#
62551GCLIP
main90467-05162-A3×2i201008-201408
MELLOW WHITE,TRIM0#
main90467-05162-B2×2i201208-201408
LT.GRAY,TRIM1#,20,21,22,3#,4#
main90467-05162-C0×2i201208-201408
BLACK,TRIM23,39
67865DWEATHERSTRIP, CENTER PILLAR UPPER END, RH
main67865-53010i200904-201408
67866CWEATHERSTRIP, CENTER PILLAR UPPER END, LH
main67866-53010i200904-201408
67910PLATE ASSY, DOOR SCUFF, RH
main67910-53090-C0i200904-201306
BLACK,TRIM2#,3#
main67910-53091-C0i201307-201408
BLACK,TRIM2#
main67910-53100-A0i201008-201306
MELLOW WHITE,TRIM0#
main67910-53100-C0i201008-201306
BLACK,TRIM1#,2#,3#,4#
main67910-53101-A0supersedes 67910-53091-A0i201307-201408
MELLOW WHITE,TRIM0#
main67910-53101-C0i201307-201408
BLACK,TRIM1#,2#,3#,4#
main67910-53130-C0i201208-201306
main67910-53131-C0i201307-201408
67920PLATE ASSY, DOOR SCUFF, LH
main67920-53010-C0i200904-201306
BLACK,TRIM2#,3#
main67920-53011-C0i201307-201408
BLACK,TRIM2#
main67920-53090-A0i201008-201306
MELLOW WHITE,TRIM0#
main67920-53090-C0i201008-201306
BLACK,TRIM1#,2#,3#,4#
main67920-53091-A0supersedes 67920-53011-A0i201307-201408
MELLOW WHITE,TRIM0#
main67920-53091-C0i201307-201408
BLACK,TRIM1#,2#,3#,4#
main67920-53120-C0i201208-201306
main67920-53121-C0i201307-201408
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main62566-53010×6i200904-201408
68173EWEATHERSTRIP, QUARTER TRIM PANEL, INNER RH
main68173-53030i200904-201408
68174DWEATHERSTRIP, QUARTER TRIM PANEL, INNER LH
main68174-53030i200904-201408
8602
3864253010SCREW (FOR WINCH CONTROL SWITCH)
main38642-53010
9010506079
main90105-06079
9046709232
main90467-09232
9046709233
main90467-09233
9046710161
main90467-10161
9046710162
main90467-10162
9046804147
main90468-04147
9155380610
main91553-80610

41 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
